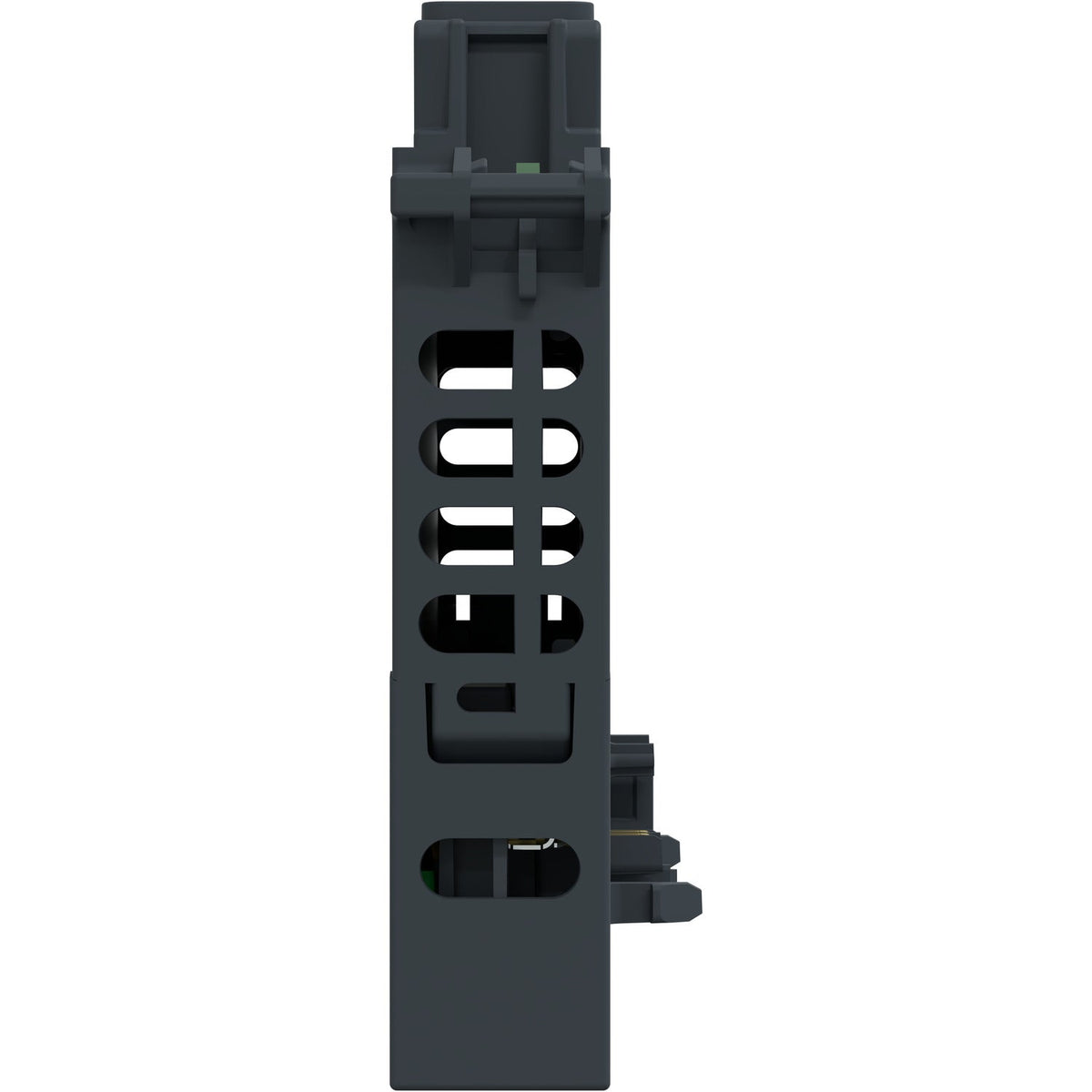

The Schneider Electric NTSDAO0205K is a Modicon Edge I/O NTS discrete output module kit with 2 triac channels switching 100...240 V AC loads, pre-assembled on its NTSXBA0100H base. Each channel wires in 1, 2 or 3-wire mode with RC snubber suppression, covering a -20...60 degC operating range. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.
The triac output on the NTSDAO0205K switches AC loads such as solenoid valves or pilot lamps directly at 100...240 V without an interposing relay, and the built-in RC snubber suppresses inductive turn-off spikes on coil loads. Paralleling two channels is supported for redundant control or doubled current, a useful option when a single triac's rating is the limiting factor. For DC-switched loads at 24 V, the NTSDDO transistor-output modules are the correct choice instead, since this module has no DC output rating.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Discrete output module kit |
| Kit composition | NTSDAO0205 module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB12_1_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Discrete output number | 2 |
| Group of output channels | 1 group |
| Discrete output voltage | 80...264 V AC |
| Operating Mode | Asynchronous |
| Discrete output number | 2 triac |
|---|---|
| Output wiring mode | 1, 2 or 3 wires |
| Discrete output frequency | 47...63 Hz |
| Response time on output | 0.5 ms turn-on, 0.5 ms turn-off |
| Maximum leakage current | 2.5 mA 240 V AC, 2 mA 120 V AC |
| Maximum voltage drop | <1.55 V AC |
| Paralleling of outputs | Yes for logic links, Yes for redundant control of load |
| Output protection type | RC snubber suppression per channel |
| Output diagnostic | External power supply error per channel |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from external power supply (100...240 Vac) |
| Rated operational voltage limits | 85...264 V AC 47...63 Hz |
| Typical current consumption | 30 mA 24 V DC on the Bus current, 0 mA 24 V DC on the internal field current |
| Electrical Connection | Screw/spring terminal block |
| Power dissipation in W | 2.36 W maximum at 24 V DC |
| Isolation between channels and bus | 3000 V AC |
| Isolation between channels and ground | 3000 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 4.6 in (116.6 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.2 in (81 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant C3 and G2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSDAO0205K |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877548 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
