Part number
NTSDAI0804K
$178.37 On request Dispatch — · From TürkiyeGet a Quote
Modicon Edge I/O NTS

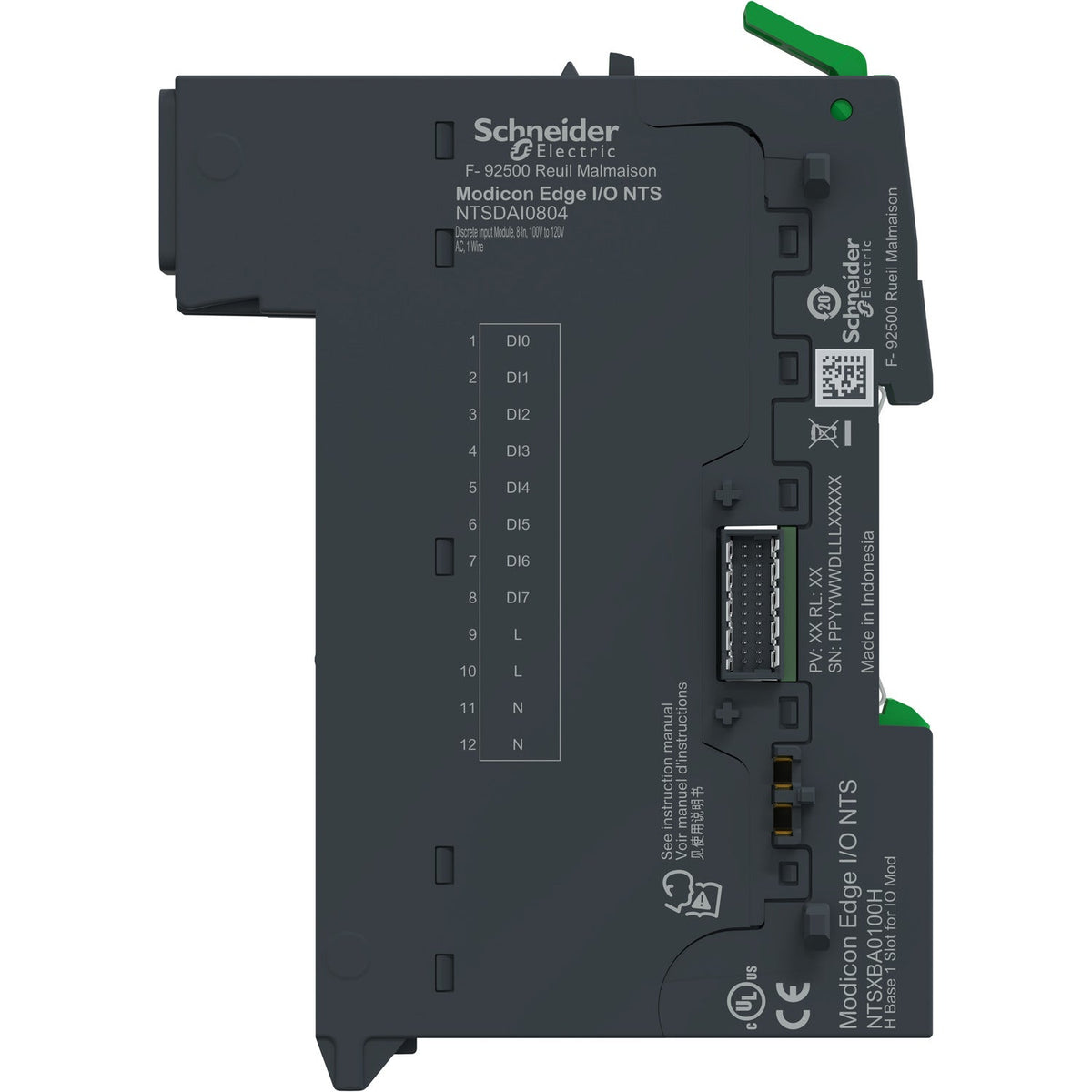

Schneider Electric NTSDAI0804K Modicon Edge I/O NTS Digital Input 8Ch 100-120VAC Remote I/O Module

Modicon Edge I/O NTS discrete input module + base, 8 channels, 100-120V AC, 1-wire sink, IP20.

Range of Product
Modicon Edge I/O NTS
Product or Component Type
Discrete input module kit
Kit composition
NTSDAI0804 module, NTSXBA0100H base
Mandatory accessory
NTSXTB12_1_H terminal block
Product Compatibility
NTSN.....
Range Compatibility
Logic/motion controller - Modicon M262, Modicon M580, Third party
EAN
3606486877531
Description

About the NTSDAI0804K

The Schneider Electric NTSDAI0804K is a Modicon Edge I/O NTS discrete input module kit with 8 channels rated for 100...120 V AC, pre-assembled on its NTSXBA0100H base. Channels wire in a single-wire sink connection for compact field terminations, covering a -20...60 degC operating range. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • RCM
  • EN/IEC 61131-2

Selection Notes

The 8-channel count on the NTSDAI0804K doubles the point density of the 4-channel NTSDAI0404HK at the same 100...120 V AC rating, which pays off on panels with many like-voltage AC inputs and limited DIN-rail space. It is the standard-environment variant, so for outdoor-adjacent or condensation-prone enclosures the hardened NTSDAI0404HK (4 channels, conformal coating, -40...70 degC) is the safer pick despite the lower channel count. The single-wire termination keeps wiring compact but means each channel shares a common return, worth confirming against the field-device wiring before specifying this module over a multi-wire alternative.

Specification

Full specification

61 values · Last verified 30 Oct 2026

Main 11

Range of Product Modicon Edge I/O NTS
Product or Component Type Discrete input module kit
Kit composition NTSDAI0804 module, NTSXBA0100H base
Mandatory accessory NTSXTB12_1_H terminal block
Product Compatibility NTSN.....
Range Compatibility Logic/motion controller - Modicon M262, Modicon M580, Third party
Device Application Industrial Application
Discrete input number 8
Group of input channels 1 group
Discrete input voltage 100...120 V AC
Operating Mode Asynchronous

Complementary 24

Discrete input compatibility 8 type 1 conforming to IEC 61131-2
Input wiring mode 1 wire
Discrete input current 6.5 mA at 120 V AC 50 Hz
Voltage state 1 guaranteed >= 79 V
Voltage state 0 guaranteed <= 20 V
Current state 1 guaranteed >= 2 mA
Current state 0 guaranteed <= 2 mA
Discrete input frequency 47...63 Hz
Response time on input 5.8 ms (on to off)
Input filtering 5.8...20 ms configurable in 0.1 ms step
Input diagnostic External power supply error per channel, Broken wire error per channel
Typical current consumption 32.4 mA 24 V DC on the Bus current, 0 mA 24 V DC on the internal field current
Electrical Connection Screw/spring terminal block
Power dissipation in W 1.33 W maximum at 24 V DC
Isolation between channels and bus 3000 V AC
Isolation between channels and ground 3000 V AC
Hot swapping fallback Yes
Local signalling 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR)
Housing Colour Grey
Mounting support Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715
Height 4.6 in (116.6 mm)
Width 0.6 in (15 mm)
Depth 3.2 in (81 mm)
Net Weight 0.161 lb(US) (0.073 kg)

Environment 13

IP Degree of Protection IP20
Marking CE, UKCA, CULus, RCM
Product certifications CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Standards EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5
Directives 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Ambient air temperature for operation -4…140 °F (-20…60 °C)
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Relative humidity 5…95 % without condensation
Operating altitude 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating
Pollution degree 2
Environmental characteristic Gas resistant C3 and G2
Vibration resistance 1 g without accessory, 2 g with accessory
Shock resistance 15 g 11 ms with and without accessory)
Show all 61 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number NTSDAI0804K
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606486877531

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.073 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for NTSDAI0804K

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
  • CCC
  • EAC
  • EN/IEC 61131-2
  • EN 61010-2-201
  • UL 61010-2-201
  • IACS E10
  • EN/IEC 61850-3
  • location G
  • EN/IEC 60079-0
  • EN 50155
  • EN 50121-4
  • EN 50121-5
Quick answers

Questions about the NTSDAI0804K

What is the HS code of NTSDAI0804K for customs?

The tariff (HS) code on file for NTSDAI0804K is 853710.

What is the EAN of NTSDAI0804K?

The EAN (GTIN) of NTSDAI0804K is 3606486877531.

Where does NTSDAI0804K ship from, and how fast?

NTSDAI0804K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
