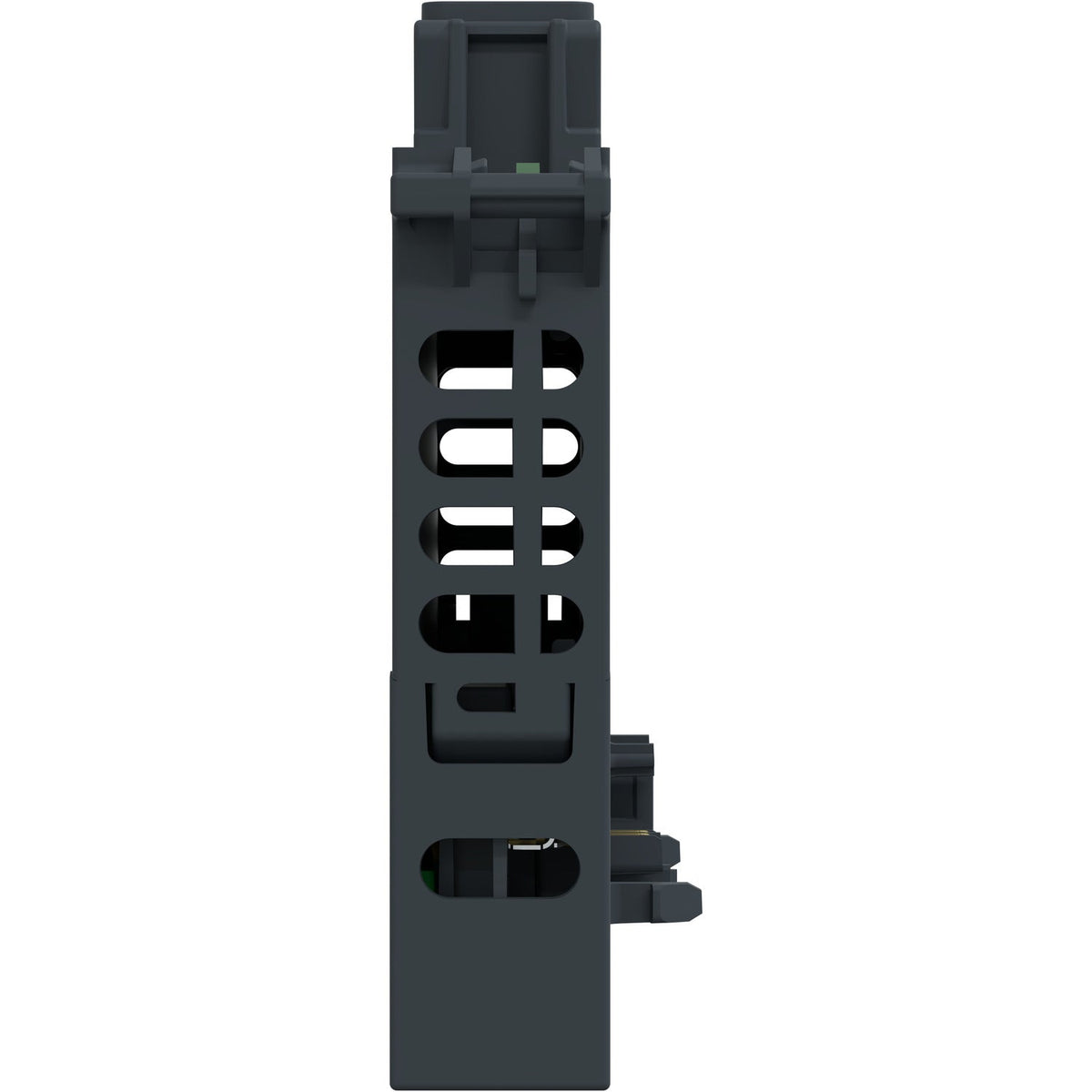

The Schneider Electric NTSDAI0404HK is a Modicon Edge I/O NTS discrete input module kit with 4 channels rated for 100...120 V AC, pre-assembled on its NTSXBA0100H base for severe-environment use. Channels wire in a 1 or 2-wire sink connection and run across an extended -40...70 degC range with conformal-coated electronics. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.
The 100...120 V AC rating on the NTSDAI0404HK matches field devices wired to a single-phase line voltage common in North American and Japanese panels, where the 240 V-rated NTSDAI0215HK would be the wrong fit. The hardened build adds conformal coating and the extended -40...70 degC range over a standard K-suffix module, which matters in panels exposed to condensation or wide ambient swings. With only 1 or 2-wire connections supported (no 3-wire shielded option), it is best suited to short local wiring runs rather than long field cable pulls.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Discrete input module kit |
| Kit composition | NTSDAI0404H module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB12_1_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial application in severe environment |
| Discrete input number | 4 |
| Group of input channels | 1 group |
| Discrete input voltage | 100...120 V AC |
| Operating Mode | Asynchronous |
| Discrete input compatibility | 4 type 1 conforming to IEC 61131-2 |
|---|---|
| Input wiring mode | 1 or 2 wires |
| Discrete input current | 6.7 mA at 120 V AC 50 Hz |
| Voltage state 1 guaranteed | >= 79 V |
| Voltage state 0 guaranteed | <= 20 V |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 2 mA |
| Discrete input frequency | 47...63 Hz |
| Response time on input | 5.8 ms (on to off) |
| Input filtering | 5.8...20 ms configurable in 0.1 ms step |
| Input diagnostic | External power supply error per channel, Broken wire error per channel |
| Rated operational voltage limits | 85...138 V AC 47...63 Hz |
| Typical current consumption | 30 mA 24 V DC on the Bus current, 0 mA 24 V DC on the internal field current |
| Electrical Connection | Screw/spring terminal block |
| Power dissipation in W | 1.02 W maximum at 24 V DC |
| Isolation between channels and bus | 3000 V AC |
| Isolation between channels and ground | 3000 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 4.6 in (116.6 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.2 in (81 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | Conformal coating |
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant CX & GX combined, Salt spray resistant |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSDAI0404HK |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877524 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for NTSDAI0404HK is 853710.
The EAN (GTIN) of NTSDAI0404HK is 3606486877524.
NTSDAI0404HK ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
