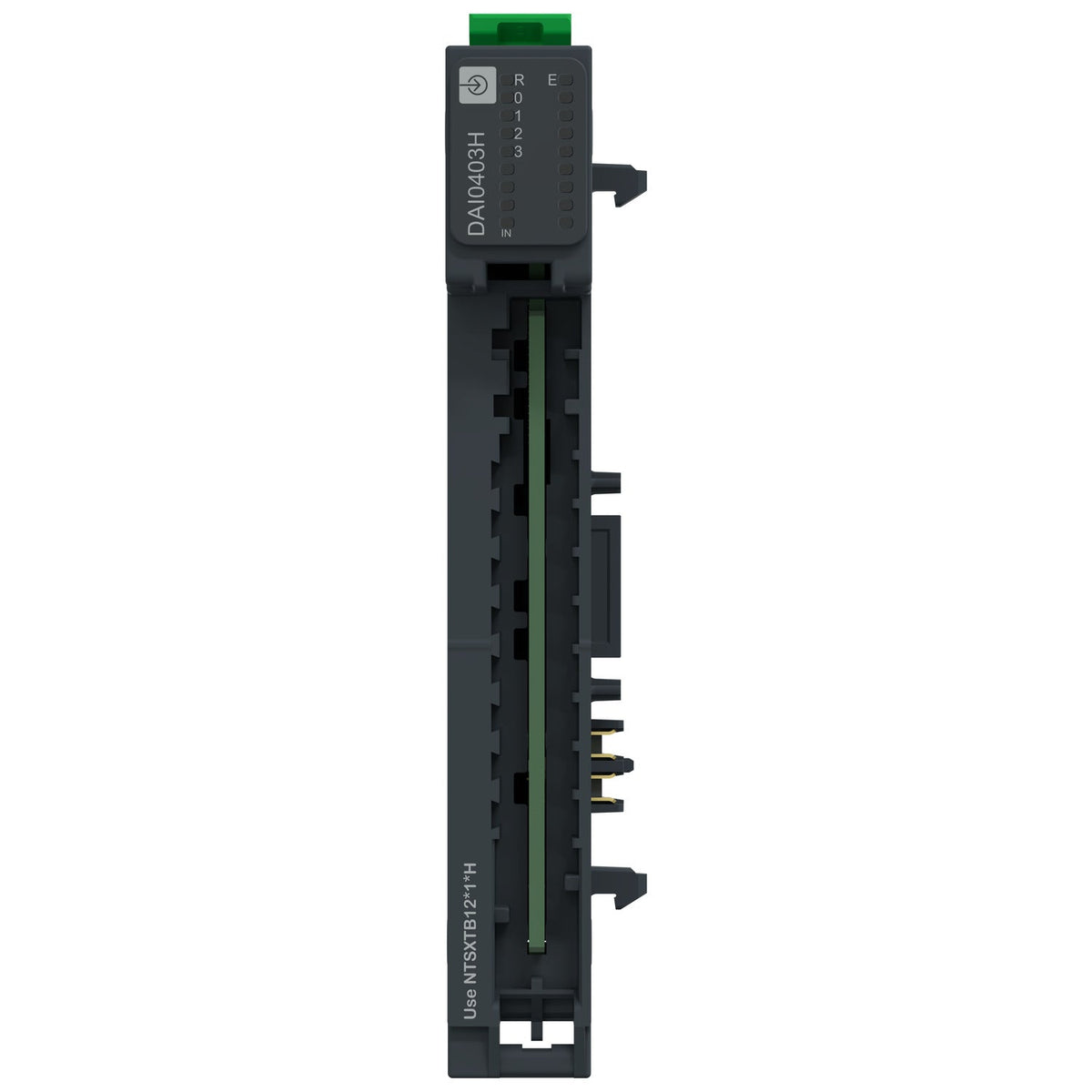

The Schneider Electric NTSDAI0403HK is a Modicon Edge I/O NTS discrete input module kit with 4 inputs rated for 24 V AC or 48 V AC/DC, pre-assembled on its NTSXBA0100H base for severe-environment use. Channels wire in 1, 2 or 3-wire sink mode and run across an extended -40...70 degC range with conformal-coated electronics. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.
The dual AC/DC rating on the NTSDAI0403HK means the same 4 channels accept 24 V AC pilot signals or 48 V DC/AC field contacts without changing hardware, useful when a panel standardizes on one module across mixed-voltage zones. Choose the 100...240 V AC NTSDAI0215HK instead for line-level inputs, or a plain 24 V DC NTSDDI module when the field devices are all low-voltage DC. The fixed 9.28 ms filter is not adjustable on this variant, so it is better suited to steady-state limit-switch signals than to fast pulse counting.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Discrete input module kit |
| Kit composition | NTSDAI0403H module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB12_1_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial application in severe environment |
| Discrete input number | 4 |
| Group of input channels | 1 group |
| Discrete input voltage | 24 V AC, 48 V AC/DC |
| Operating Mode | Asynchronous |
| Discrete input compatibility | 4 type 1 conforming to IEC 61131-2 |
|---|---|
| Input wiring mode | 1, 2 or 3 wires |
| Discrete input current | 2.6 mA |
| Voltage state 1 guaranteed | For 48 V AC >= 34 V AC, For 24 V AC >= 14 V AC, For 48 V DC >= 34 V DC |
| Voltage state 0 guaranteed | <= 10 V AC for 48 V AC, <= 5 V AC for 24 V AC, <= 10 V DC for 48 V DC |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 2 mA |
| Discrete input frequency | 47...63 Hz |
| Response time on input | 9.8 ms (fixed), 5.8 ms (on to off) |
| Input filtering | 9.28 ms (fixed) |
| Input diagnostic | External power supply error per channel, Broken wire error per channel |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from external power supply (24 Vac, 48 Vac or 48 Vdc) |
| Rated operational voltage limits | 19.2...60 V DC, 19.2...55.2 V AC 47...63 Hz |
| Typical current consumption | 30 mA 24 V DC on the Bus current, 0 mA 24 V DC on the internal field current |
| Electrical Connection | Screw/spring terminal block |
| Power dissipation in W | 1.51 W maximum at 24 V DC |
| Isolation between channels and bus | 3000 V AC |
| Isolation between channels and ground | 3000 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 4.6 in (116.6 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.2 in (81 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | Conformal coating |
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant CX & GX combined, Salt spray resistant |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSDAI0403HK |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877517 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
