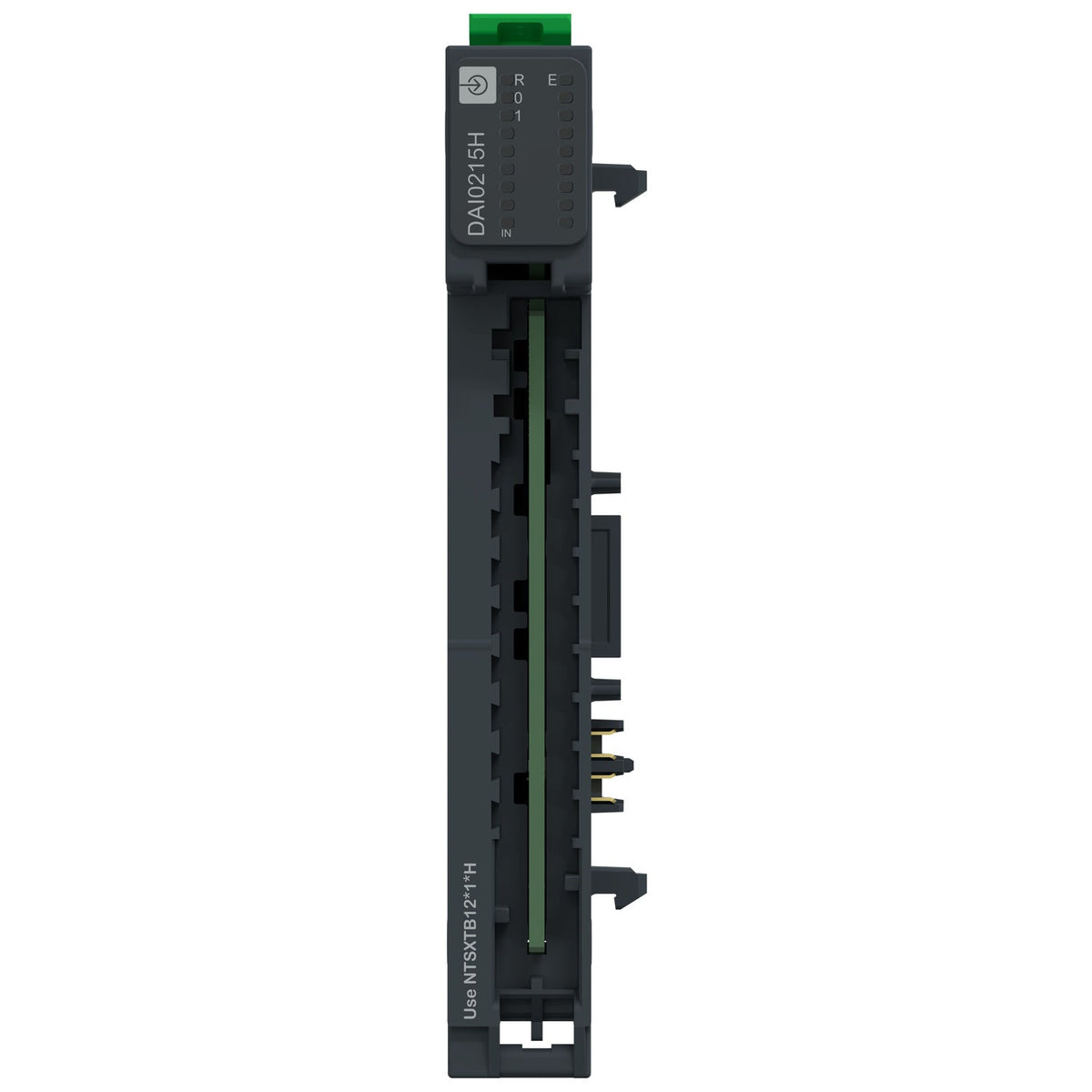

The Schneider Electric NTSDAI0215HK is a Modicon Edge I/O NTS discrete input module kit with 2 isolated 100...240 V AC inputs, pre-assembled on its NTSXBA0100H base for severe-environment use. Each channel wires in 1, 2 or 3-wire mode and runs across an extended -40...70 degC range with conformal coating on the electronics. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.
The 100...240 V AC input range on the NTSDAI0215HK suits field devices wired directly to line-level AC signals, such as limit switches or mains-referenced pilot contacts, without a separate 24 V DC interposing relay. The hardened build (conformal coating, -40...70 degC) is the right choice over a standard K-suffix module when the panel sees condensation, vibration, or outdoor-adjacent ambient swings; pick the non-hardened variant only when the enclosure is already climate-controlled. The 1780 V AC inter-channel isolation lets the two inputs reference different AC circuits safely, a property worth checking against the wiring diagram before specifying a lower-isolation DC input module for the same point count.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Discrete input module kit |
| Kit composition | NTSDAI0215H module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB12_1_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial application in severe environment |
| Discrete input number | 2 |
| Group of input channels | 2 groups of 1 channel |
| Discrete input voltage | 100...240 V AC |
| Operating Mode | Asynchronous |
| Discrete input compatibility | 2 type 1 conforming to IEC 61131-2 |
|---|---|
| Input wiring mode | 1, 2 or 3 wires |
| Discrete input current | 3.6 mA at 120 V AC 50 Hz, 7.1 mA at 230 V AC 50 Hz |
| Voltage state 1 guaranteed | >= 79 V |
| Voltage state 0 guaranteed | <= 40 V |
| Current state 1 guaranteed | >= 2 mA |
| Discrete input frequency | 47...63 Hz |
| Response time on input | 5.8 ms (on to off) |
| Input filtering | 5.8...20 ms configurable in 0.1 ms step |
| Input diagnostic | External power supply error per channel, Broken wire error per channel |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from external power supply (100...240 Vac) |
| Rated operational voltage limits | 85...264 V AC 47...63 Hz |
| Typical current consumption | 26.4 mA 24 V DC on the Bus current, 0 mA 24 V DC on the internal field current |
| Electrical Connection | Screw/spring terminal block |
| Power dissipation in W | 1.17 W maximum at 24 V DC |
| Isolation between channels | 1780 V AC |
| Isolation between channels and bus | 3000 V AC |
| Isolation between channels and ground | 3000 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR) |
| Housing Colour | Grey |
| Height | 4.6 in (116.6 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.2 in (81 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | Conformal coating |
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant CX & GX combined, Salt spray resistant |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSDAI0215HK |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877500 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
