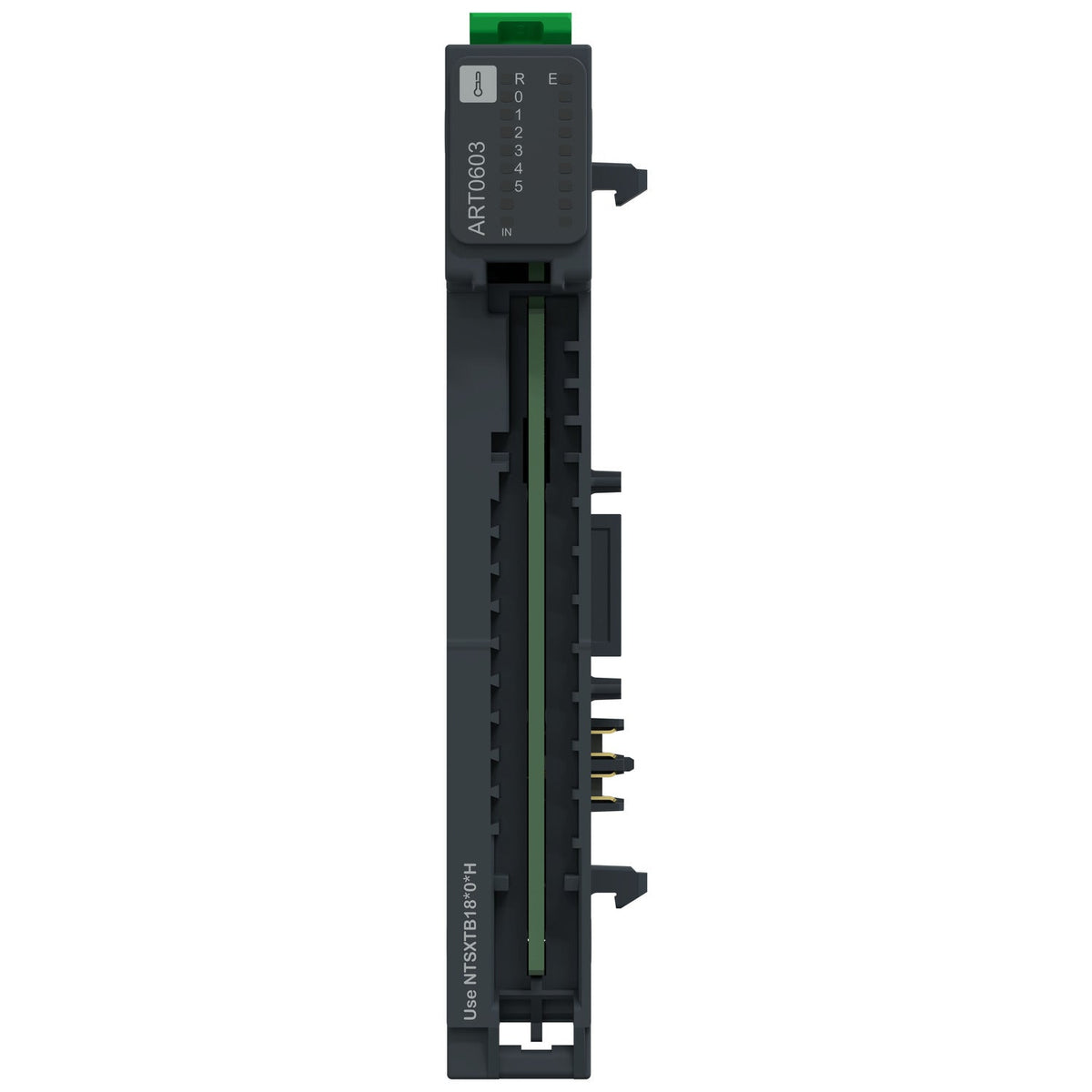

The Schneider Electric NTSART0603K is a Modicon Edge I/O NTS temperature input module kit with 6 differential inputs and 16-bit resolution, pre-assembled on its NTSXBA0100H base. Each channel accepts RTD, thermistor (PTC/NTC) or resistance signals over a 2 or 3-wire connection, covering a -40...70 degC operating range. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.
The 6-channel density of the NTSART0603K fits applications with many like-type sensors, such as a bearing-temperature array on a motor or gearbox, where every channel shares the same differential wiring scheme. Pick the 2-channel NTSART0214K instead when the application mixes thermocouples with RTDs or needs per-channel 530 V AC isolation between sensors on different reference grounds, since this module's inputs are differential rather than fully isolated. The short-time sampling mode trades accuracy (0.08% FS vs 0.05% FS) for faster channel-to-channel switching, a choice worth making only if the control loop actually needs the shorter cycle.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Temperature input module kit |
| Kit composition | NTSART0603 module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB18_0_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Analogue input number | 6 |
| Operating Mode | Asynchronous |
| Analogue input type | RTD Ni 100/Ni 1000, RTD Pt 100/Pt 1000, RTD Cu 10/50/100, RTD JPt 100/1000, RTD high precision Cu50/100, Ni100/1000, Pt100/1000, Resistor 100 Ohm...32 kOhm, Thermistor PTC 100 Ohm...10 kOhm, Thermistor NTC 100 Ohm...200 kOhm |
|---|---|
| input signal type | Differential |
| Input wiring mode | 2, 3 or 4 wires for RTD and resistance inputs, 2-wire for thermistor NTC/PTC inputs |
| Analogue input resolution | 16 bits with overflow |
| Permitted overload on inputs | +/- 2.4 % over voltage range |
| Input impedance | 1 MOhm typical |
| Sampling duration | 60 ms at 50Hz rejection per channel, 60 ms at 60Hz rejection per channel, 40 ms channel switch time with short time sampling, 140 ms channel switch time with long time sampling |
| Input protection type | Over voltage protection |
| Input diagnostic | Underflow error per channel, Overflow error per channel, Broken wire error per channel, Hardware error per channel, Calibration error per channel, Internal field power supply error per channel |
| Type of Cable | Shielded cable |
| Temperature drift | ± 0.003 % FS/ °C |
| Measurement error | <= 0.08 % FS 25 °C (short time sampling), <= 0.05 % FS 25 °C (long time sampling), <= 0.14 % FS -20...60 °C (short time sampling), <= 0.10 % FS -20...60 °C (short time sampling) |
| Non-linearity | <= 0.01 % FS voltage/resistive input, <= 0.01 % FS thermistor, <= 0.01 % FS RTD |
| Common mode rejection | 100 dB |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc) |
| Rated operational voltage limits | 20.4...28.8 V DC |
| Typical current consumption | 36 mA 24 V DC on the Bus current, 25.2 mA 24 V DC on the internal field current minimum, 30.2 mA 24 V DC on the internal field current maximum |
| Power dissipation in W | 1.6 W maximum at 24 V DC |
| Maximum cable distance between devices | Shielded cable <656.2 ft (200 m) |
| Isolation between channels and bus | 1500 V AC |
| Isolation between channels and field pwr | 1000 V AC |
| Isolation between field power and bus | 1500 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 4.6 in (116.6 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.2 in (81 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m), 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant C3 and G2, Salt spray resistant |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSART0603K |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877470 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
