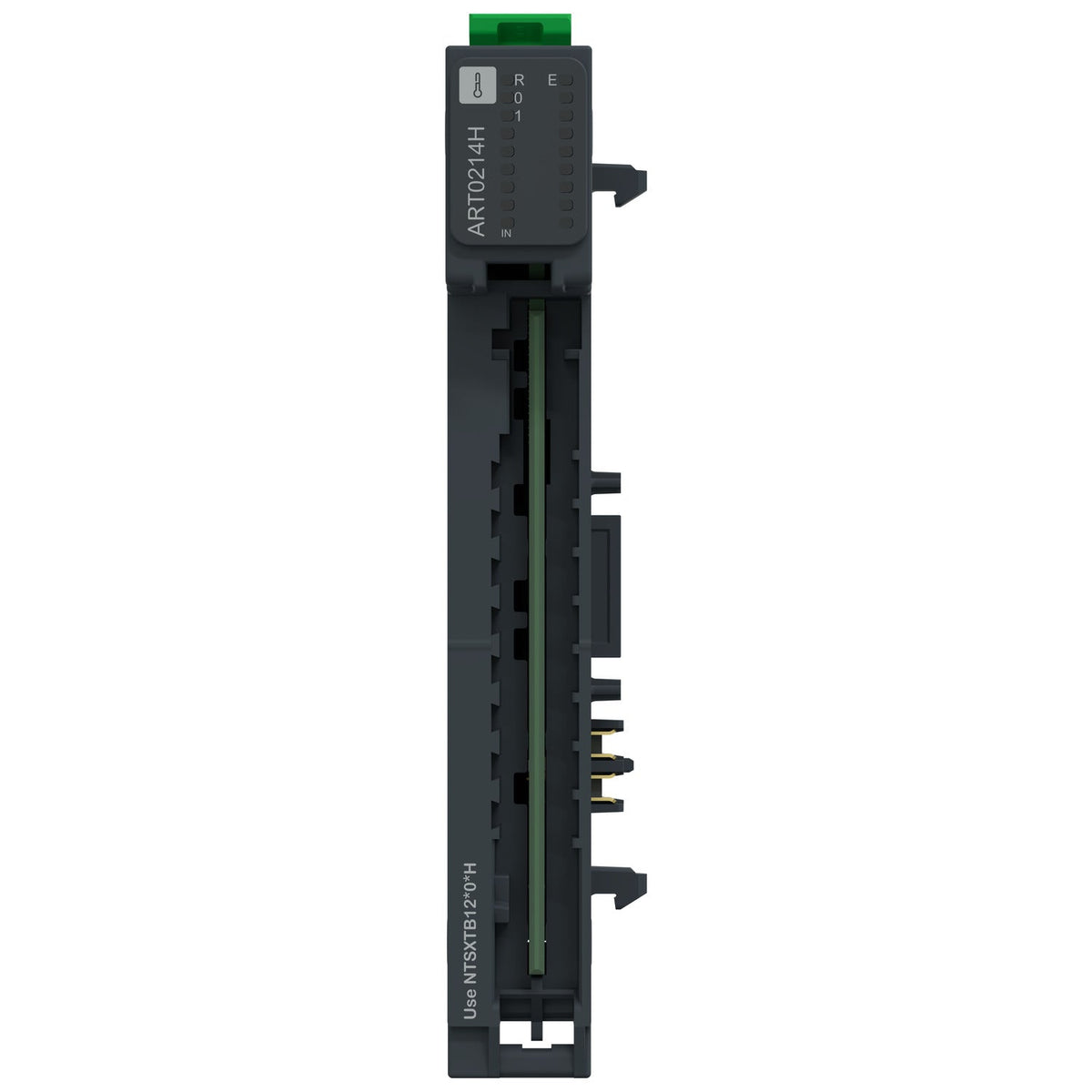

The Schneider Electric NTSART0214HK is a hardened Modicon Edge I/O NTS temperature input kit with the NTSART0214H module pre-assembled on its base. It reads 2 isolated channels from RTD, thermocouple, voltage or resistance sensors over a 2, 3 or 4-wire connection, and extends the operating range to -40...70 degrees Celsius with conformal coating on the electronics. It runs on 24 V DC bus and field power at IP20.
Choose the NTSART0214HK where RTD or thermocouple temperature sensing is needed in a cabinet that itself sees extreme temperatures — the hardened rating and conformal coating protect the module, not just the measurement accuracy of the sensor loop. The 2/3/4-wire input wiring covers both 2-wire resistance measurement and the more accurate 3- or 4-wire RTD connection without changing modules; channel-to-channel isolation at 530 V keeps one sensor loop's noise off the other.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Temperature input module kit |
| Kit composition | NTSART0214H module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB12_0_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Analogue input number | 2 |
| Operating Mode | Asynchronous |
| Analogue input type | Voltage +/- 40 mV, Voltage +/- 80 mV, Voltage +/- 160 mV, Voltage +/- 320 mV, Voltage +/- 640 mV, Voltage +/- 1.28 V, RTD Ni 100/Ni 1000, RTD Pt 100/Pt 1000 |
|---|---|
| input signal type | Differential |
| Input protection type | Over voltage protection |
| Type of Cable | Shielded cable |
| Measurement error | <= 0.05 % FS 25 °C |
| Common mode rejection | 100 dB |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc) |
| Rated operational voltage limits | 20.4...28.8 V |
| Typical current consumption | 36 mA 24 V DC on the Bus current, 16.8 mA 24 V DC on the internal field current minimum, 20.2 mA 24 V DC on the internal field current maximum |
| Power dissipation in W | 1.4 W maximum at 24 V DC |
| Isolation between channels | 530 V AC |
| Isolation between channels and bus | 1500 V AC |
| Isolation between channels and field pwr | 1000 V AC |
| Isolation between field power and bus | 1500 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 4.6 in (116.6 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.2 in (81 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m), 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant CX & GX combined, Salt spray resistant |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSART0214HK |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877432 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for NTSART0214HK is 853710.
The EAN (GTIN) of NTSART0214HK is 3606486877432.
NTSART0214HK ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
