Part number
NTSAMO0400HK
$373.18 On request Dispatch — · From TürkiyeGet a Quote
Modicon Edge I/O NTS

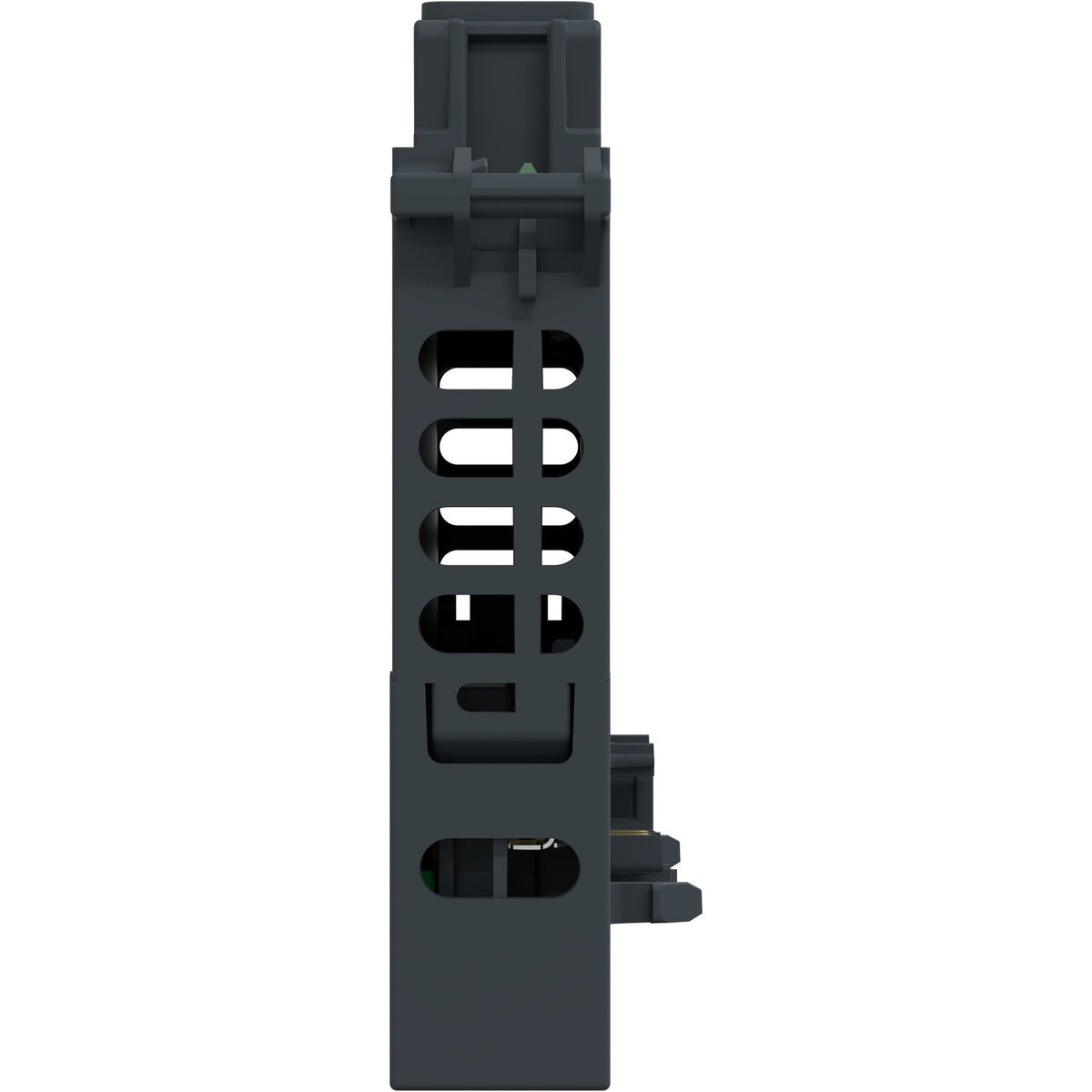

Schneider Electric NTSAMO0400HK Modicon Edge I/O NTS Analog Output Module Hardened with Base Remote I/O Module

Modicon Edge I/O NTS analog output module kit (module + base), 24V DC, IP20, DIN rail.

Range of Product
Modicon Edge I/O NTS
Product or Component Type
Analog output module kit
Kit composition
NTSAMO0400H module, NTSXBA0100H base
Mandatory accessory
NTSXTB12_0_H terminal block
Product Compatibility
NTSN.....
Range Compatibility
Logic/motion controller - Modicon M262, Modicon M580, Third party
EAN
3606486877418
Description

About the NTSAMO0400HK

The Schneider Electric NTSAMO0400HK is a hardened Modicon Edge I/O NTS analog output kit with the NTSAMO0400H module pre-assembled on its base. It drives 4 current or voltage outputs over a 2-wire connection, tolerates HART superimposed signals, and extends the operating range to -40...70 degrees Celsius with conformal coating on the electronics. It runs on 24 V DC bus and field power at IP20.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • RCM
  • IEC 61131-2

Selection Notes

Choose the NTSAMO0400HK where 4 output channels and extended -40...70 °C hardening are both needed in one kit — outdoor skids, unheated rooms, or cabinets without climate control. Where only 2 output channels are needed, the 2-channel hardened kit in the same range frees up channel capacity without changing the environmental rating; where the enclosure stays within -20...60 °C, the standard 4-channel kit skips the conformal coating at the same output specification.

Specification

Full specification

62 values · Last verified 30 Oct 2026

Main 9

Range of Product Modicon Edge I/O NTS
Product or Component Type Analog output module kit
Kit composition NTSAMO0400H module, NTSXBA0100H base
Mandatory accessory NTSXTB12_0_H terminal block
Product Compatibility NTSN.....
Range Compatibility Logic/motion controller - Modicon M262, Modicon M580, Third party
Device Application Industrial Application
Analogue output number 4
Operating Mode Isochronous/Asynchronous

Complementary 27

Analogue output type Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage 0...10 V, Voltage +/- 5 V, Voltage 0...5 V, Voltage 1...5 V
Output wiring mode 2 wires
Output protection type 16 mA short circuit and 30V over voltage for voltage output, 30V over voltage for current output
Output diagnostic Underflow error per channel, Overflow error per channel, Broken wire error per channel, Short circuit error per channel, Hardware error per channel, Calibration error per channel, DAC power error per channel, Internal field power supply error per channel
Load impedance ohmic 600 Ohm current, 1 kOhm voltage
Response time on output 912 µs at 600 Ohm per module
HART tolerance Yes
Type of Cable Shielded cable
Temperature drift ± 0.002 % FS/ °C
Measurement error <= 0.1 % FS 25 °C, <= 0.2 % FS - 40…70 °C
Non-linearity <= 0.02 % FS voltage/current
Power supply type Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc)
Rated operational voltage limits 20.4...28.8 V DC
Typical current consumption 34.6 mA 24 V DC on the Bus current, 24 mA 24 V DC on the internal field current minimum, 79.2 mA 24 V DC on the internal field current maximum
Power dissipation in W 1.7 W maximum at 24 V DC
Maximum cable distance between devices Shielded cable <656.2 ft (200 m) voltage inputs, Shielded cable <3280.8 ft (1000 m) current input
Isolation between channels and bus 1500 V AC
Isolation between channels and field pwr No
Isolation between field power and bus 1500 V AC
Hot swapping fallback Yes
Local signalling 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module error (ERR)
Housing Colour Grey
Mounting support Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715
Height 3.9 in (100 mm)
Width 0.6 in (15 mm)
Depth 3.1 in (80 mm)
Net Weight 0.161 lb(US) (0.073 kg)

Environment 13

IP Degree of Protection IP20
Protective treatment Conformal coating
Marking CE, UKCA, CULus, RCM
Product certifications CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Standards EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5
Directives 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Ambient air temperature for operation -40…158 °F (-40…70 °C)
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Relative humidity 5…95 % without condensation
Operating altitude 0...6561.68 ft (0...2000 m), 2000...5000 m with derating
Pollution degree 2
Vibration resistance 1 g without accessory, 2 g with accessory
Shock resistance 15 g 11 ms with and without accessory)
Show all 62 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number NTSAMO0400HK
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606486877418

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.073 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for NTSAMO0400HK

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
  • CCC
  • EAC
  • EN/IEC 61131-2
  • EN 61010-2-201
  • UL 61010-2-201
  • IACS E10
  • EN/IEC 61000-6-5
  • EN/IEC 61850-3
  • EN/IEC 60079-0
  • EN 50155
  • EN 50121-4
  • EN 50121-5
