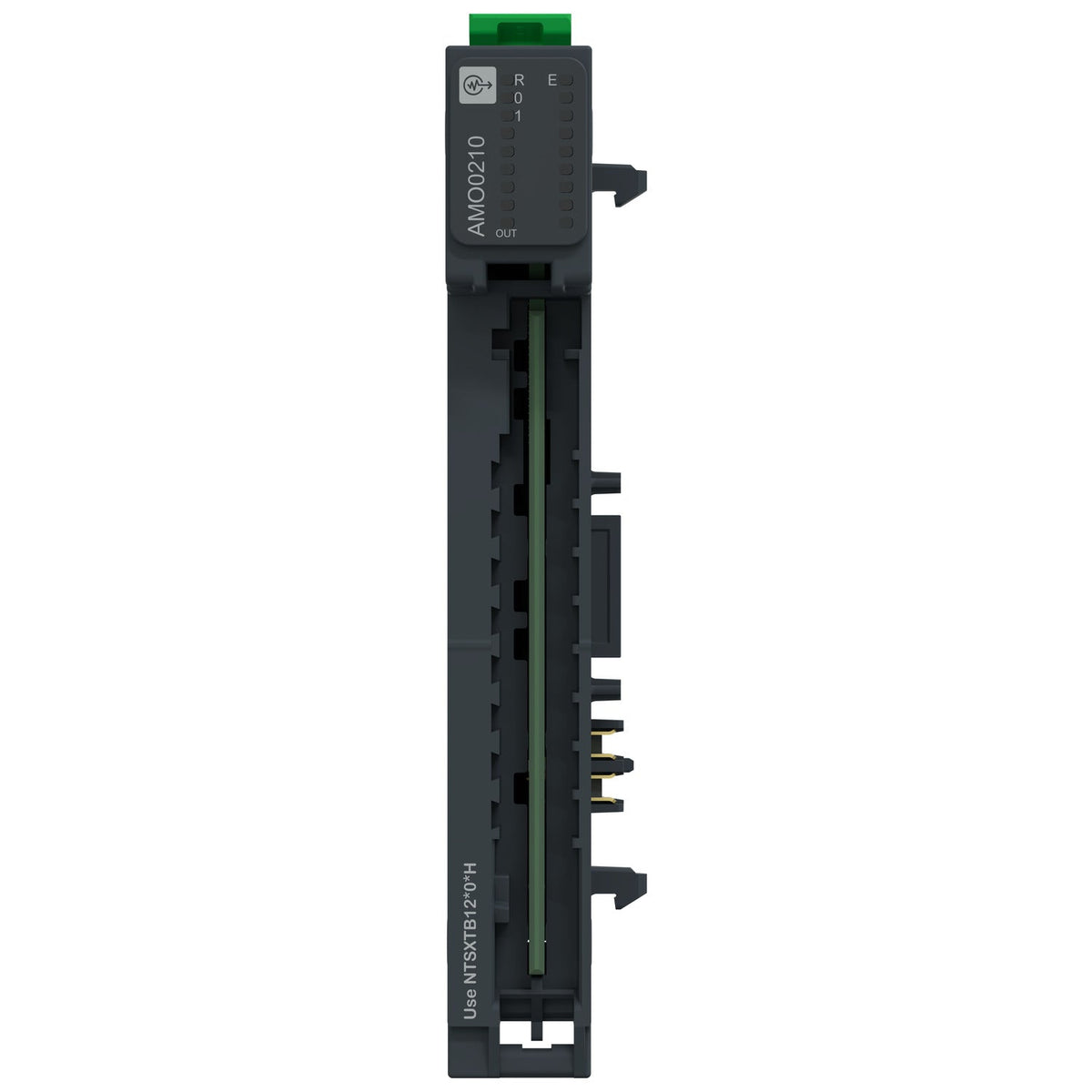

The Schneider Electric NTSAMO0210K is a Modicon Edge I/O NTS analog output kit with the NTSAMO0210 module pre-assembled on its base. It drives 2 isolated current or voltage outputs over a 2, 3 or 4-wire connection, tolerates HART superimposed signals, and operates from -20 to 60 degrees Celsius at IP20. It runs on 24 V DC bus and field power shared with the Modicon M262 or M580 head station.
Choose the NTSAMO0210K for standard control-room or enclosed-cabinet installations within -20...60 °C — it carries the same 2-channel output rating as the hardened variant at a simpler temperature spec. Where the installation sees wider temperature swings or needs conformal-coated electronics, the hardened NTSAMO0210HK in the same range extends the rating to -40...70 °C without changing the output behaviour.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Analog output module kit |
| Kit composition | NTSAMO0210 module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB12_0_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Analogue output number | 2 |
| Operating Mode | Synchronous/Isochronous/Asynchronous |
| Analogue output type | Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage 0...10 V, Voltage +/- 5 V, Voltage 0...5 V, Voltage 1...5 V |
|---|---|
| Output wiring mode | 2, 3 or 4 wires |
| Output protection type | 16 mA short circuit and 30V over voltage for voltage output, 30V over voltage for current output |
| Output diagnostic | Underflow error per channel, Overflow error per channel, Broken wire error per channel, Short circuit error per channel, Hardware error per channel, Calibration error per channel, DAC power error per channel, Internal field power supply error per channel |
| Load impedance ohmic | 750 Ohm current, 1 kOhm voltage |
| Response time on output | 522 µs at 750 Ohm per module |
| HART tolerance | Yes |
| Type of Cable | Shielded cable |
| Temperature drift | ± 0.002 % FS/ °C |
| Measurement error | <= 0.1 % FS 25 °C, <= 0.2 % FS - 40…70 °C |
| Non-linearity | <= 0.02 % FS voltage/current |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc) |
| Rated operational voltage limits | 20.4...28.8 V DC |
| Typical current consumption | 34.6 mA 24 V DC on the Bus current, 16.3 mA 24 V DC on the internal field current minimum, 66 mA 24 V DC on the internal field current maximum |
| Power dissipation in W | 1.7 W maximum at 24 V DC |
| Maximum cable distance between devices | Shielded cable <656.2 ft (200 m) voltage inputs, Shielded cable <3280.8 ft (1000 m) current input |
| Isolation between channels | 530 V AC |
| Isolation between channels and bus | 1500 V AC |
| Isolation between channels and field pwr | 1000 V AC |
| Isolation between field power and bus | 1500 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 4.6 in (116.6 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.2 in (81 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m), 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant C3 and G2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSAMO0210K |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877401 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for NTSAMO0210K is 853710.
The EAN (GTIN) of NTSAMO0210K is 3606486877401.
NTSAMO0210K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
