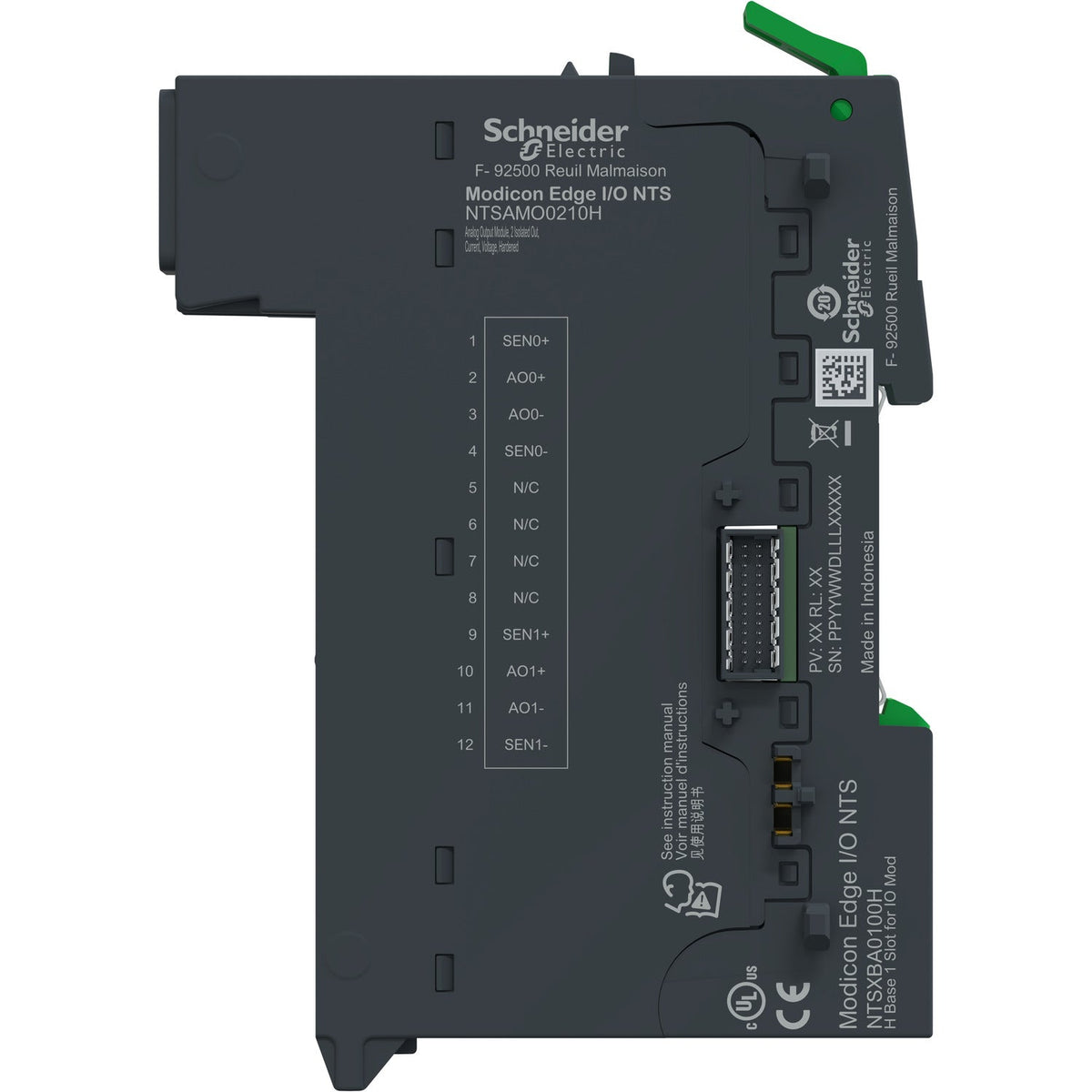

The Schneider Electric NTSAMO0210HK is a hardened Modicon Edge I/O NTS analog output kit with the NTSAMO0210H module pre-assembled on its base. It drives 2 isolated current or voltage outputs, tolerates HART superimposed signals, and extends the operating range to -40...70 degrees Celsius with conformal coating on the electronics. It runs on 24 V DC bus and field power at IP20.
Choose the NTSAMO0210HK over the standard-temperature 2-output kit when the cabinet sees temperature extremes beyond -20...60 °C, outdoor enclosures, or unheated plant rooms — the conformal coating and extended -40...70 °C rating are the only differences from the standard variant; electrically the two are identical. Where 4 outputs are needed instead of 2, the hardened 4-channel kit in the same range keeps the same extended temperature rating.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Analog output module kit |
| Kit composition | NTSAMO0210H module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB12_0_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Analogue output number | 2 |
| Operating Mode | Synchronous/Isochronous/Asynchronous |
| Analogue output type | Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage 0...10 V, Voltage +/- 5 V, Voltage 0...5 V, Voltage 1...5 V |
|---|---|
| Output wiring mode | 2, 3 or 4 wires |
| Output protection type | 16 mA short circuit and 30V over voltage for voltage output, 30V over voltage for current output |
| Output diagnostic | Underflow error per channel, Overflow error per channel, Broken wire error per channel, Short circuit error per channel, Hardware error per channel, Calibration error per channel, DAC power error per channel |
| Load impedance ohmic | 750 Ohm current, 1 kOhm voltage |
| Response time on output | 522 µs at 750 Ohm per module |
| HART tolerance | Yes |
| Type of Cable | Shielded cable |
| Temperature drift | ± 0.002 % FS/ °C |
| Measurement error | <= 0.1 % FS 25 °C, <= 0.2 % FS - 40…70 °C |
| Non-linearity | <= 0.02 % FS voltage/current |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc) |
| Rated operational voltage limits | 20.4...28.8 V DC |
| Typical current consumption | 34.6 mA 24 V DC on the Bus current, 16.3 mA 24 V DC on the internal field current minimum, 66 mA 24 V DC on the internal field current maximum |
| Power dissipation in W | 1.7 W maximum at 24 V DC |
| Maximum cable distance between devices | Shielded cable <656.2 ft (200 m) voltage inputs, Shielded cable <3280.8 ft (1000 m) current input |
| Isolation between channels | 530 V AC |
| Isolation between channels and bus | 1500 V AC |
| Isolation between channels and field pwr | 1000 V AC |
| Isolation between field power and bus | 1500 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 4.6 in (116.6 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.2 in (81 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | Conformal coating |
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m), 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant CX & GX combined, Salt spray resistant |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSAMO0210HK |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877395 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for NTSAMO0210HK is 853710.
The EAN (GTIN) of NTSAMO0210HK is 3606486877395.
NTSAMO0210HK ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
