Part number
NTSAMM0600K
$320.05 On request Dispatch — · From TürkiyeGet a Quote
Modicon Edge I/O NTS

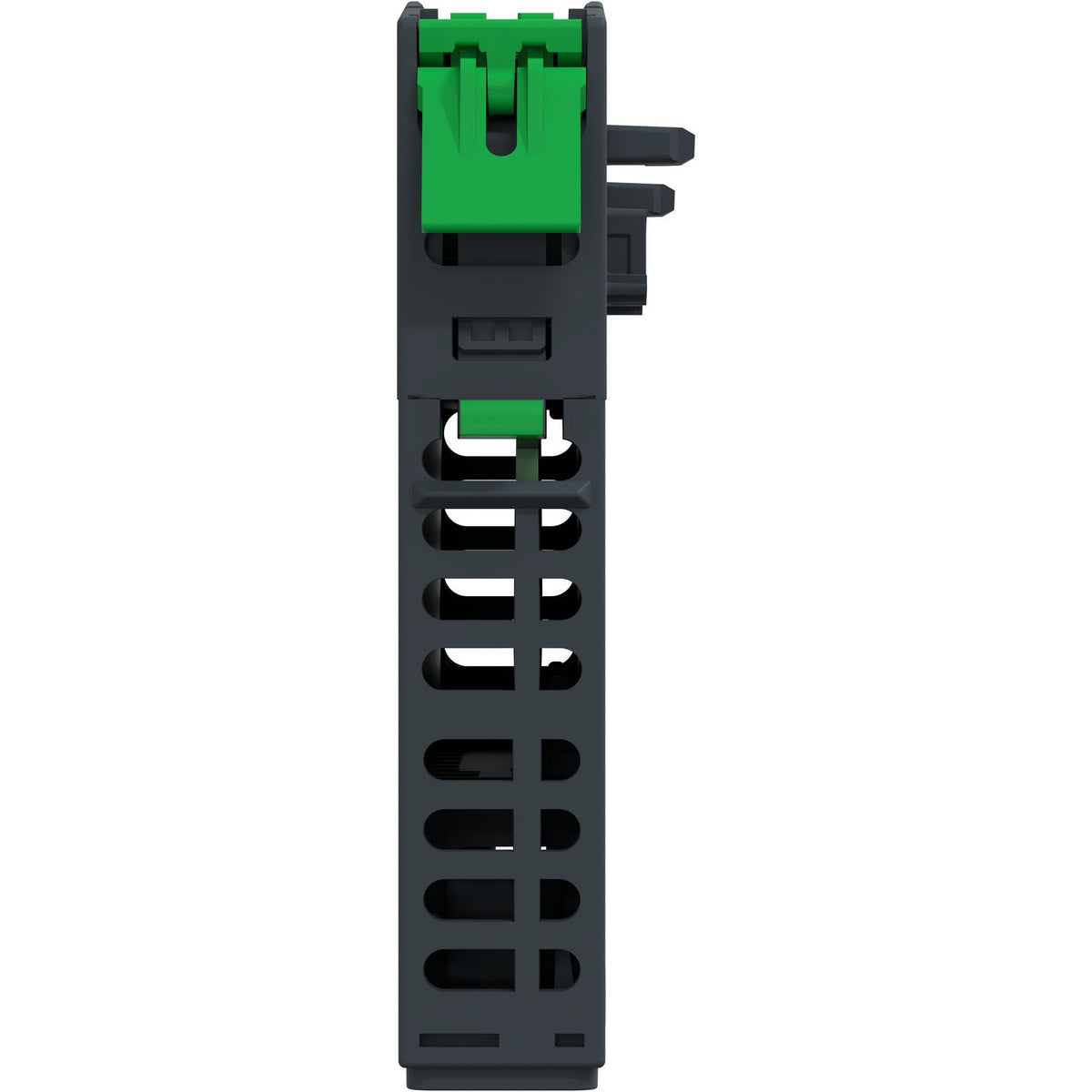

Schneider Electric NTSAMM0600K Modicon Edge I/O NTS Analog Input/Output Module with Base Remote I/O Module

Modicon Edge I/O NTS analog input/output module kit (module + base), 24V DC, IP20, DIN rail.

Range of Product
Modicon Edge I/O NTS
Product or Component Type
Analog IO module
Kit composition
NTSAMM0600 module, NTSXBA0100H base
Mandatory accessory
NTSXTB18_0_H terminal block
Product Compatibility
NTSN.....
Range Compatibility
Logic/motion controller - Modicon M262, Modicon M580, Third party
EAN
3606486877388
Description

About the NTSAMM0600K

The Schneider Electric NTSAMM0600K is a Modicon Edge I/O NTS mixed analog kit combining 4 inputs and 2 outputs on the NTSAMM0600 module, pre-assembled on its base. Input and output groups are isolated from each other at 530 V AC, both support current and voltage signal types over a 2-wire connection, and the outputs tolerate HART superimposed signals. It operates from -20 to 60 degrees Celsius at IP20, powered by 24 V DC bus and field power.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • RCM
  • IEC 61131-2

Selection Notes

Choose the NTSAMM0600K where a single drop needs both analog sensing and analog control — 4 process inputs plus 2 actuator or setpoint outputs — without running a separate input and output module; the 530 V isolation between the two groups keeps output loop noise off the measurement side. Where the application is purely sensing or purely control, a dedicated input-only or output-only kit in the same range uses the bus more efficiently.

Specification

Full specification

73 values · Last verified 30 Oct 2026

Main 10

Range of Product Modicon Edge I/O NTS
Product or Component Type Analog IO module
Kit composition NTSAMM0600 module, NTSXBA0100H base
Mandatory accessory NTSXTB18_0_H terminal block
Product Compatibility NTSN.....
Range Compatibility Logic/motion controller - Modicon M262, Modicon M580, Third party
Device Application Industrial Application
Analogue input number 4
Analogue output number 2
Operating Mode Isochronous/Asynchronous

Complementary 37

Analogue input type Current +/- 20 mA, Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage 0...10 V, Voltage +/- 5 V, Voltage 0...5 V, Voltage 1...5 V
Input wiring mode 1 or 2 wires
Analogue input resolution 15 bits + sign
Permitted overload on inputs 30 V maximum voltage, 30 V at 50 mA maximum current
Input impedance > 10 MOhm in voltage mode, 100 Ohm
Sampling duration 1.69 ms per module
Input protection type Over current / miswiring protection per channel for current input, Over voltage / miswiring protection per channel for voltage input
Input diagnostic Underflow error per channel, Overflow error per channel, Broken wire error per channel, Hardware error per channel
Analogue output type Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage 0...10 V, Voltage +/- 5 V, Voltage 0...5 V, Voltage 1...5 V
Output wiring mode 2 wires
LSB value 0.31 mV, +/- 10 V, 0.31 mV, 0...10 V, 0.16 mV, +/- 5 V, 0.16 mV, 0...5 V, 0.13 mV, 1...5 V, 0.61 µA, +/- 20 mA, 0.61 µA, 0...2 mA, 0.49 µA, 4...20 mA
Output protection type 30V over voltage for current output
Load impedance ohmic 600 Ohm current, 1 kOhm voltage
Response time on output 1.2 ms at 600 Ohm per module
HART tolerance Yes
Type of Cable Shielded cable
Temperature drift ± 0.0057 % FS/ °C input, ± 0.0006 % FS/ °C output
Measurement error <= 0.3 % FS 25 °C input, <= 0.5 % FS - 20…60 °C input, <= 0.3 % FS 25 °C output, <= 0.5 % FS - 20…60 °C output
Non-linearity <= 0.01 % FS analog input analog output, <= 0.02 % FS analog output
Common mode rejection 90 dB
Power supply type Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc)
Rated operational voltage limits 20.4...28.8 V DC
Typical current consumption 37.4 mA 24 V DC on the Bus current, 28.3 mA 24 V DC on the internal field current minimum, 80.4 mA 24 V DC on the internal field current maximum
Power dissipation in W 2.3 W maximum at 24 V DC
Maximum cable distance between devices Shielded cable <656.2 ft (200 m) voltage inputs, Shielded cable <3280.8 ft (1000 m) current input, Shielded cable <656.2 ft (200 m) voltage output, Shielded cable <3280.8 ft (1000 m) current output
Isolation between group 530 V AC
Isolation between channels and bus 1500 V AC
Isolation between channels and field pwr 1000 Vac for input, 1000 Vac for output
Isolation between field power and bus 1500 V AC
Hot swapping fallback Yes
Local signalling 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module error (ERR)
Housing Colour Grey
Mounting support Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715
Height 4.6 in (116.6 mm)
Width 0.6 in (15 mm)
Depth 3.2 in (81 mm)
Net Weight 0.161 lb(US) (0.073 kg)

Environment 13

IP Degree of Protection IP20
Marking CE, UKCA, CULus, RCM
Product certifications CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Standards EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5
Directives 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Ambient air temperature for operation -4…140 °F (-20…60 °C)
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Relative humidity 5…95 % without condensation
Operating altitude 0...6561.68 ft (0...2000 m), 2000...5000 m with derating
Pollution degree 2
Environmental characteristic Gas resistant C3 and G2
Vibration resistance 1 g without accessory, 2 g with accessory
Shock resistance 15 g 11 ms with and without accessory)
Show all 73 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number NTSAMM0600K
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606486877388

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.073 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for NTSAMM0600K

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
  • CCC
  • EAC
  • EN/IEC 61131-2
  • EN 61010-2-201
  • UL 61010-2-201
  • IACS E10
  • EN/IEC 61000-6-5
  • EN/IEC 61850-3
  • EN/IEC 60079-0
  • EN 50155
  • EN 50121-4
  • EN 50121-5
Quick answers

Questions about the NTSAMM0600K

What is the HS code of NTSAMM0600K for customs?

The tariff (HS) code on file for NTSAMM0600K is 853710.

What is the EAN of NTSAMM0600K?

The EAN (GTIN) of NTSAMM0600K is 3606486877388.

Where does NTSAMM0600K ship from, and how fast?

NTSAMM0600K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
