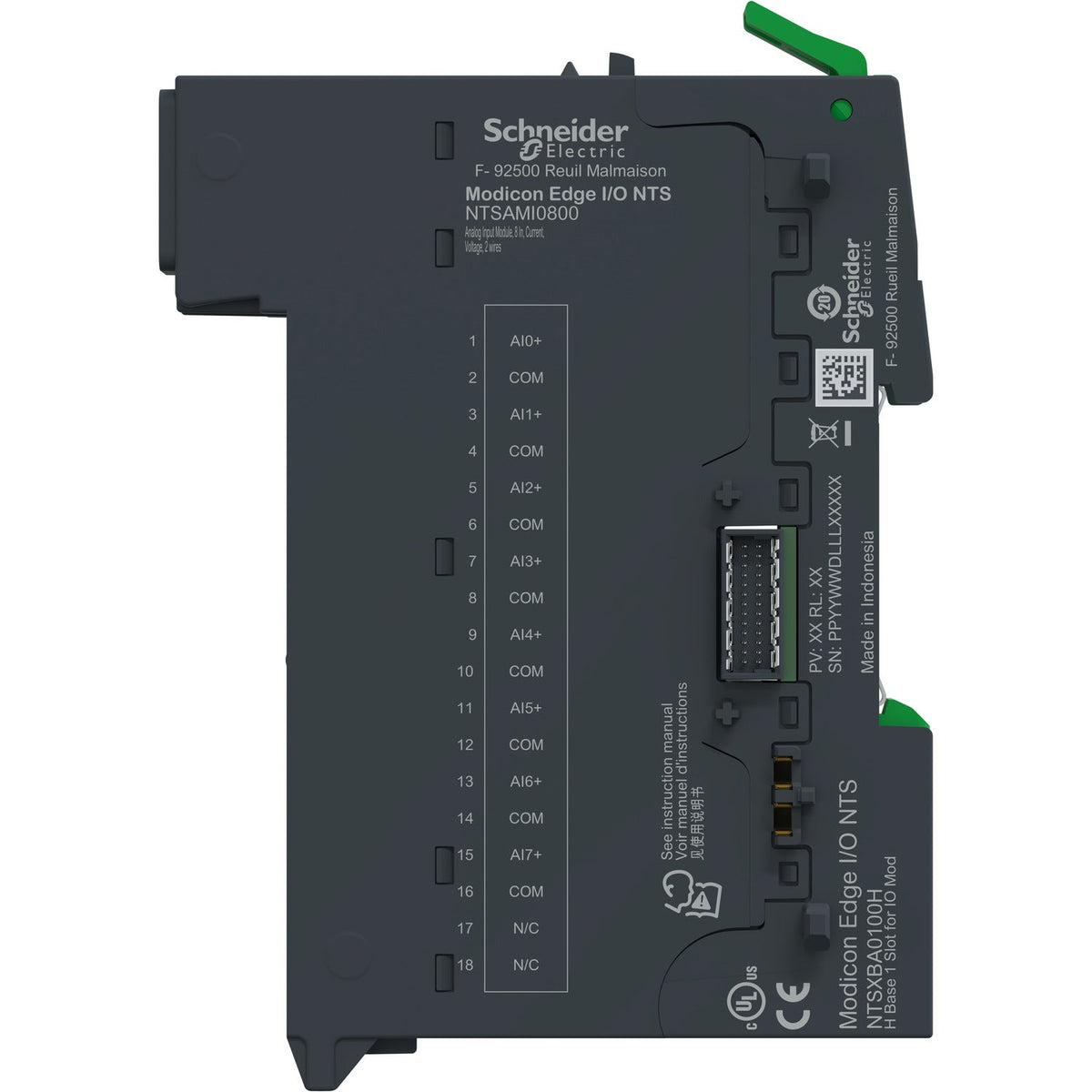

The Schneider Electric NTSAMI0800K is a Modicon Edge I/O NTS analog input kit that doubles the channel count of the smaller module in the same range, pre-assembling the NTSAMI0800 module on its base. It reads 8 current or voltage inputs over a 1- or 2-wire connection at 15-bit-plus-sign resolution, within the same 100 x 15 x 80 mm footprint. It operates from -20 to 60 degrees Celsius at IP20, powered by 24 V DC bus and field power.
Choose the NTSAMI0800K when the point count needs 8 single-ended current or voltage channels in one module slot rather than two 4-channel kits side by side — it halves the DIN-rail space and the number of bus connections for the same channel total. Where fewer than 4 channels are needed per drop, the smaller single-ended kit in the same family avoids paying for unused channels.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Analog input module kit |
| Kit composition | NTSAMI0800 module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB18_0_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Analogue input number | 8 |
| Operating Mode | Isochronous/Asynchronous |
| Analogue input type | Current +/- 20 mA, Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage 0...10 V, Voltage +/- 5 V, Voltage 0...5 V, Voltage 1...5 V |
|---|---|
| input signal type | Single ended |
| Input wiring mode | 1 or 2 wires |
| Analogue input resolution | 15 bits + sign |
| Permitted overload on inputs | 30 V maximum voltage, 30 V at 50 mA maximum current |
| Input impedance | > 10 MOhm in voltage mode, 100 Ohm + internal current protector 10 Ohm typical |
| Sampling duration | 1.615 ms per module |
| Input protection type | Over current / miswiring protection per channel for current input, Over voltage / miswiring protection per channel for voltage input |
| Input diagnostic | Underflow error per channel, Overflow error per channel, Broken wire error per channel, Hardware error per channel |
| LSB value | 0.31 mV, +/- 10 V, 0.31 mV, 0...10 V, 0.16 mV, +/- 5 V, 0.16 mV, 0...5 V, 0.13 mV, 1...5 V, 0.61 µA, +/- 20 mA, 0.61 µA, 0...2 mA, 0.49 µA, 4...20 mA |
| Type of Cable | Shielded cable |
| Temperature drift | ± 0.0057 % FS/ °C |
| Measurement error | <= 0.3 % FS 25 °C, <= 0.5 % FS in - 30...60 °C |
| Non-linearity | <= 0.01 % FS voltage/current |
| Common mode rejection | 90 dB |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc) |
| Rated operational voltage limits | 20.4...28.8 V DC |
| Typical current consumption | 34.6 mA 24 V DC on the Bus current, 27.6 mA 24 V DC on the internal field current minimum, 33.1 mA 24 V DC on the internal field current maximum |
| Power dissipation in W | 2.1 W maximum at 24 V DC |
| Maximum cable distance between devices | Shielded cable <656.2 ft (200 m) voltage inputs, Shielded cable <3280.8 ft (1000 m) current input |
| Isolation between channels and bus | 1500 V AC |
| Isolation between channels and field pwr | No |
| Isolation between field power and bus | 1500 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 4.6 in (116.6 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.2 in (81 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m), 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant C3 and G2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSAMI0800K |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877371 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for NTSAMI0800K is 853710.
The EAN (GTIN) of NTSAMI0800K is 3606486877371.
NTSAMI0800K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
