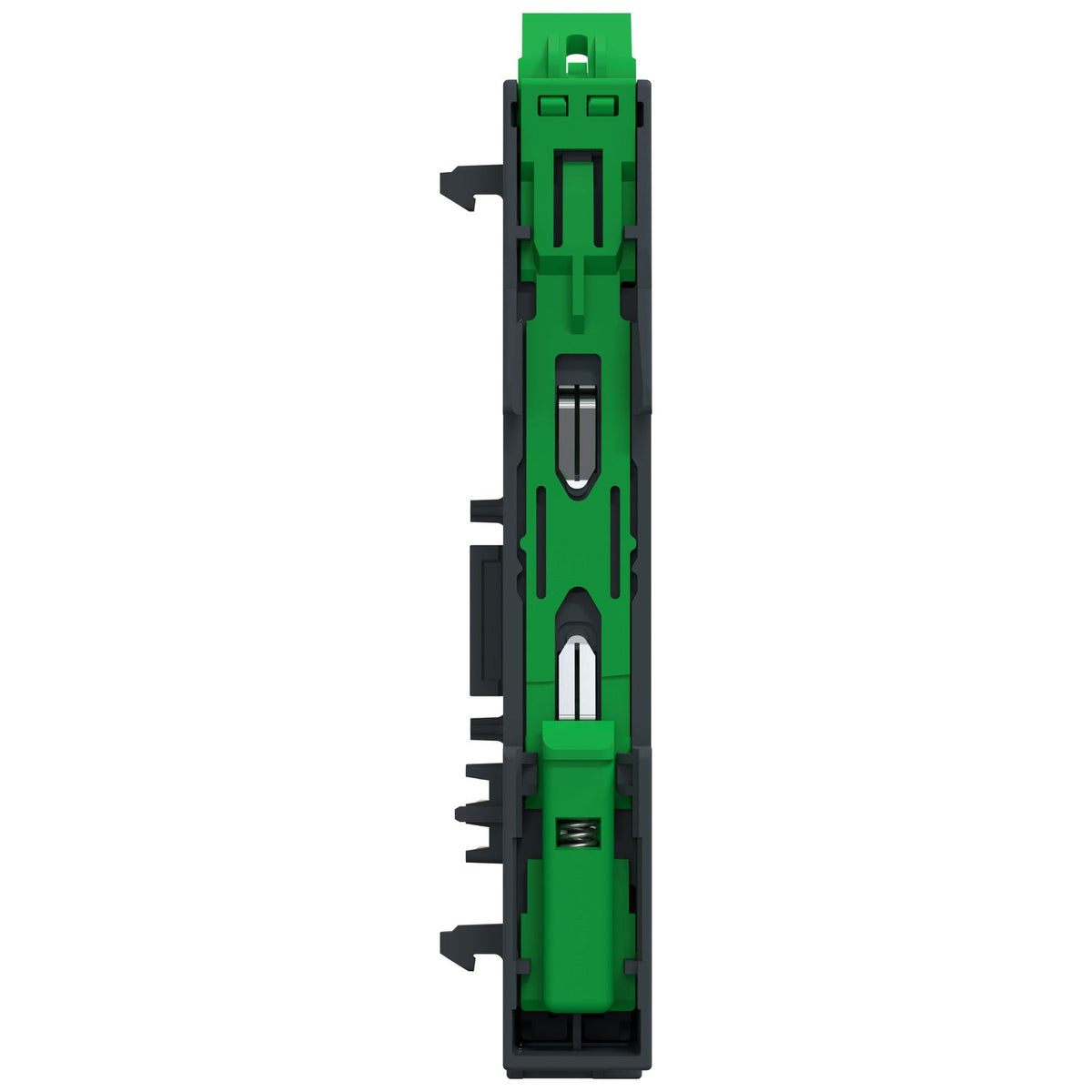

The Schneider Electric NTSAMI0400K is a Modicon Edge I/O NTS analog input kit that ships the NTSAMI0400 module pre-assembled on its base, ready to snap onto a DIN rail. It reads 4 current or voltage inputs over a 2-wire connection, at 15-bit-plus-sign resolution, and operates from -20 to 60 degrees Celsius with IP20 protection. It runs on 24 V DC bus and field power shared with the Modicon M262 or M580 head station.
Choose the NTSAMI0400K where 4 single-ended current or voltage inputs cover the point count and the installation stays within a standard -20...60 °C enclosure. Where the signal source floats relative to ground or needs channel-to-channel isolation, the differential NTSAMI0420K variant protects against common-mode noise instead; where the point count needs to double without adding a second kit, the 8-channel version in the same family keeps the identical base and terminal block.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Analog input module kit |
| Kit composition | NTSAMI0400 module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB12_0_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Analogue input number | 4 |
| Operating Mode | Isochronous/Asynchronous |
| Analogue input type | Current +/- 20 mA, Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage 0...10 V, Voltage +/- 5 V, Voltage 0...5 V, Voltage 1...5 V |
|---|---|
| Input wiring mode | 2 wires |
| Analogue input resolution | 15 bits + sign |
| Permitted overload on inputs | 30 V maximum voltage, 30 V at 50 mA maximum current |
| Input impedance | > 10 MOhm in voltage mode, 100 Ohm + internal current protector 10 Ohm typical |
| Sampling duration | 0.980 ms per module |
| Input protection type | Over current / miswiring protection per channel for current input, Over voltage / miswiring protection per channel for voltage input |
| Input diagnostic | Underflow error per channel, Overflow error per channel, Broken wire error per channel, Hardware error per channel |
| LSB value | 0.31 mV, +/- 10 V, 0.31 mV, 0...10 V, 0.16 mV, +/- 5 V, 0.16 mV, 0...5 V, 0.13 mV, 1...5 V, 0.61 µA, +/- 20 mA, 0.61 µA, 0...2 mA, 0.49 µA, 4...20 mA |
| Type of Cable | Shielded cable |
| Temperature drift | ± 0.0057 % FS/ °C |
| Measurement error | <= 0.3 % FS 25 °C, <= 0.5 % FS - 20…60 °C |
| Non-linearity | <= 0.01 % FS voltage/current |
| Common mode rejection | 90 dB |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc) |
| Rated operational voltage limits | 20.4...28.8 V DC |
| Typical current consumption | 31.7 mA 24 V DC on the Bus current, 19.2 mA 24 V DC on the internal field current minimum, 23 mA 24 V DC on the internal field current maximum |
| Power dissipation in W | 1.6 W maximum at 24 V DC |
| Maximum cable distance between devices | Shielded cable <656.2 ft (200 m) voltage inputs, Shielded cable <3280.8 ft (1000 m) current input |
| Isolation between channels and bus | 1500 V AC |
| Isolation between channels and field pwr | No |
| Isolation between field power and bus | 1500 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 3.9 in (100 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.1 in (80 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m), 2000...5000 m with derating |
| Pollution degree | 2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSAMI0400K |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877357 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
