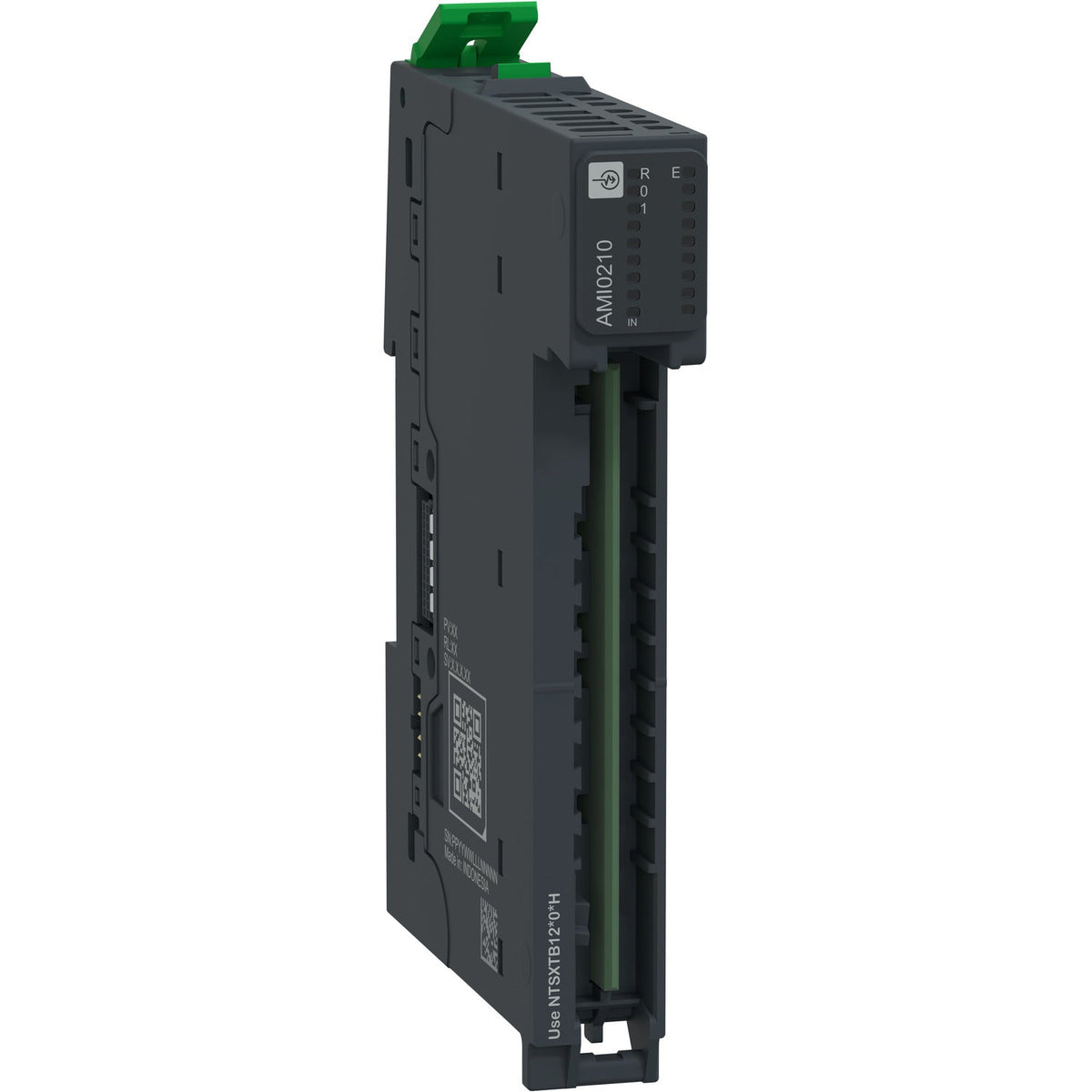

The Schneider Electric NTSAMI0210K is a Modicon Edge I/O NTS analog input kit pairing an NTSAMI0210 input module with an NTSXBA0100H base. It provides 2 isolated current/voltage inputs (±20 mA, 4-20 mA, ±10 V, 0-10 V and more) over 2-, 3- or 4-wire connections with HART tolerance and 15-bit-plus-sign resolution, and operates from -20 to 60°C with an IP20 rating.
Choose this standard-environment kit for installations that don't need the Hardened version's conformal coating and extended -40 to 70°C rating — it shares the same 2-isolated-channel, 2/3/4-wire current/voltage input range, HART tolerance, and 15-bit-plus-sign resolution. Its narrower 15 mm housing and NTSXBA0100H base keep the rack footprint smaller where channel density matters more than ambient extremes.
The kit mounts on the NTS bus behind Modicon M262 and M580 controllers. Per-channel diagnostics flag underflow, overflow, broken-wire, hardware, calibration and loop-power-supply faults, reported through a green RUN LED, a per-channel diagnostic LED and a red ERR LED on the module face. Hot-swap fallback lets a channel be replaced without stopping the rest of the I/O island, and the isolated channel design keeps a fault on one input from affecting the other.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Analog input module |
| Kit composition | NTSAMI0210 module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB12_0_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Analogue input number | 2 |
| Operating Mode | Synchronous/Isochronous/Asynchronous |
| Analogue input type | Current +/- 20 mA, Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage 0...10 V, Voltage +/- 5 V, Voltage 0...5 V, Voltage 1...5 V |
|---|---|
| Input wiring mode | 2, 3 or 4 wires |
| Analogue input resolution | 15 bits + sign |
| Permitted overload on inputs | 30 V maximum voltage, 30 V at 50 mA maximum current |
| Input impedance | > 10 MOhm in voltage mode, 250 Ohm + internal current protector 10 Ohm typical |
| Sampling duration | 0.499 ms |
| Input protection type | Over current / miswiring protection per channel for current input, Over voltage / miswiring protection per channel for voltage input |
| Sensor power supply protection | Over current protection per channel, Short circuit protection on loop power supply per channel |
| Input diagnostic | Underflow error per channel, Overflow error per channel, Broken wire error per channel, Hardware error per channel, Calibration error per channel, Loop power supply error per channel |
| LSB value | 0.31 mV, +/- 10 V, 0.31 mV, 0...10 V, 0.16 mV, +/- 5 V, 0.16 mV, 0...5 V, 0.13 mV, 1...5 V, 0.61 µA, +/- 20 mA, 0.61 µA, 0...2 mA, 0.49 µA, 4...20 mA |
| HART tolerance | Yes |
| Type of Cable | Shielded cable |
| Temperature drift | ± 0.001 % FS/ °C |
| Measurement error | <= 0.05 % FS 25 °C, <= 0.1 % FS - 20…60 °C |
| Non-linearity | <= 0.01 % FS voltage/current |
| Common mode rejection | 90 dB |
| Sensor power supply | 19.2…30 V DC sensor power supply, 24 V DC Loop power |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc) |
| Rated operational voltage limits | 20.4...28.8 V DC |
| Typical current consumption | 36 mA 24 V DC on the Bus current, 38.4 mA 24 V DC on the internal field current minimum, 246.1 mA 24 V DC on the internal field current maximum |
| Power dissipation in W | 1.3 W maximum at 24 V DC |
| Maximum cable distance between devices | Shielded cable <656.2 ft (200 m) voltage inputs, Shielded cable <3280.8 ft (1000 m) current input |
| Isolation between channels | 530 V AC |
| Isolation between channels and bus | 1500 V AC |
| Isolation between channels and field pwr | No for module sensor power supply, 1000 Vac for module loop power supply |
| Isolation between field power and bus | 1500 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 3.9 in (100 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.1 in (80 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m), 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant C3 and G2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSAMI0210K |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877340 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
