Part number
NTSAMI0210HK
$401.64 On request Dispatch — · From TürkiyeGet a Quote
Modicon Edge I/O NTS

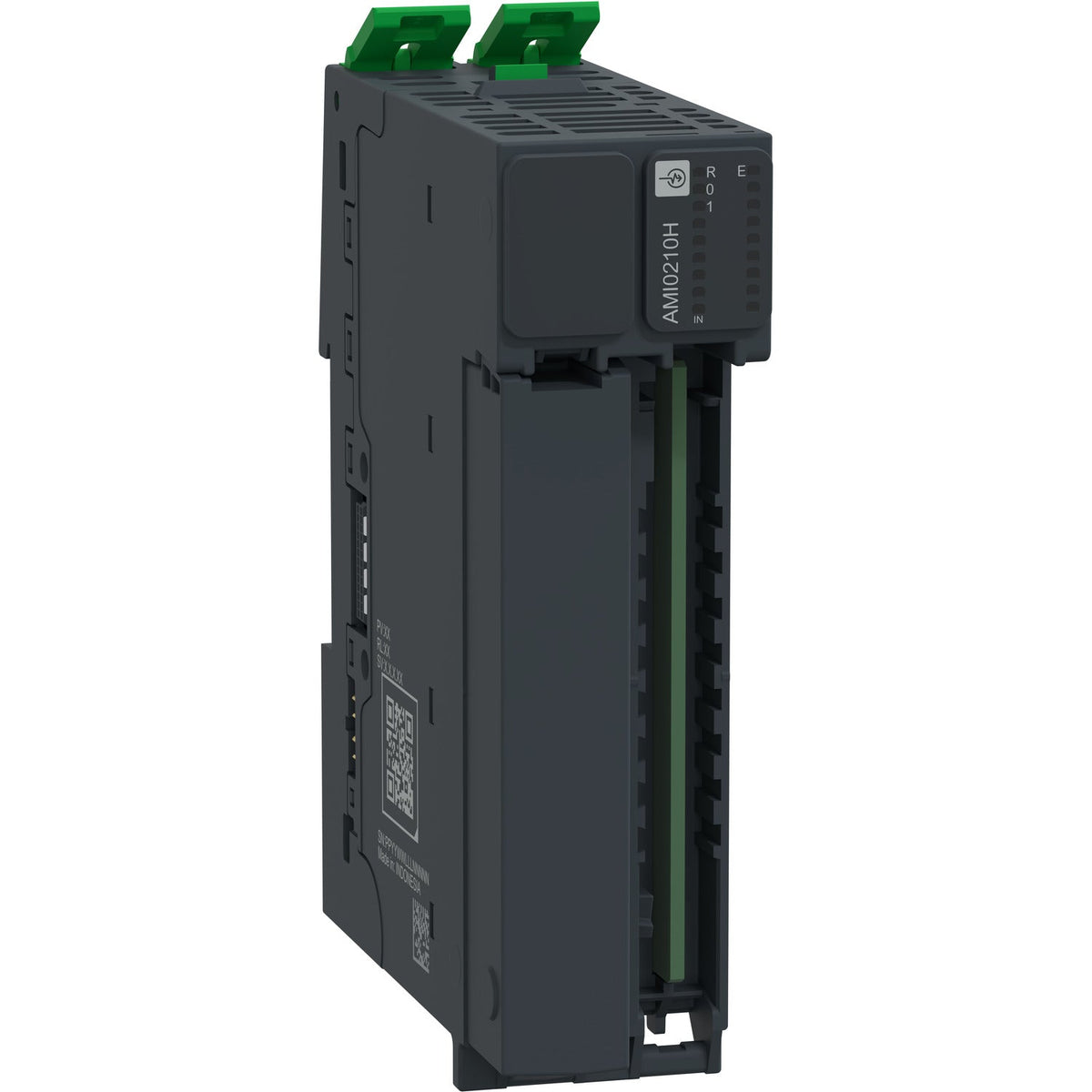

Schneider Electric NTSAMI0210HK Edge I/O NTS 2-Ch Isolated Hardened Current Voltage Input Remote I/O Module

Modicon Edge I/O NTS hardened 2-channel isolated current/voltage analog input kit, HART tolerant.

Communication
HART
EAN
3606486877333
Description

About the NTSAMI0210HK

The Schneider Electric NTSAMI0210HK is a Modicon Edge I/O NTS analog input kit combining a hardened NTSAMI0210H input module with an NTSXBA0200H base. It provides 2 isolated current/voltage inputs (±20 mA, 4-20 mA, ±10 V, 0-10 V and more) over 2-, 3- or 4-wire connections with HART tolerance and 15-bit-plus-sign resolution, and operates across an extended -40 to 70°C range.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • RCM
  • EN/IEC 61131-2
  • EN 61010-2-201
  • UL 61010-2-201
  • IACS E10
  • EN/IEC 61000-6-5
  • EN/IEC 61850-3
  • EN/IEC 60079-0
  • EN 50155
  • EN 50121-4
  • EN 50121-5

Selection Notes

Specify this Hardened variant where the application needs an extended -40 to 70°C ambient rating and conformal-coated circuit boards — channel count, wiring modes and HART tolerance are unchanged from the standard-environment version of this kit, so the decision is driven by ambient temperature and environmental exposure rather than signal type. The HART pass-through lets it read smart-transmitter diagnostic data on the same wiring used for the 4-20 mA process signal, avoiding a separate HART multiplexer.

Applications

The kit mounts on the NTS bus behind Modicon M262 and M580 controllers. Per-channel diagnostics flag underflow, overflow, broken-wire, hardware, calibration and loop-power-supply faults, reported through a green RUN LED, a per-channel diagnostic LED and a red ERR LED on the module face. Hot-swap fallback lets a channel be replaced without stopping the rest of the I/O island, and the isolated channel design keeps a fault on one input from affecting the other.

Specification

Full specification

70 values · Last verified 30 Oct 2026

Main 9

Range of Product Modicon Edge I/O NTS
Product or Component Type Analog input module
Kit composition NTSAMI0210H module, NTSXBA0200H base
Mandatory accessory NTSXTB12_0_H terminal block
Product Compatibility NTSN.....
Range Compatibility Logic/motion controller - Modicon M262, Modicon M580, Third party
Device Application Industrial Application
Analogue input number 2
Operating Mode Synchronous/Isochronous/Asynchronous

Complementary 34

Analogue input type Current +/- 20 mA, Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage 0...10 V, Voltage +/- 5 V, Voltage 0...5 V, Voltage 1...5 V
Input wiring mode 2, 3 or 4 wires
Analogue input resolution 15 bits + sign
Permitted overload on inputs 30 V maximum voltage, 30 V at 50 mA maximum current
Input impedance > 10 MOhm in voltage mode, 250 Ohm + internal current protector 10 Ohm typical
Sampling duration 0.499 ms
Input protection type Over current / miswiring protection per channel for current input, Over voltage / miswiring protection per channel for voltage input
Sensor power supply protection Over current protection per channel, Short circuit protection on loop power supply per channel
Input diagnostic Underflow error per channel, Overflow error per channel, Broken wire error per channel, Hardware error per channel, Calibration error per channel, Loop power supply error per channel
LSB value 0.31 mV, +/- 10 V, 0.31 mV, 0...10 V, 0.16 mV, +/- 5 V, 0.16 mV, 0...5 V, 0.13 mV, 1...5 V, 0.61 µA, +/- 20 mA, 0.61 µA, 0...2 mA, 0.49 µA, 4...20 mA
HART tolerance Yes
Type of Cable Shielded cable
Temperature drift ± 0.001 % FS/ °C
Measurement error <= 0.05 % FS 25 °C, <= 0.1 % FS - 20…60 °C
Non-linearity <= 0.01 % FS voltage/current
Common mode rejection 90 dB
Sensor power supply 19.2…30 V DC sensor power supply, 24 V DC Loop power
Power supply type Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc)
Rated operational voltage limits 20.4...28.8 V DC
Typical current consumption 36 mA 24 V DC on the Bus current, 38.4 mA 24 V DC on the internal field current minimum, 246.1 mA 24 V DC on the internal field current maximum
Power dissipation in W 1.9 W maximum at 24 V DC
Maximum cable distance between devices Shielded cable <656.2 ft (200 m) voltage inputs, Shielded cable <3280.8 ft (1000 m) current input
Isolation between channels 530 V AC
Isolation between channels and bus 1500 V AC
Isolation between channels and field pwr No for module sensor power supply, 1000 Vac for module loop power supply
Isolation between field power and bus 1500 V AC
Hot swapping fallback Yes
Local signalling 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module error (ERR)
Housing Colour Grey
Mounting support Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715
Height 3.9 in (100 mm)
Width 1.2 in (30 mm)
Depth 3.1 in (80 mm)
Net Weight 0.276 lb(US) (0.125 kg)

Environment 14

IP Degree of Protection IP20
Protective treatment Conformal coating
Marking CE, UKCA, CULus, RCM
Product certifications CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Standards EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5
Directives 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Ambient air temperature for operation -40…158 °F (-40…70 °C)
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Relative humidity 5…95 % without condensation
Operating altitude 0...6561.68 ft (0...2000 m), 2000...5000 m with derating
Pollution degree 2
Environmental characteristic Gas resistant CX & GX combined, Salt spray resistant
Vibration resistance 1 g without accessory, 2 g with accessory
Shock resistance 15 g 11 ms with and without accessory)
Show all 70 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number NTSAMI0210HK
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606486877333

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.125 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for NTSAMI0210HK

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
  • CCC
  • EAC
  • EN/IEC 61131-2
  • EN 61010-2-201
  • UL 61010-2-201
  • IACS E10
  • EN/IEC 61000-6-5
  • EN/IEC 61850-3
  • EN/IEC 60079-0
  • EN 50155
  • EN 50121-4
  • EN 50121-5
