Part number
NTSACI0802XHK
$473.11 On request Dispatch — · From TürkiyeGet a Quote
Modicon Edge I/O NTS

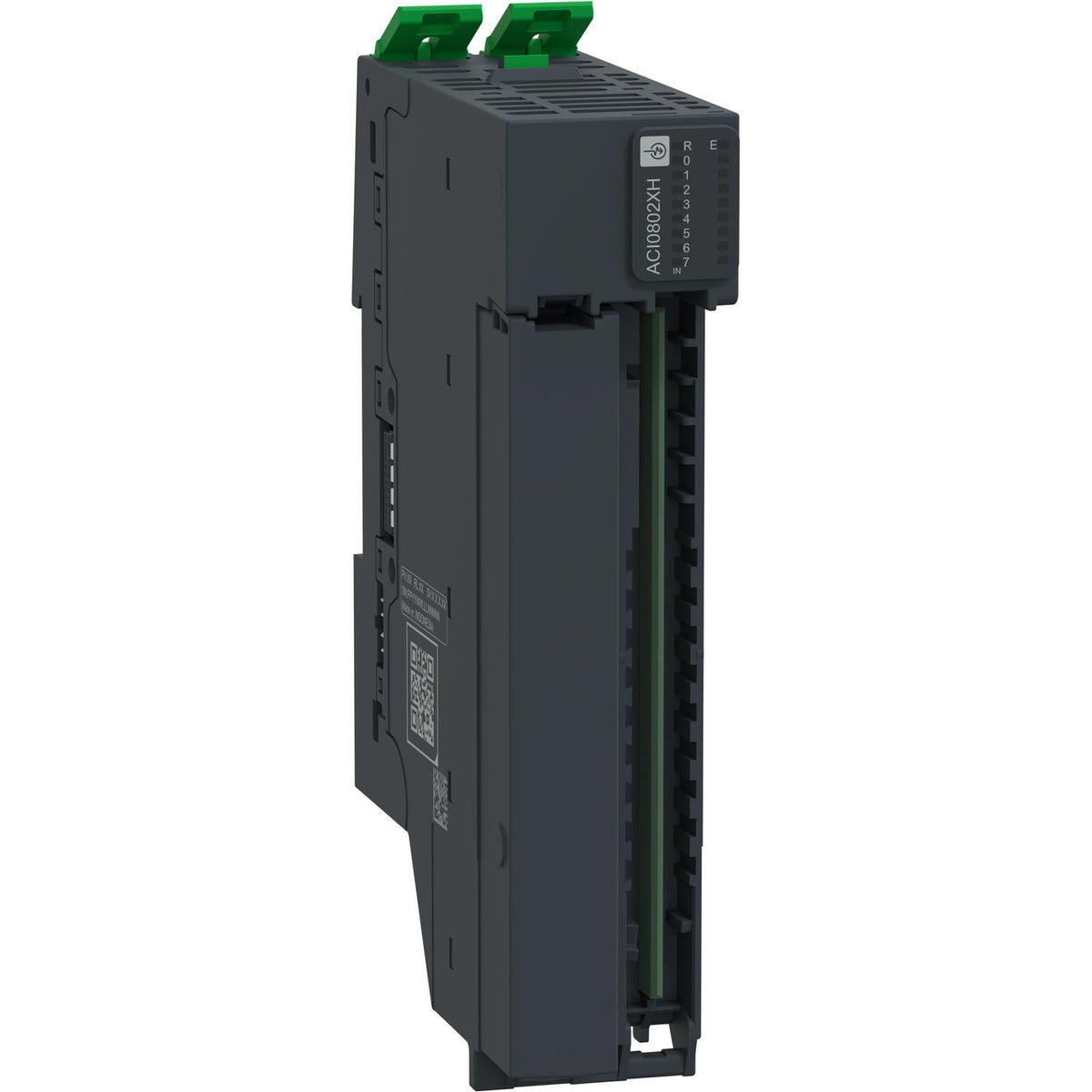

Schneider Electric NTSACI0802XHK Edge I/O NTS 8-Channel Hardened Current Analog Input Remote I/O Module

Modicon Edge I/O NTS hardened 8-channel current analog input kit, 1/2-wire, loop-powered, IP20.

Range of Product
Modicon Edge I/O NTS
Product or Component Type
Analog input module kit
Kit composition
NTSACI0802XH module, NTSXBA0200H base
Mandatory accessory
NTSXTB18_0_H terminal block
Product Compatibility
NTSN.....
Range Compatibility
Logic/motion controller - Modicon M262, Modicon M580, Third party
EAN
3606486877296
Description

About the NTSACI0802XHK

The Schneider Electric NTSACI0802XHK is a Modicon Edge I/O NTS analog input kit pairing a hardened NTSACI0802XH input module with an NTSXBA0200H base. It reads 8 current inputs (±20 mA, 0-20 mA, 4-20 mA) through 1- or 2-wire loop-powered connections at 15-bit-plus-sign resolution, operates from -20 to 60°C, and carries a conformal coating on its circuit boards for added environmental protection.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • RCM
  • EN/IEC 61131-2
  • EN 61010-2-201
  • UL 61010-2-201
  • IACS E10
  • EN/IEC 61000-6-5
  • EN/IEC 61850-3
  • EN/IEC 60079-0
  • EN 50155
  • EN 50121-4
  • EN 50121-5

Selection Notes

Specify this Hardened variant where the installation needs conformal-coated circuit boards — the coating, together with compliance to railway (EN 50155, EN 50121-4/5) and marine (IACS E10) vibration and EMC standards, suits control cabinets exposed to contamination, moisture or mechanical shock that a standard-environment module is not rated for. The 8-channel, 1- or 2-wire current input and loop-power architecture are unchanged from the non-hardened version of this kit, so the decision comes down to the operating environment rather than signal count.

Applications

The kit mounts on the NTS bus behind Modicon M262 and M580 controllers, and behind third-party controllers that support the NTS protocol. Per-channel diagnostics flag underflow, overflow, broken-wire, hardware, calibration and loop-power-supply faults, reported through a green RUN LED, a per-channel diagnostic LED and a red ERR LED on the module face. Hot-swap fallback lets a channel be replaced without stopping the rest of the I/O island.

Specification

Full specification

67 values · Last verified 30 Oct 2026

Main 9

Range of Product Modicon Edge I/O NTS
Product or Component Type Analog input module kit
Kit composition NTSACI0802XH module, NTSXBA0200H base
Mandatory accessory NTSXTB18_0_H terminal block
Product Compatibility NTSN.....
Range Compatibility Logic/motion controller - Modicon M262, Modicon M580, Third party
Device Application Industrial Application
Analogue input number 8
Operating Mode Isochronous/Asynchronous

Complementary 32

Analogue input type Current +/- 20 mA, Current 0...20 mA, Current 4...20 mA
Input wiring mode 1 or 2 wires
Analogue input resolution 15 bits + sign
Permitted overload on inputs 30 V at 50 mA maximum current
Input impedance 250 Ohm + internal current protector 10 Ohm typical
Sampling duration 1.595 ms per module
Input protection type Over current / miswiring protection per channel for current input
Sensor power supply protection Over current protection per channel, Short circuit protection on loop power supply per channel
Input diagnostic Underflow error per channel, Overflow error per channel, Broken wire error per channel, Hardware error per channel, Calibration error per channel, Loop power supply error per channel
LSB value 0.61 µA, +/-20 mA, 0.61 µA, 0...20 mA, 0.49 µA, 4...20 mA
Type of Cable Shielded cable
Temperature drift ± 0.004 % FS/ °C
Measurement error <= 0.1 % FS 25 °C, <= 0.3 % FS - 20…60 °C
Non-linearity <= 0.01 % FS voltage/current
Common mode rejection 90 dB
Sensor power supply 19.2…30 V DC Loop power
Power supply type Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc)
Rated operational voltage limits 20.4...28.8 V DC
Typical current consumption 36 mA 24 V DC on the Bus current, 24 mA 24 V DC on the internal field current minimum, 208.8 mA 24 V DC on the internal field current maximum
Power dissipation in W 2.3 W maximum at 24 V DC
Maximum cable distance between devices Shielded cable <3280.8 ft (1000 m) current input
Isolation between channels and bus 1500 V AC
Isolation between channels and field pwr No
Isolation between field power and bus 1500 V AC
Hot swapping fallback Yes
Local signalling 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module error (ERR)
Housing Colour Grey
Mounting support Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715
Height 4.8 in (121 mm)
Width 1.2 in (30 mm)
Depth 3.1 in (80 mm)
Net Weight 0.289 lb(US) (0.131 kg)

Environment 13

IP Degree of Protection IP20
Protective treatment Conformal coating
Marking CE, UKCA, CULus, RCM
Product certifications CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Standards EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5
Directives 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Ambient air temperature for operation -4…140 °F (-20…60 °C)
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Relative humidity 5…95 % without condensation
Operating altitude 0...6561.68 ft (0...2000 m), 2000...5000 m with derating
Pollution degree 2
Vibration resistance 1 g without accessory, 2 g with accessory
Shock resistance 15 g 11 ms with and without accessory)
Show all 67 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number NTSACI0802XHK
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606486877296

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.131 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for NTSACI0802XHK

No documents are on file for this part yet.
