Schneider Electric METSECTV35025 PowerLogic LVCT Solid Core CT 250 A 0.333 V RJ45 Current Transformer

% $-84.77

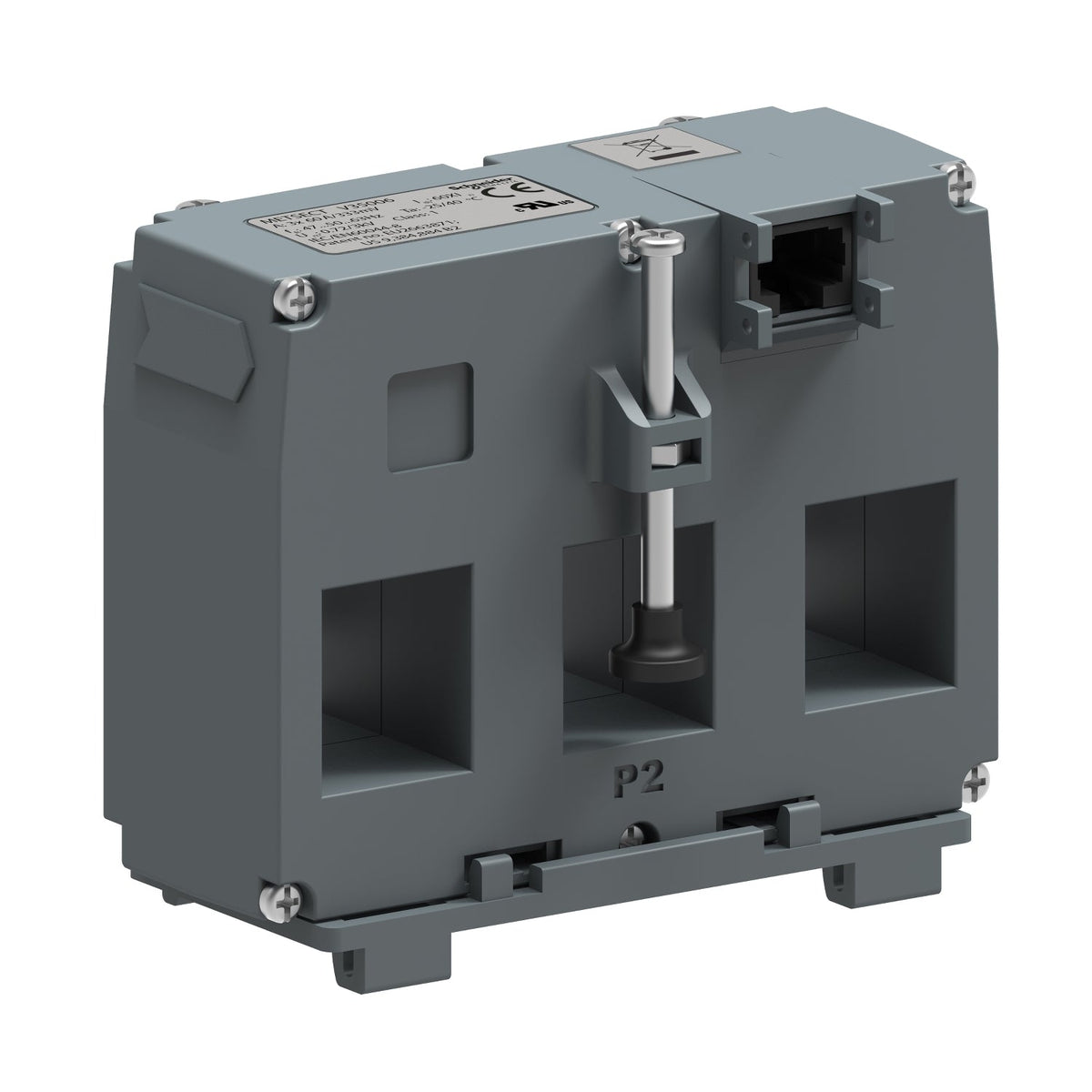

Schneider Electric METSECTV35025 PowerLogic LVCT solid core current transformer 250 A
Schneider Electric METSECTV35025 PowerLogic LVCT solid core current transformer 250 A

Schneider Electric METSECTV35025 PowerLogic LVCT Solid Core CT 250 A 0.333 V RJ45 Current Transformer

Brand: Schneider Electric
Reference No: METSECTV35025
Catalog No: METSECTV35025
Tariff Code (HS): 850431
Rated Current: 250 A
Communication: RJ45
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$84.77

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECTV35025 is a PowerLogic LVCT, a low-voltage triple solid-core current transformer rated 250 A with a 0.333 V output. It connects to compatible PM2210R, PM2220R, PM5310R, and PM5320R energy meters with a single RJ45 cable, replacing three separate CTs on a 35 mm centre-to-centre busbar or cable set.

Technical Specifications

Reference METSECTV35025
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, measurement accessory
Current transformer type Triple solid core
Rated current (In) 250 A
Output voltage 0.333 V
Measurement accuracy +/- 0.5 %
Network frequency 50 Hz / 60 Hz
Distance between centres 35 mm
Bus bar opening 25 x 21 mm
Connection RJ45
Compatible meters PM2210R, PM2220R, PM5310R, PM5320R
Dimensions (W x H x D) 105 x 80 x 54 mm
Net weight 550 g

Certifications & Standards

  • CE
  • UL
  • EN 60044-8
  • EN 61869-2
  • UL 61010
  • IEC 61010

Selection Notes

The METSECTV35025 is the highest-current unit that still fits the 35 mm-centre, 25 x 21 mm bus bar window of this LVCT block, covering feeders up to 250 A. If the installed bar spacing is wider than 35 mm, the METSECTV45025 carries the same 250 A rating in a 45 mm-centre, 31 x 31 mm window instead of forcing this narrower unit onto a bar it cannot clamp.

Technical Details

Short Description
PowerLogic LVCT 3-in-1 solid-core CT, 250 A, 0.333 V output, RJ45 to PM2200R/PM5300R meters.
Rated Current (Ampere)
250 A
Mounting Type
Busbar or cable, RJ45 link to meter
Catalog No
METSECTV35025
Delivery Date (Days)
30 days
Model Number
LVCT
Tariff Code
850431
