Schneider Electric METSECTV35020 PowerLogic LVCT Solid Core CT 200 A 0.333 V RJ45 Current Transformer

% $-83.97

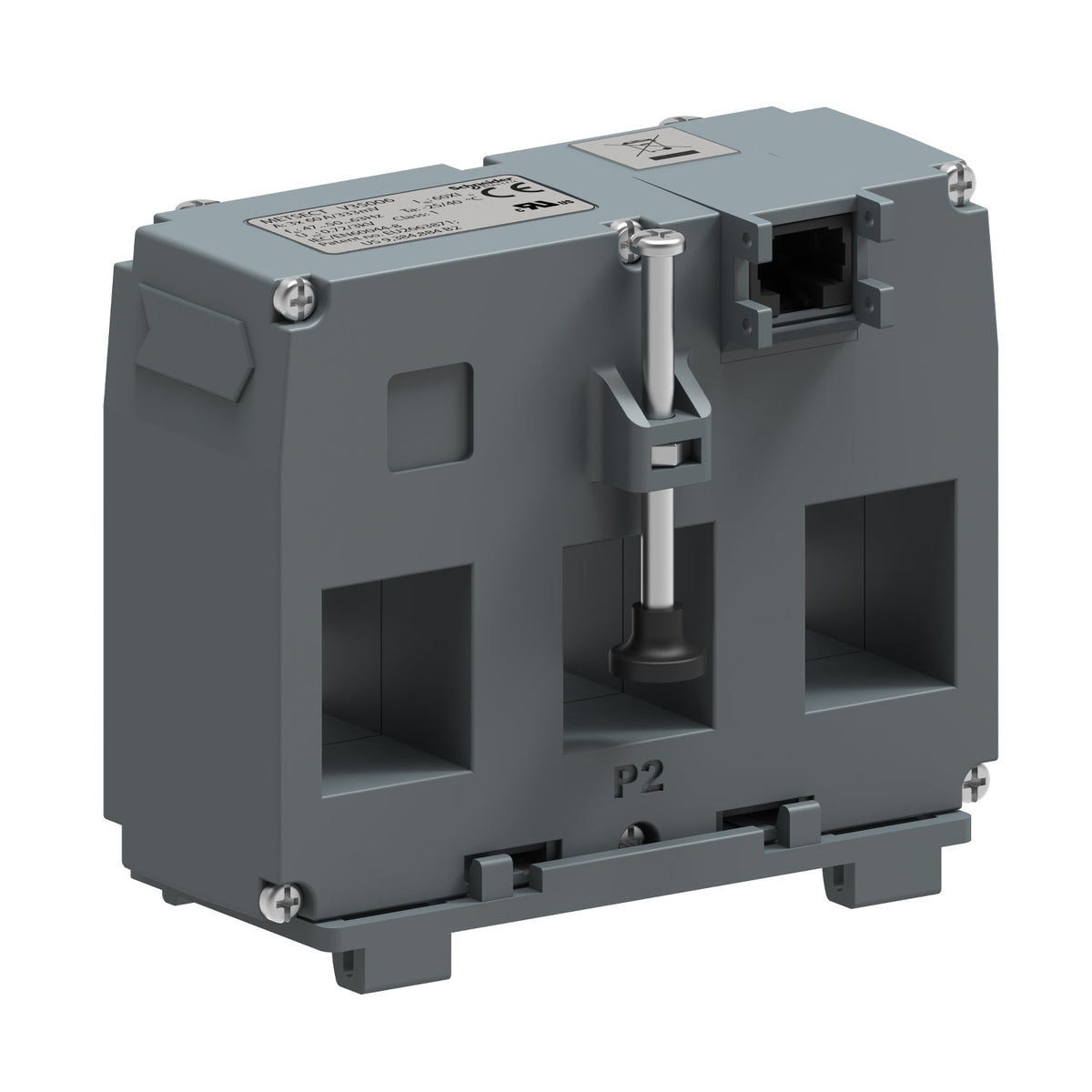

Schneider Electric METSECTV35020 PowerLogic LVCT solid core current transformer 200 A
Schneider Electric METSECTV35020 PowerLogic LVCT solid core current transformer 200 A

Schneider Electric METSECTV35020 PowerLogic LVCT Solid Core CT 200 A 0.333 V RJ45 Current Transformer

Brand: Schneider Electric
Reference No: METSECTV35020
Catalog No: METSECTV35020
Tariff Code (HS): 850431
Rated Current: 200 A
Communication: RJ45
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$83.97

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECTV35020 is a PowerLogic LVCT, a low-voltage triple solid-core current transformer rated 200 A with a 0.333 V output. It connects to compatible PM2210R, PM2220R, PM5310R, and PM5320R energy meters with a single RJ45 cable, replacing three separate CTs on a 35 mm centre-to-centre busbar or cable set.

Technical Specifications

Reference METSECTV35020
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, measurement accessory
Current transformer type Triple solid core
Rated current (In) 200 A
Output voltage 0.333 V
Measurement accuracy +/- 0.5 %
Network frequency 50 Hz / 60 Hz
Distance between centres 35 mm
Bus bar opening 25 x 21 mm
Connection RJ45
Compatible meters PM2210R, PM2220R, PM5310R, PM5320R
Dimensions (W x H x D) 105 x 80 x 54 mm
Net weight 550 g

Certifications & Standards

  • CE
  • UL
  • EN 60044-8
  • EN 61869-2
  • UL 61010
  • IEC 61010

Selection Notes

The METSECTV35020 fills the gap between the 160 A and 250 A steps of the 35 mm-centre LVCT block, giving a tighter current match on 200 A feeders than either adjacent size. It keeps the same 25 x 21 mm bus bar opening and RJ45 connection as the rest of the block, so it drops into an existing METSECTV35xxx installation without any wiring change at the meter.

Technical Details

Short Description
PowerLogic LVCT 3-in-1 solid-core CT, 200 A, 0.333 V output, RJ45 to PM2200R/PM5300R meters.
Rated Current (Ampere)
200 A
Mounting Type
Busbar or cable, RJ45 link to meter
Catalog No
METSECTV35020
Delivery Date (Days)
30 days
Model Number
LVCT
Tariff Code
850431
