Schneider Electric METSECTV35016 PowerLogic LVCT solid core current transformer 160 A

Schneider Electric METSECTV35016 PowerLogic LVCT Solid Core CT 160 A 0.333 V RJ45 Current Transformer

Name: Schneider Electric METSECTV35016 PowerLogic LVCT Solid Core CT 160 A 0.333 V RJ45 Current Transformer
Brand: Schneider Electric
SKU: METSECTV35016
Price: 86.5 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: METSECTV35016

Catalog No: METSECTV35016

Tariff Code (HS): 850431

Rated Current: 160 A

Communication: RJ45

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$86.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

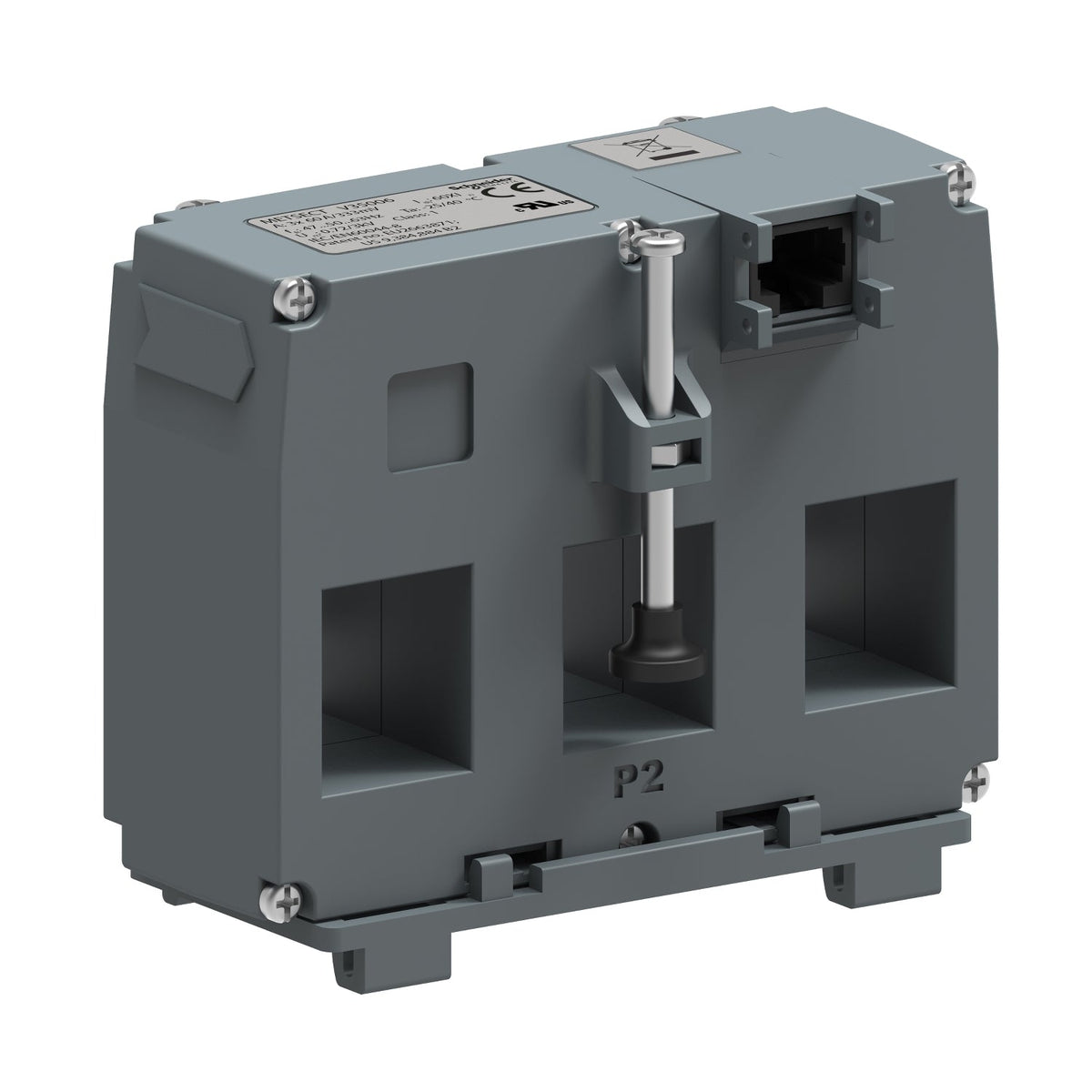

The Schneider Electric METSECTV35016 is a PowerLogic LVCT, a low-voltage triple solid-core current transformer rated 160 A with a 0.333 V output. It connects to compatible PM2210R, PM2220R, PM5310R, and PM5320R energy meters with a single RJ45 cable, replacing three separate CTs on a 35 mm centre-to-centre busbar or cable set.

Technical Specifications

Reference	METSECTV35016
Brand	Schneider Electric
Range	PowerLogic
Product type	Current transformer, measurement accessory
Current transformer type	Triple solid core
Rated current (In)	160 A
Output voltage	0.333 V
Measurement accuracy	+/- 0.5 %
Network frequency	50 Hz / 60 Hz
Distance between centres	35 mm
Bus bar opening	25 x 21 mm
Connection	RJ45
Compatible meters	PM2210R, PM2220R, PM5310R, PM5320R
Dimensions (W x H x D)	105 x 80 x 54 mm
Net weight	550 g

Certifications & Standards

CE
UL
EN 60044-8
EN 61869-2
UL 61010
IEC 61010

Selection Notes

The METSECTV35016 covers 160 A feeders, the second-highest current step in the 35 mm-centre LVCT block before the installation outgrows the 25 x 21 mm bus bar opening. Past this rating, the 250 A METSECTV35025 still fits the same 35 mm centre spacing, while the 45 mm-centre METSECTV45025 is the option if the bar geometry itself needs the wider window.

Technical Details

Short Description

PowerLogic LVCT 3-in-1 solid-core CT, 160 A, 0.333 V output, RJ45 to PM2200R/PM5300R meters.

Rated Current (Ampere)

160 A

Mounting Type

Busbar or cable, RJ45 link to meter

Catalog No

METSECTV35016

Delivery Date (Days)

30 days

Model Number

LVCT

Tariff Code

850431
