Schneider Electric METSECTV35013 PowerLogic LVCT Solid Core CT 125 A 0.333 V RJ45 Current Transformer

% $-75.37

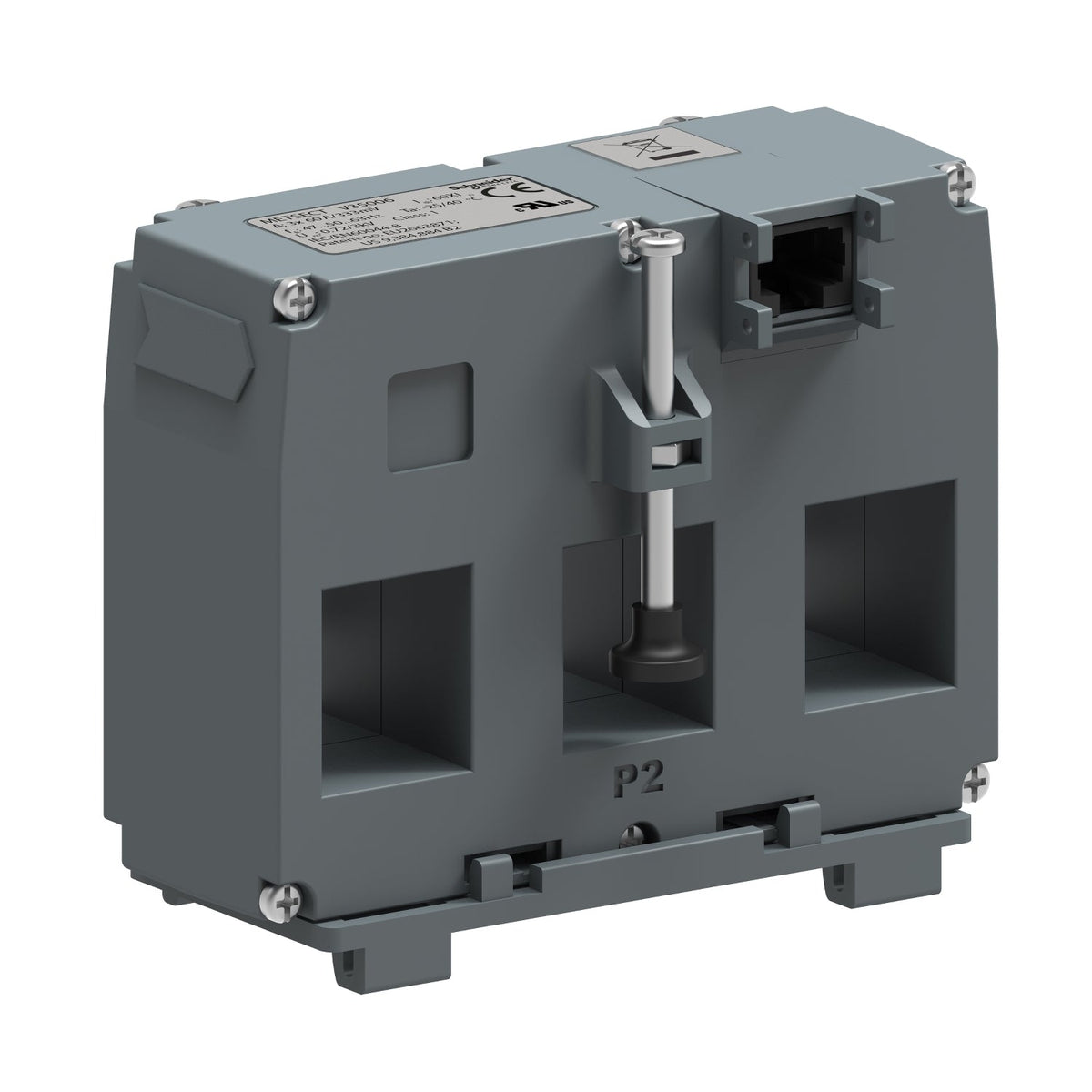

Schneider Electric METSECTV35013 PowerLogic LVCT solid core current transformer 125 A
Schneider Electric METSECTV35013 PowerLogic LVCT solid core current transformer 125 A

Schneider Electric METSECTV35013 PowerLogic LVCT Solid Core CT 125 A 0.333 V RJ45 Current Transformer

Brand: Schneider Electric
Reference No: METSECTV35013
Catalog No: METSECTV35013
Tariff Code (HS): 850431
Rated Current: 125 A
Communication: RJ45
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$75.37

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECTV35013 is a PowerLogic LVCT, a low-voltage triple solid-core current transformer rated 125 A with a 0.333 V output. It connects to compatible PM2210R, PM2220R, PM5310R, and PM5320R energy meters with a single RJ45 cable, replacing three separate CTs on a 35 mm centre-to-centre busbar or cable set.

Technical Specifications

Reference METSECTV35013
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, measurement accessory
Current transformer type Triple solid core
Rated current (In) 125 A
Output voltage 0.333 V
Measurement accuracy +/- 0.5 %
Network frequency 50 Hz / 60 Hz
Distance between centres 35 mm
Bus bar opening 25 x 21 mm
Connection RJ45
Compatible meters PM2210R, PM2220R, PM5310R, PM5320R
Dimensions (W x H x D) 105 x 80 x 54 mm
Net weight 550 g

Certifications & Standards

  • CE
  • UL
  • EN 60044-8
  • EN 61869-2
  • UL 61010
  • IEC 61010

Selection Notes

The METSECTV35013 sits between the 100 A and 160 A steps of the 35 mm-centre LVCT block, giving a closer current match on a 125 A feeder than either neighbouring size would. Since the body, RJ45 connection, and bus bar opening are shared across the block, swapping to a different rated current later does not require rewiring the meter side.

Technical Details

Short Description
PowerLogic LVCT 3-in-1 solid-core CT, 125 A, 0.333 V output, RJ45 to PM2200R/PM5300R meters.
Rated Current (Ampere)
125 A
Mounting Type
Busbar or cable, RJ45 link to meter
Catalog No
METSECTV35013
Delivery Date (Days)
30 days
Model Number
LVCT
Tariff Code
850431
