Schneider Electric METSECT5VV600 PowerLogic CT VV Type 6000/5 A 55x165 mm Busbar Current Transformer

% $-576.43

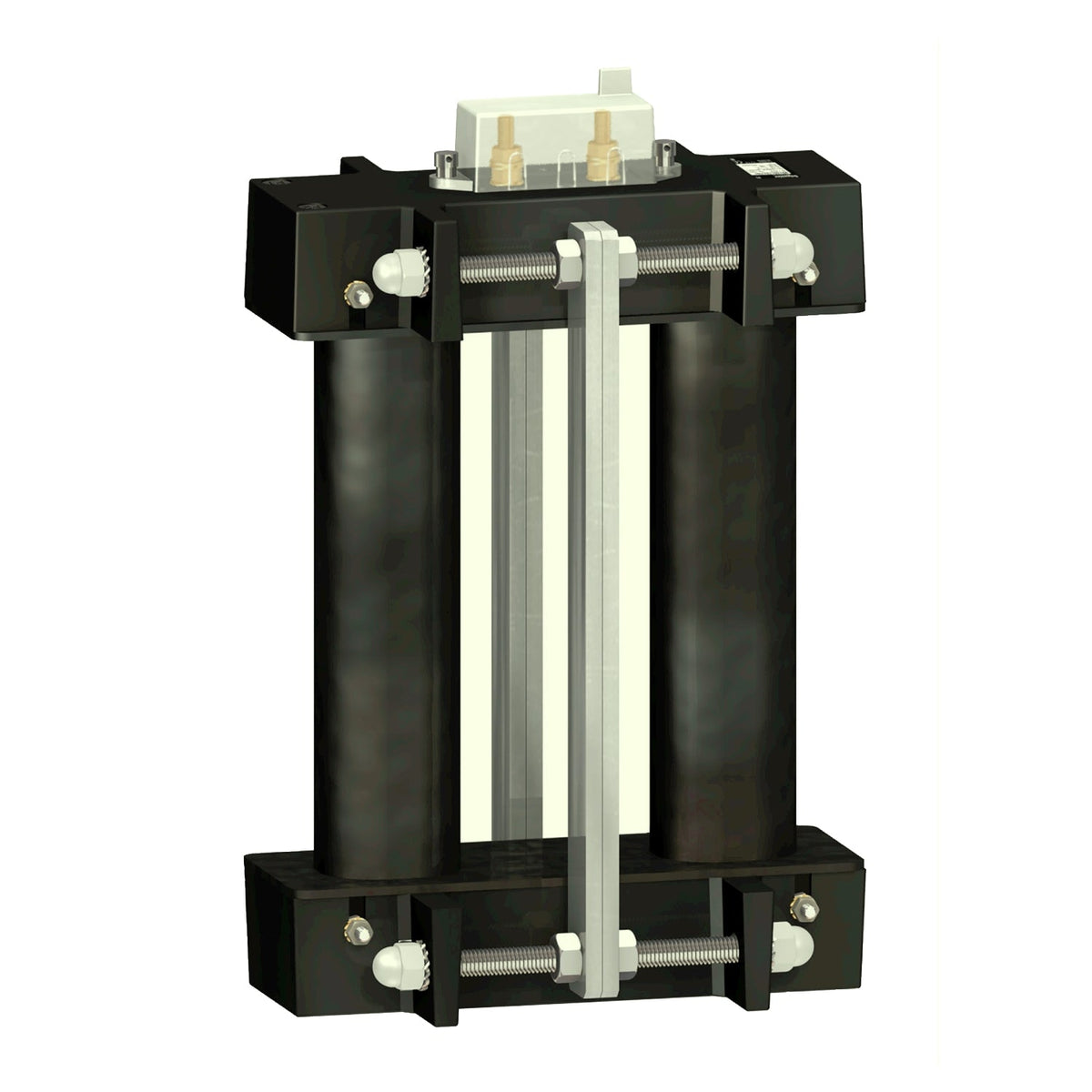

Schneider Electric METSECT5VV600 PowerLogic CT VV type 6000/5 A busbar current transformer
Schneider Electric METSECT5VV600 PowerLogic CT VV type 6000/5 A busbar current transformer

Schneider Electric METSECT5VV600 PowerLogic CT VV Type 6000/5 A 55x165 mm Busbar Current Transformer

Brand: Schneider Electric
Reference No: METSECT5VV600
Catalog No: METSECT5VV600
Tariff Code (HS): 850431
Rated Current: 6000 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$576.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECT5VV600 is a PowerLogic VV-type current transformer for main switchboard metering, rated 6000/5 A for busbar mounting only. It fits a single 165 x 55 mm bus bar opening and delivers Class 0.5 accuracy at a 70 VA burden, built for the highest-current feeders in the PowerLogic CT range.

Technical Specifications

Reference METSECT5VV600
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, tropicalised for busbar
Current transformer ratio 6000/5 A
Accuracy class Class 0.5 at 70 VA
Rated thermal current (Ith) 60 kA
Dynamic withstand current 2.5 x Ith
Maximum safety factor 10
Rated operational voltage (Ue) < 720 V AC 50/60 Hz
Electrical insulation class Class B
Rated impulse withstand voltage (Uimp) 3 kV
Bus bar opening 165 x 55 mm, single output
Mounting mode Insulated locking screw
Mounting support Busbar
Dimensions (W x H x D) 175 x 242 x 110 mm
Sealing With
IP degree of protection IP20
Ambient operating temperature -25...50 C
Net weight 3.4 kg

Certifications & Standards

  • EAC
  • CE
  • IEC 61869-2
  • VDE 0414

Selection Notes

The METSECT5VV600 shares the VV500's 165 x 55 mm busbar window and 175 x 242 x 110 mm body but carries 6000 A primary current at a higher 70 VA burden, so the choice between the two comes down to the feeder's rated current rather than the physical bar size. The 60 kA thermal current and safety factor of 10 stay the same across both, keeping fault performance consistent at the top of the VV range.

Technical Details

Short Description
PowerLogic VV-type busbar current transformer, 6000/5 A ratio, Class 0.5 at 70 VA, 55 x 165 mm opening.
Rated Current (Ampere)
6000 A
Mounting Type
Busbar
Protection Type
IP20
Catalog No
METSECT5VV600
Delivery Date (Days)
30 days
Model Number
CT
Tariff Code
850431
