Schneider Electric METSECT5MD060 PowerLogic CT MD Type 600/5 A Class 1 40 mm Current Transformer

% $-35.04

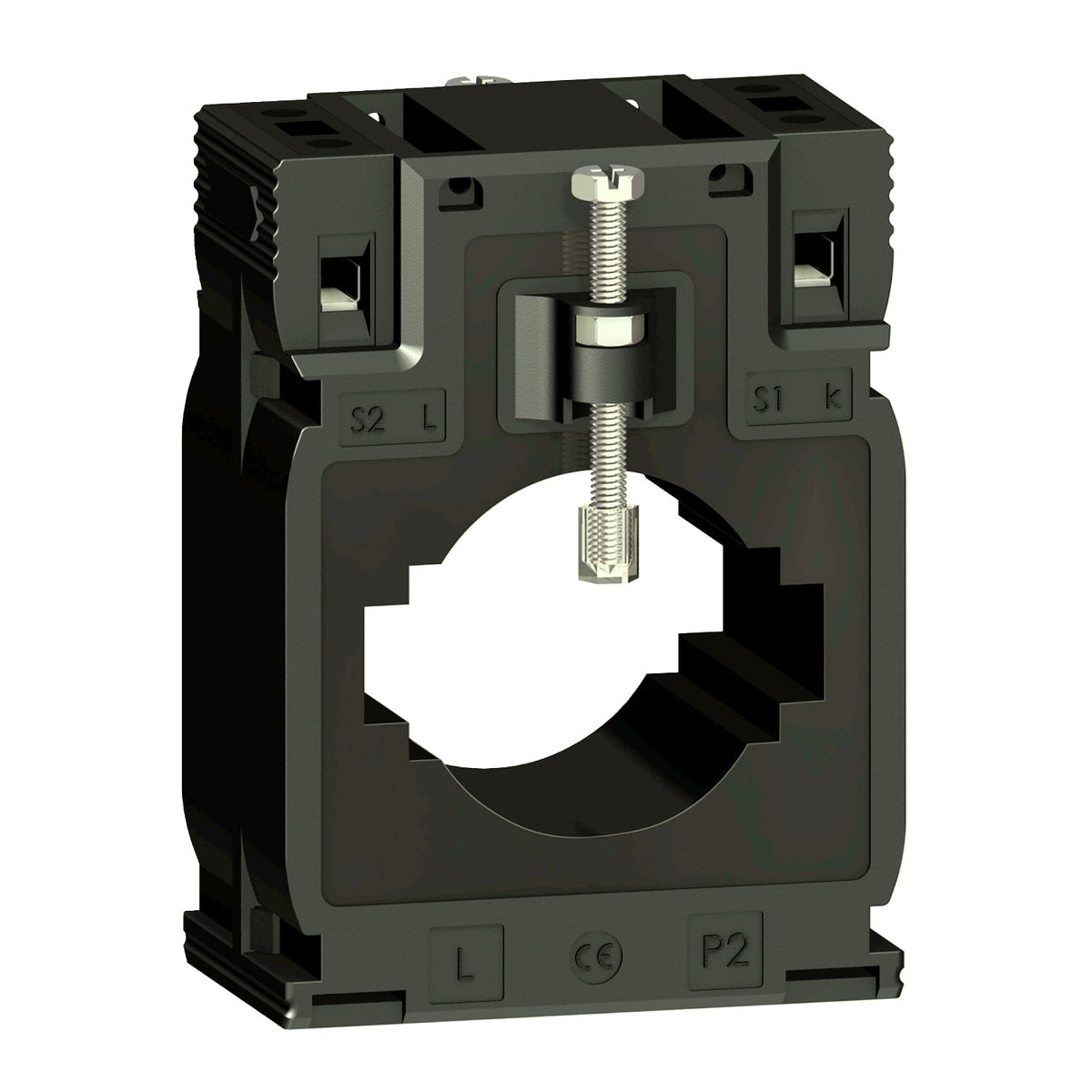

Schneider Electric METSECT5MD060 PowerLogic CT MD type 600/5 A current transformer
Schneider Electric METSECT5MD060 PowerLogic CT MD type 600/5 A current transformer

Schneider Electric METSECT5MD060 PowerLogic CT MD Type 600/5 A Class 1 40 mm Current Transformer

Brand: Schneider Electric
Reference No: METSECT5MD060
Catalog No: METSECT5MD060
Tariff Code (HS): 850431
Rated Current: 600 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$35.04

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECT5MD060 is a PowerLogic MD-type current transformer for panel metering, rated 600/5 A for busbar and cable installation. It accepts cables up to 40 mm in diameter or a 50.5 x 12.5 mm / 40.5 x 20.5 mm bus bar, delivering Class 0.5 accuracy at 6 VA burden or Class 1 at 8 VA.

Technical Specifications

Reference METSECT5MD060
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, tropicalised for busbar and cable
Current transformer ratio 600/5 A
Accuracy class Class 0.5 at 6 VA / Class 1 at 8 VA
Rated thermal current (Ith) 36 kA
Dynamic withstand current 2.5 x Ith
Maximum safety factor 5
Rated operational voltage (Ue) < 720 V AC 50/60 Hz
Electrical insulation class Class B
Rated impulse withstand voltage (Uimp) 3 kV
Cable outer diameter 40 mm
Bus bar opening 50.5 x 12.5 mm or 40.5 x 20.5 mm
Mounting mode Clip-on, by screws, or insulated locking screw
Mounting support DIN rail, busbar, or mounting plate
Dimensions (W x H x D) 70 x 95 x 65 mm
IP degree of protection IP20
Ambient operating temperature -25...60 C
Net weight 0.349 kg

Certifications & Standards

  • EAC
  • CE
  • IEC 61869-2
  • VDE 0414

Selection Notes

The METSECT5MD060 matches the 600 A rating of the MC060 unit but in the wider 40 mm cable window, so it is the pick when the conductor itself, rather than the current, has outgrown the 32 mm MC family. The 36 kA thermal current and 2.5x Ith dynamic withstand carry over unchanged from the MC equivalent, keeping fault performance consistent across both window sizes.

Technical Details

Short Description
PowerLogic MD-type tropicalised CT, 600/5 A ratio, Class 0.5/1 accuracy, 40 mm cable or dual busbar opening.
Rated Current (Ampere)
600 A
Mounting Type
Busbar, cable, or DIN rail
Protection Type
IP20
Catalog No
METSECT5MD060
Delivery Date (Days)
30 days
Model Number
CT
Tariff Code
850431
