Schneider Electric METSECT5MD050 PowerLogic CT MD Type 500/5 A Class 1 40 mm Current Transformer

% $-35.04

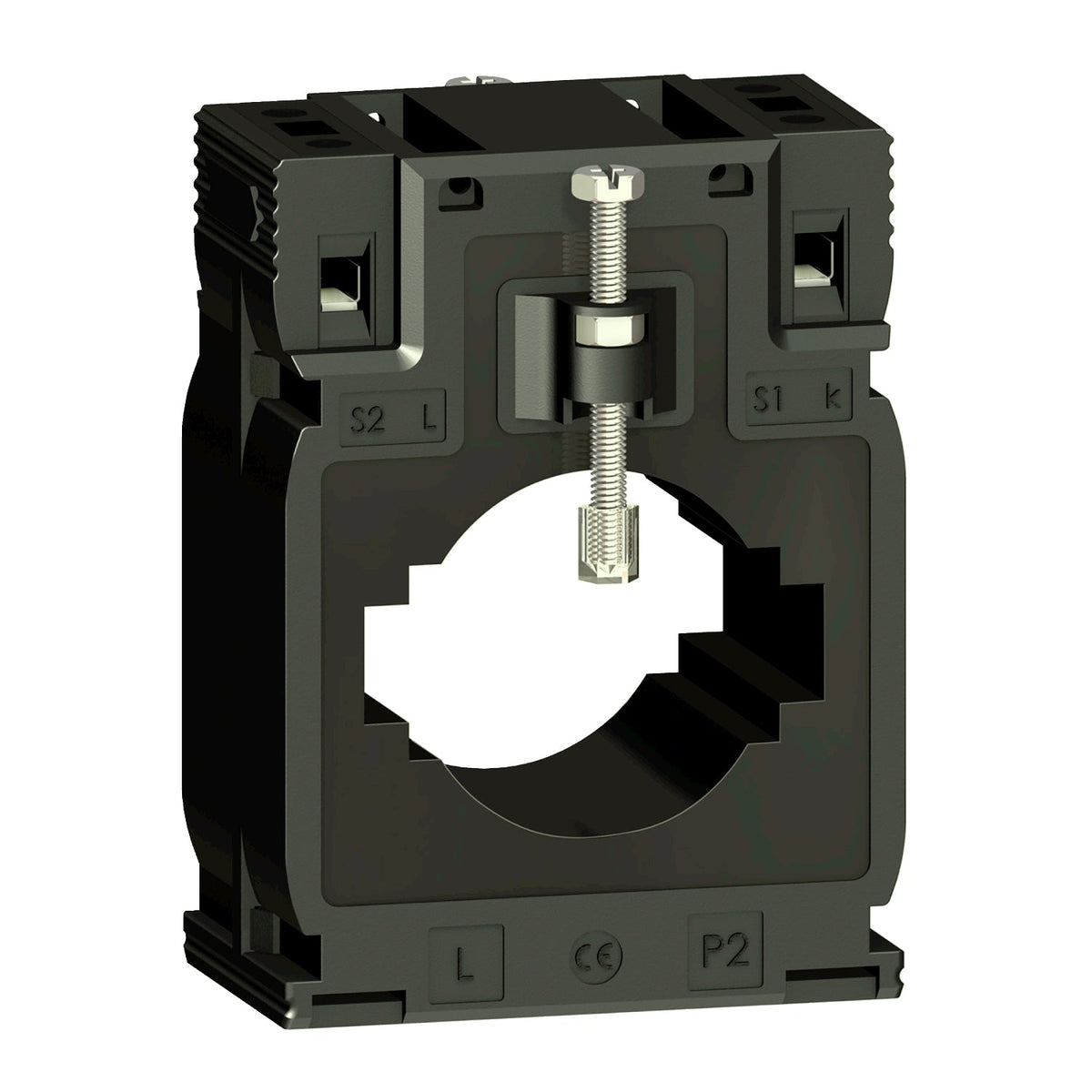

Schneider Electric METSECT5MD050 PowerLogic CT MD type 500/5 A current transformer
Schneider Electric METSECT5MD050 PowerLogic CT MD type 500/5 A current transformer

Schneider Electric METSECT5MD050 PowerLogic CT MD Type 500/5 A Class 1 40 mm Current Transformer

Brand: Schneider Electric
Reference No: METSECT5MD050
Catalog No: METSECT5MD050
Tariff Code (HS): 850431
Rated Current: 500 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$35.04

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECT5MD050 is a PowerLogic MD-type current transformer for panel metering, rated 500/5 A for busbar and cable installation. It accepts cables up to 40 mm in diameter or a 50.5 x 12.5 mm / 40.5 x 20.5 mm bus bar, delivering Class 0.5 accuracy at 4 VA burden or Class 1 at 6 VA.

Technical Specifications

Reference METSECT5MD050
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, tropicalised for busbar and cable
Current transformer ratio 500/5 A
Accuracy class Class 0.5 at 4 VA / Class 1 at 6 VA
Rated thermal current (Ith) 30 kA
Dynamic withstand current 2.5 x Ith
Maximum safety factor 5
Rated operational voltage (Ue) < 720 V AC 50/60 Hz
Electrical insulation class Class B
Rated impulse withstand voltage (Uimp) 3 kV
Cable outer diameter 40 mm
Bus bar opening 50.5 x 12.5 mm or 40.5 x 20.5 mm
Mounting mode Insulated locking screw, clip-on, or by screws
Mounting support DIN rail, busbar, or mounting plate
Dimensions (W x H x D) 70 x 95 x 65 mm
IP degree of protection IP20
Ambient operating temperature -25...60 C
Net weight 0.329 kg

Certifications & Standards

  • CE
  • VDE 0414
  • IEC 61869-2

Selection Notes

The METSECT5MD050 steps up to a 40 mm cable window once a feeder's conductor outgrows the 32 mm MC family, while keeping the same 500 A primary rating as the equivalent MC050 unit. Its 30 kA thermal current and 2.5x Ith dynamic withstand match that rating, so pick it specifically when the physical cable or bar size, not the current, is what the MC body can no longer fit.

Technical Details

Short Description
PowerLogic MD-type tropicalised CT, 500/5 A ratio, Class 0.5/1 accuracy, 40 mm cable or dual busbar opening.
Rated Current (Ampere)
500 A
Mounting Type
Busbar, cable, or DIN rail
Protection Type
IP20
Catalog No
METSECT5MD050
Delivery Date (Days)
30 days
Model Number
CT
Tariff Code
850431
