Schneider Electric METSECT5MC060 PowerLogic CT MC Type 600/5 A Class 1 32 mm Current Transformer

% $-30.77

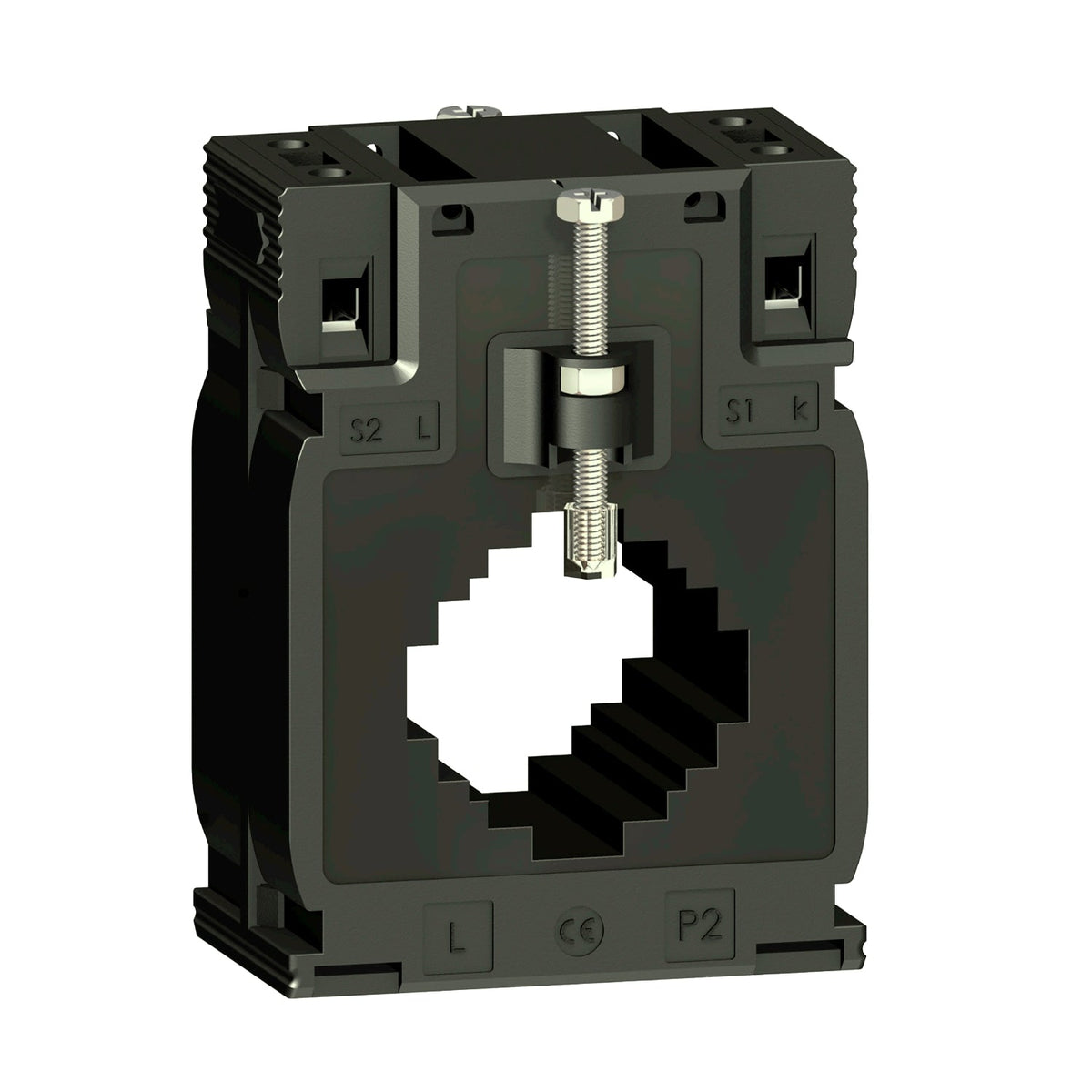

Schneider Electric METSECT5MC060 PowerLogic CT MC type 600/5 A current transformer
Schneider Electric METSECT5MC060 PowerLogic CT MC type 600/5 A current transformer

Schneider Electric METSECT5MC060 PowerLogic CT MC Type 600/5 A Class 1 32 mm Current Transformer

Brand: Schneider Electric
Reference No: METSECT5MC060
Catalog No: METSECT5MC060
Tariff Code (HS): 850431
Rated Current: 600 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$30.77

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECT5MC060 is a PowerLogic MC-type current transformer for panel metering, rated 600/5 A for busbar and cable installation. It accepts cables up to 32 mm in diameter or a 40.5 x 10.5 / 32.5 x 20.5 / 25.5 x 25.5 mm bus bar, delivering Class 0.5 accuracy at 12 VA burden or Class 1 at 15 VA.

Technical Specifications

Reference METSECT5MC060
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, tropicalised for busbar and cable
Current transformer ratio 600/5 A
Accuracy class Class 0.5 at 12 VA / Class 1 at 15 VA
Rated thermal current (Ith) 36 kA
Dynamic withstand current 2.5 x Ith
Maximum safety factor 5
Rated operational voltage (Ue) < 720 V AC 50/60 Hz
Rated insulation voltage (Ui) 3 kV 50 Hz for 1 minute
Rated impulse withstand voltage (Uimp) 3 kV
Electrical insulation class Class B
Cable outer diameter 32 mm
Bus bar opening 40.5 x 10.5 / 32.5 x 20.5 / 25.5 x 25.5 mm
Mounting mode By screws, clip-on, or insulated locking screw
Mounting support DIN rail, mounting plate, or busbar
Window dimensions 70 x 95 mm outside, 41 x 41 mm inner
IP degree of protection IP20
Ambient operating temperature -25...60 C
Net weight 0.449 kg

Certifications & Standards

  • CE
  • EAC
  • VDE 0414
  • IEC 61869-2

Selection Notes

The METSECT5MC060 is the highest-current member of the 32 mm MC window, rated 600 A primary with a 36 kA thermal current that is the largest in the family before stepping up to the 40 mm MD bodies. Use it on feeders near the physical limit of the MC window rather than the 500 A unit, since the extra thermal margin matters more as the circuit approaches a 600 A breaker.

Technical Details

Short Description
PowerLogic MC-type tropicalised CT, 600/5 A ratio, Class 0.5/1 accuracy, 32 mm cable or triple busbar opening.
Rated Current (Ampere)
600 A
Mounting Type
Busbar, cable, or DIN rail
Protection Type
IP20
Catalog No
METSECT5MC060
Delivery Date (Days)
30 days
Model Number
CT
Tariff Code
850431
