Schneider Electric METSECT5MC040 PowerLogic CT MC Type 400/5 A Class 1 32 mm Current Transformer

% $-25.45

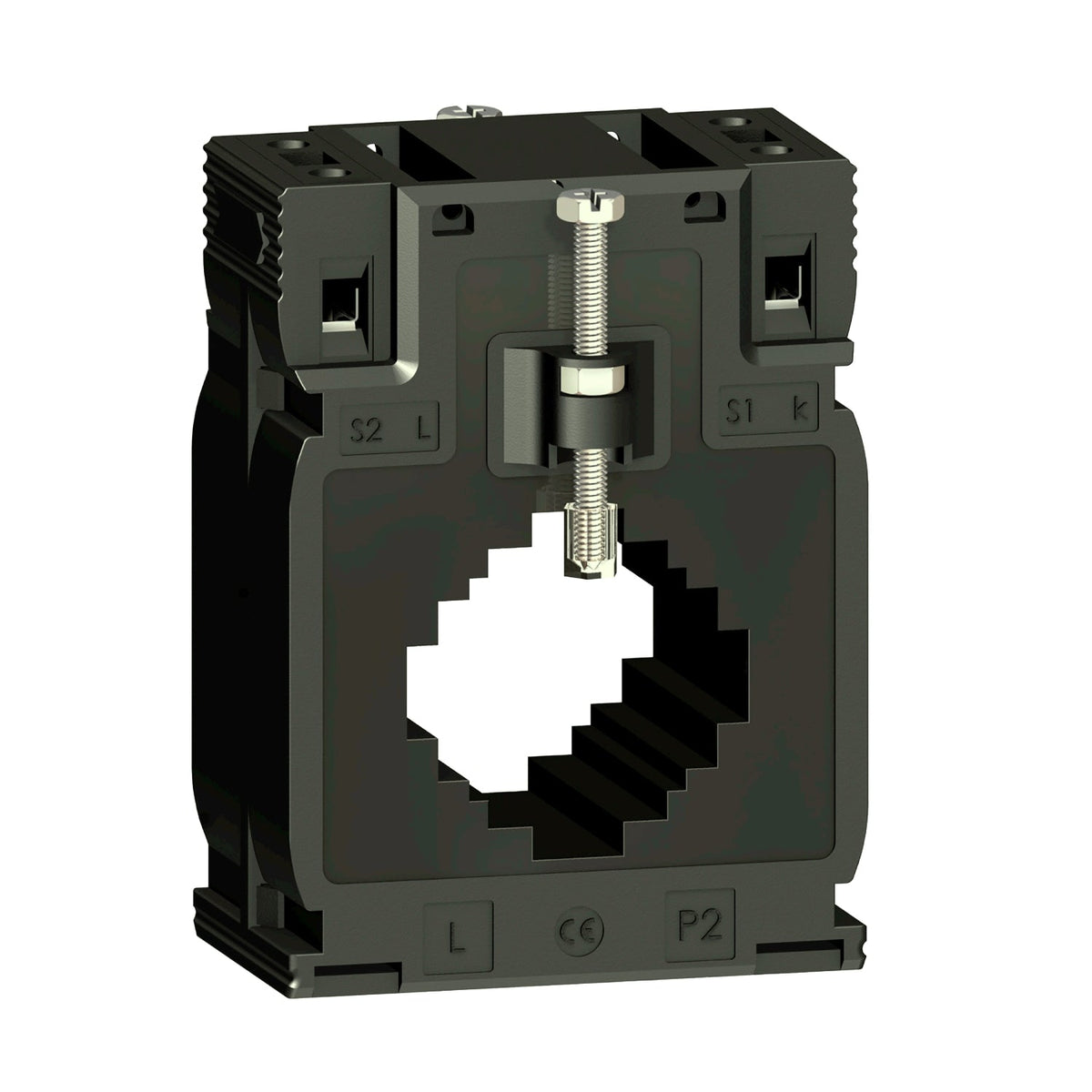

Schneider Electric METSECT5MC040 PowerLogic CT MC type 400/5 A current transformer
Schneider Electric METSECT5MC040 PowerLogic CT MC type 400/5 A current transformer

Schneider Electric METSECT5MC040 PowerLogic CT MC Type 400/5 A Class 1 32 mm Current Transformer

Brand: Schneider Electric
Reference No: METSECT5MC040
Catalog No: METSECT5MC040
Tariff Code (HS): 850431
Rated Current: 400 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$25.45

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECT5MC040 is a PowerLogic MC-type current transformer for panel metering, rated 400/5 A for busbar and cable installation. It accepts cables up to 32 mm in diameter or a 40.5 x 10.5 / 32.5 x 20.5 / 25.5 x 25.5 mm bus bar, delivering Class 0.5 accuracy at 8 VA burden or Class 1 at 10 VA.

Technical Specifications

Reference METSECT5MC040
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, tropicalised for busbar and cable
Current transformer ratio 400/5 A
Accuracy class Class 0.5 at 8 VA / Class 1 at 10 VA
Rated thermal current (Ith) 24 kA
Dynamic withstand current 2.5 x Ith
Maximum safety factor 5
Rated operational voltage (Ue) < 720 V AC 50/60 Hz
Rated insulation voltage (Ui) 3 kV 50 Hz for 1 minute
Rated impulse withstand voltage (Uimp) 3 kV
Electrical insulation class Class B
Cable outer diameter 32 mm
Bus bar opening 40.5 x 10.5 / 32.5 x 20.5 / 25.5 x 25.5 mm
Mounting mode Insulated locking screw, clip-on, or by screws
Mounting support Busbar, DIN rail, or mounting plate
Window dimensions 70 x 95 mm outside, 41 x 41 mm inner
IP degree of protection IP20
Ambient operating temperature -25...60 C
Net weight 0.404 kg

Certifications & Standards

  • EAC
  • CE
  • VDE 0414
  • IEC 61869-2

Selection Notes

The METSECT5MC040 is the top-rated unit in the 32 mm MC window, carrying 400 A primary current before the family steps up to the larger-diameter MD type. Its 24 kA thermal current and 2.5x Ith dynamic withstand make it suited to a main sub-feeder rather than a branch circuit. If the installed conductor exceeds 32 mm, the MD050 in the same PowerLogic range is the correct step up rather than forcing this unit onto an oversized cable.

Technical Details

Short Description
PowerLogic MC-type tropicalised CT, 400/5 A ratio, Class 0.5/1 accuracy, 32 mm cable or triple busbar opening.
Rated Current (Ampere)
400 A
Mounting Type
Busbar, cable, or DIN rail
Protection Type
IP20
Catalog No
METSECT5MC040
Delivery Date (Days)
30 days
Model Number
CT
Tariff Code
850431
