Schneider Electric METSECT5MC030 PowerLogic CT MC Type 300/5 A Class 1 32 mm Current Transformer

% $-24.78

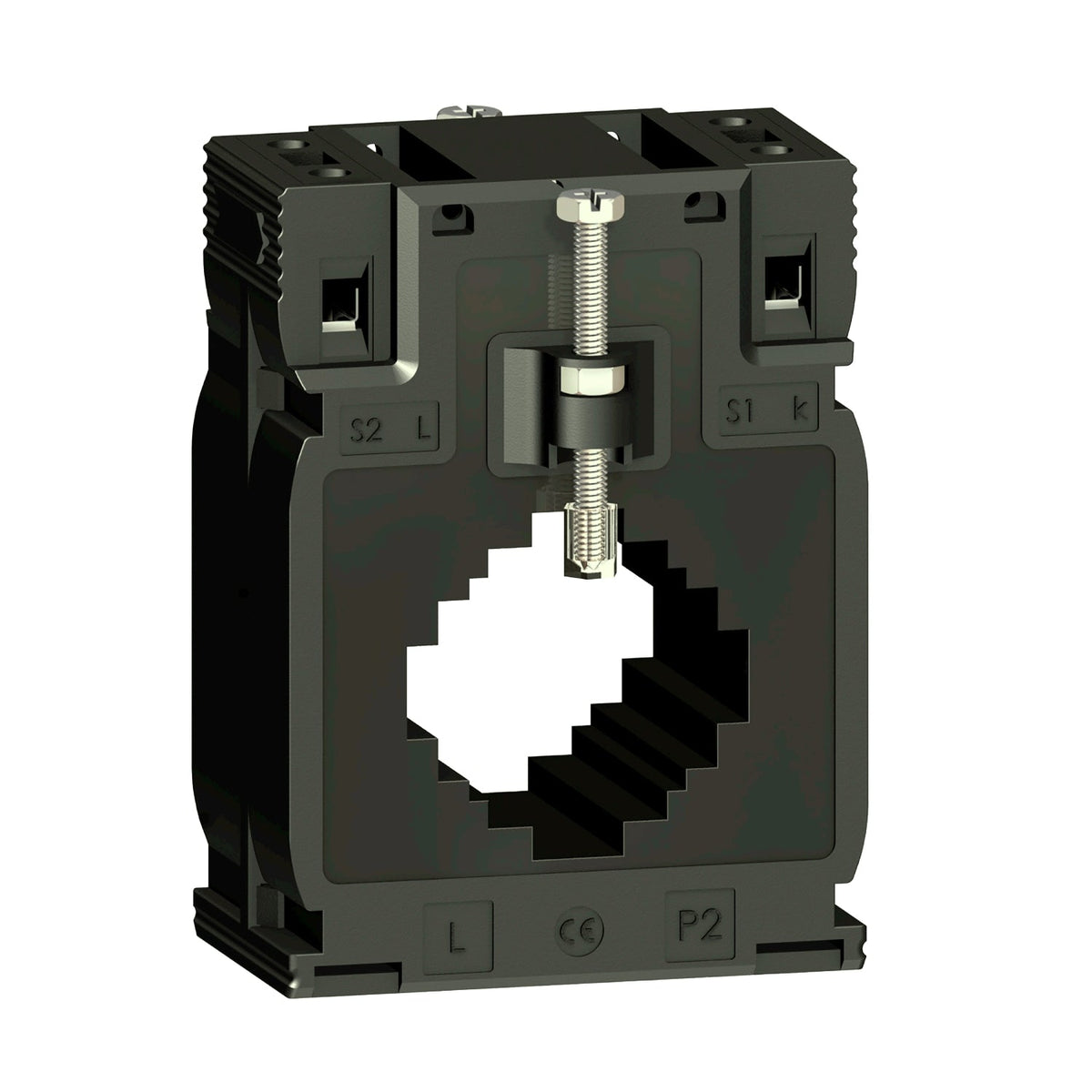

Schneider Electric METSECT5MC030 PowerLogic CT MC type 300/5 A current transformer
Schneider Electric METSECT5MC030 PowerLogic CT MC type 300/5 A current transformer

Schneider Electric METSECT5MC030 PowerLogic CT MC Type 300/5 A Class 1 32 mm Current Transformer

Brand: Schneider Electric
Reference No: METSECT5MC030
Catalog No: METSECT5MC030
Tariff Code (HS): 850431
Rated Current: 300 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$24.78

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECT5MC030 is a PowerLogic MC-type current transformer for panel metering, rated 300/5 A for busbar and cable installation. It accepts cables up to 32 mm in diameter or a 40.5 x 10.5 / 32.5 x 20.5 / 25.5 x 25.5 mm bus bar, delivering Class 0.5 accuracy at 5 VA burden or Class 1 at 8 VA.

Technical Specifications

Reference METSECT5MC030
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, tropicalised for busbar and cable
Current transformer ratio 300/5 A
Accuracy class Class 0.5 at 5 VA / Class 1 at 8 VA
Rated thermal current (Ith) 18 kA
Dynamic withstand current 2.5 x Ith
Maximum safety factor 5
Rated operational voltage (Ue) < 720 V AC 50/60 Hz
Rated insulation voltage (Ui) 3 kV 50 Hz for 1 minute
Rated impulse withstand voltage (Uimp) 3 kV
Electrical insulation class Class B
Cable outer diameter 32 mm
Bus bar opening 40.5 x 10.5 / 32.5 x 20.5 / 25.5 x 25.5 mm
Mounting mode Insulated locking screw, clip-on, or by screws
Mounting support Mounting plate, DIN rail, or busbar
Window dimensions 70 x 95 mm outside, 41 x 41 mm inner
IP degree of protection IP20
Ambient operating temperature -25...60 C
Net weight 0.389 kg

Certifications & Standards

  • CE
  • IEC 61869-2
  • VDE 0414

Selection Notes

The METSECT5MC030 covers feeders up to 300 A in the same MC body and 32 mm window as its siblings, so the choice between the 250 A and 300 A variants comes down to the feeder's actual load current rather than a physical fit difference. Its 18 kA thermal rating and 2.5x Ith dynamic withstand sit one step above the 250 A unit, giving headroom on circuits closer to the next breaker size up.

Technical Details

Short Description
PowerLogic MC-type tropicalised CT, 300/5 A ratio, Class 0.5/1 accuracy, 32 mm cable or triple busbar opening.
Rated Current (Ampere)
300 A
Mounting Type
Busbar, cable, or DIN rail
Protection Type
IP20
Catalog No
METSECT5MC030
Delivery Date (Days)
30 days
Model Number
CT
Tariff Code
850431
