Schneider Electric METSECT5MC025 PowerLogic CT MC Type 250/5 A Class 1 32 mm Current Transformer

% $-24.29

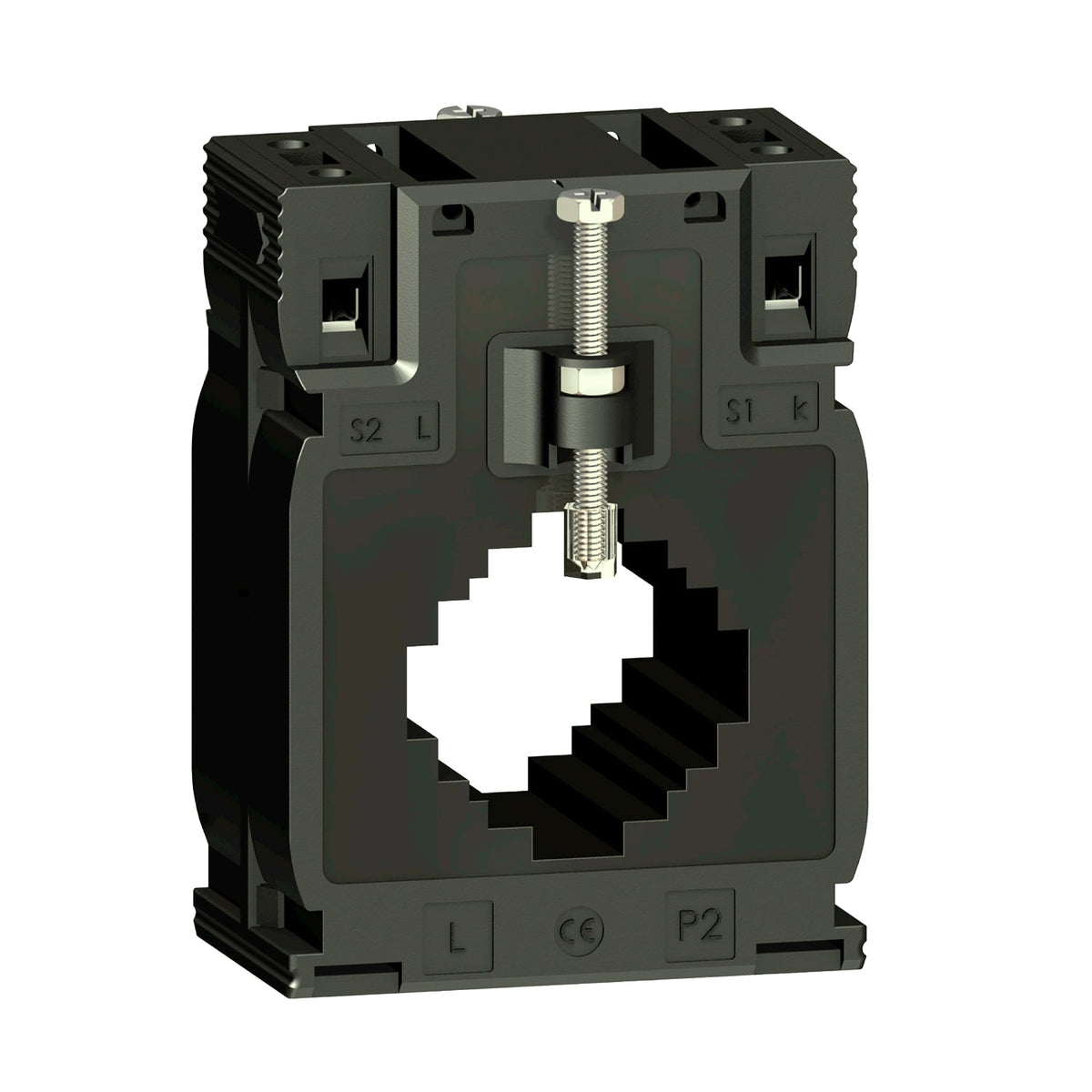

Schneider Electric METSECT5MC025 PowerLogic CT MC type 250/5 A current transformer
Schneider Electric METSECT5MC025 PowerLogic CT MC type 250/5 A current transformer

Schneider Electric METSECT5MC025 PowerLogic CT MC Type 250/5 A Class 1 32 mm Current Transformer

Brand: Schneider Electric
Reference No: METSECT5MC025
Catalog No: METSECT5MC025
Tariff Code (HS): 850431
Rated Current: 250 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$24.29

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECT5MC025 is a PowerLogic MC-type current transformer for panel metering, rated 250/5 A for busbar and cable installation. It accepts cables up to 32 mm in diameter or a 40.5 x 10.5 / 32.5 x 20.5 / 25.5 x 25.5 mm bus bar, delivering Class 0.5 accuracy at 3 VA burden or Class 1 at 5 VA.

Technical Specifications

Reference METSECT5MC025
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, tropicalised for busbar and cable
Current transformer ratio 250/5 A
Accuracy class Class 0.5 at 3 VA / Class 1 at 5 VA
Rated thermal current (Ith) 15 kA
Dynamic withstand current 2.5 x Ith
Maximum safety factor 5
Rated operational voltage (Ue) < 720 V AC 50/60 Hz
Rated insulation voltage (Ui) 3 kV 50 Hz for 1 minute
Rated impulse withstand voltage (Uimp) 3 kV
Electrical insulation class Class B
Cable outer diameter 32 mm
Bus bar opening 40.5 x 10.5 / 32.5 x 20.5 / 25.5 x 25.5 mm
Mounting mode Clip-on, insulated locking screw, or by screws
Mounting support DIN rail, mounting plate, or busbar
Window dimensions 70 x 95 mm outside, 41 x 41 mm inner
IP degree of protection IP20
Ambient operating temperature -25...60 C
Net weight 0.375 kg

Certifications & Standards

  • EAC
  • CE
  • VDE 0414
  • IEC 61869-2

Selection Notes

The METSECT5MC025 fits feeders up to 250 A where the panel builder needs one CT body that serves three bar geometries, since the triple bus bar opening covers 40.5 x 10.5, 32.5 x 20.5, and 25.5 x 25.5 mm sections. Its 15 kA thermal rating is sized for the lower end of the MC family, so it is the choice when upstream protection is already limiting fault current and the higher-current MC variants would be oversized for the burden.

Technical Details

Short Description
PowerLogic MC-type tropicalised CT, 250/5 A ratio, Class 0.5/1 accuracy, 32 mm cable or triple busbar opening.
Rated Current (Ampere)
250 A
Mounting Type
Busbar, cable, or DIN rail
Protection Type
IP20
Catalog No
METSECT5MC025
Delivery Date (Days)
30 days
Model Number
CT
Tariff Code
850431
