Schneider Electric METSECT5MB040 PowerLogic CT MB Type 400/5 A Class 1 26 mm Current Transformer

% $-24.29

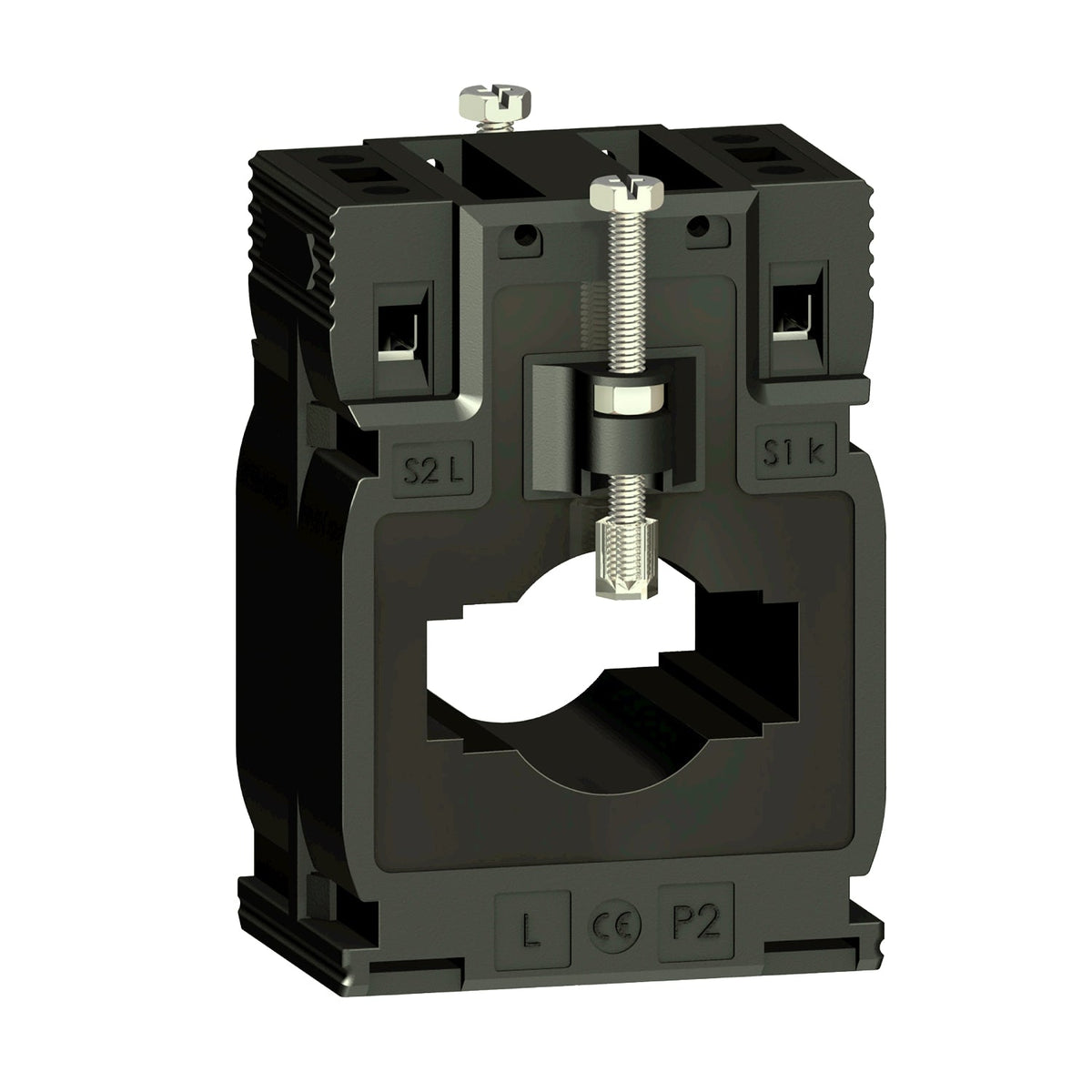

Schneider Electric METSECT5MB040 PowerLogic CT MB type 400/5 A current transformer
Schneider Electric METSECT5MB040 PowerLogic CT MB type 400/5 A current transformer

Schneider Electric METSECT5MB040 PowerLogic CT MB Type 400/5 A Class 1 26 mm Current Transformer

Brand: Schneider Electric
Reference No: METSECT5MB040
Catalog No: METSECT5MB040
Tariff Code (HS): 850431
Rated Current: 400 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$24.29

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECT5MB040 is a PowerLogic MB-type current transformer for panel metering, rated 400/5 A for busbar and cable installation. It accepts cables up to 26 mm in diameter or a 40.5 x 12.5 mm / 32.5 x 15.5 mm bus bar, and delivers Class 0.5 accuracy at 6 VA burden or Class 1 at 8 VA.

Technical Specifications

Reference METSECT5MB040
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, tropicalised for busbar and cable
Current transformer ratio 400/5 A
Accuracy class Class 0.5 at 6 VA / Class 1 at 8 VA
Rated thermal current (Ith) 24 kA
Dynamic withstand current 2.5 x Ith
Maximum safety factor 5
Rated operational voltage (Ue) < 720 V AC 50/60 Hz
Rated insulation voltage (Ui) 3 kV 50 Hz for 1 minute
Rated impulse withstand voltage (Uimp) 3 kV
Electrical insulation class Class B
Cable outer diameter 26 mm
Bus bar opening 40.5 x 12.5 mm or 32.5 x 15.5 mm
Mounting mode Insulated locking screw, by screws, or clip-on
Mounting support Mounting plate, busbar, or DIN rail
Dimensions (W x H x D) 60 x 85 x 63 mm
IP degree of protection IP20
Ambient operating temperature -25...60 C
Net weight 0.348 kg

Certifications & Standards

  • CE
  • IEC 61869-2
  • VDE 0414

Selection Notes

Choose the METSECT5MB040 when the feeder carries up to 400 A and the installation needs one CT that fits either a cable up to 26 mm or a bus bar, since its dual bar openings and cable window cover both without changing hardware. The 24 kA thermal rating and 2.5x Ith dynamic withstand keep the core from saturating during a downstream fault. Against the narrower-window MC-type units in the same tropicalised range, the MB040 is the pick when the conductor diameter exceeds 32 mm.

Technical Details

Short Description
PowerLogic MB-type tropicalised CT, 400/5 A ratio, Class 0.5/1 accuracy, 26 mm cable or dual busbar opening.
Rated Current (Ampere)
400 A
Mounting Type
Busbar, cable, or DIN rail
Protection Type
IP20
Catalog No
METSECT5MB040
Delivery Date (Days)
30 days
Model Number
CT
Tariff Code
850431
