Part number
METSECT5MB025
$23.40 On request Dispatch — · From TürkiyeGet a Quote

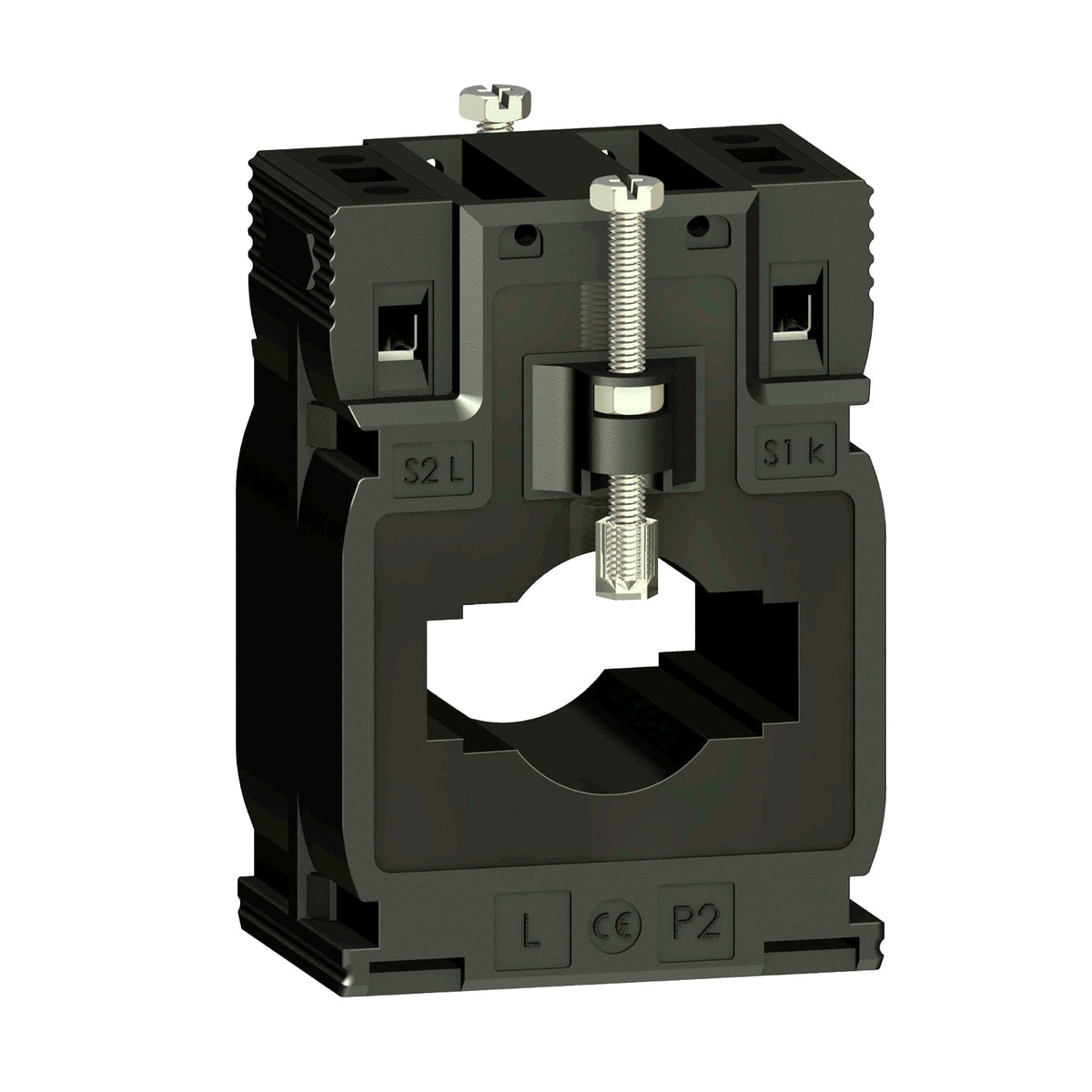

Schneider Electric METSECT5MB025 PowerLogic MB Type 250/5 A Class 0.5 26mm Current Transformer

Schneider Electric METSECT5MB025 PowerLogic MB current transformer, 250/5 A, Class 0.5.

Rated current
250 A
Description

About the METSECT5MB025

The Schneider Electric METSECT5MB025 is a PowerLogic Type MB tropicalised current transformer for DIN-rail, mounting-plate, or busbar installation, ratio 250/5 A, dual Class Class 0.5 at 3 VA | Class 1 at 4 VA accuracy. It accepts a cable up to 26 mm or a bar through its 40.5 x 12.5 mm or 32.5 x 15.5 mm (double output) opening, supplying a 5 A secondary for metering or protection on a 250 A circuit.

Certifications & Standards

  • CE
  • IEC 61869-2
  • VDE 0414

Selection Notes

The METSECT5MB025 covers a 250 A primary through either its 26 mm cable opening or its 40.5 x 12.5 mm or 32.5 x 15.5 mm (double output), so the same part serves both busbar and cable feeders in a panel — pick the next size up in the MA/MB family only if the actual conductor exceeds this rating. Class 0.5 accuracy makes it suitable for revenue-grade or sub-billing energy metering, not just coarse load indication. The insulated locking screw mount works on a DIN rail, a mounting plate, or directly on the busbar.

Applications

Because the METSECT5MB025 mounts on a DIN rail, a mounting plate, or the busbar itself, it fits panel builders retrofitting metering onto an existing 250 A circuit as readily as it does a new switchboard design, feeding the same 5 A secondary to a meter or relay either way.

Specification

Full specification

53 values · Last verified 30 Oct 2026

Main 6

Range PowerLogic
Product or component type Current transformer
Product name CT
Secondary current 5 A
Accuracy class Class 0.5 at 3 VA, Class 1 at 4 VA
[In] rated current 250 A

Complementary 19

Current transformer type Tropicalised for busbar and cable, Solid core
Current transformer ratio 250/5
[Ith] conventional free air thermal current 15 kA
Dynamic withstand current 2.5 Ith
Maximum safety factor 5
[Ue] rated operational voltage < 720 V AC 50/60 Hz
[Ui] rated insulation voltage 3 kV 50 Hz for 1 minute
Mounting mode Insulated locking screw, By screws, Clip-on
Mounting support Mounting plate, DIN rail, Busbar
Width Outside: 60 mm
Height Outside: 85 mm
Depth Frame : 43 mm, Total : 63 mm
Diameter 26 mm
Net weight 0.305 kg
[Uimp] rated impulse withstand voltage 3 kV
Electrical insulation class Class B
Cable outer diameter 26 mm
Opening of bars 32.5 x 15.5, 40.5 x 12.5
Sealing Without

Environment 5

Standards IEC 61869-2, VDE 0414
Product certifications CE
IP degree of protection IP20
Relative humidity 0…95 %
Ambient air temperature for operation -25…60 °C
Show all 53 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number METSECT5MB025
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 7.000 cm
Package 1 Length 9.000 cm
Package 1 Weight 309.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 40
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 12.760 kg
Shipping weight 0.305 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for METSECT5MB025

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • IEC 61869-2
  • VDE 0414
Quick answers

Questions about the METSECT5MB025

What is the rated current of METSECT5MB025?

The rated current of METSECT5MB025 is 250 A.

What is the HS code of METSECT5MB025 for customs?

The tariff (HS) code on file for METSECT5MB025 is 850431.

Where does METSECT5MB025 ship from, and how fast?

METSECT5MB025 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
