About the METSECT5MA020
About the METSECT5MA020

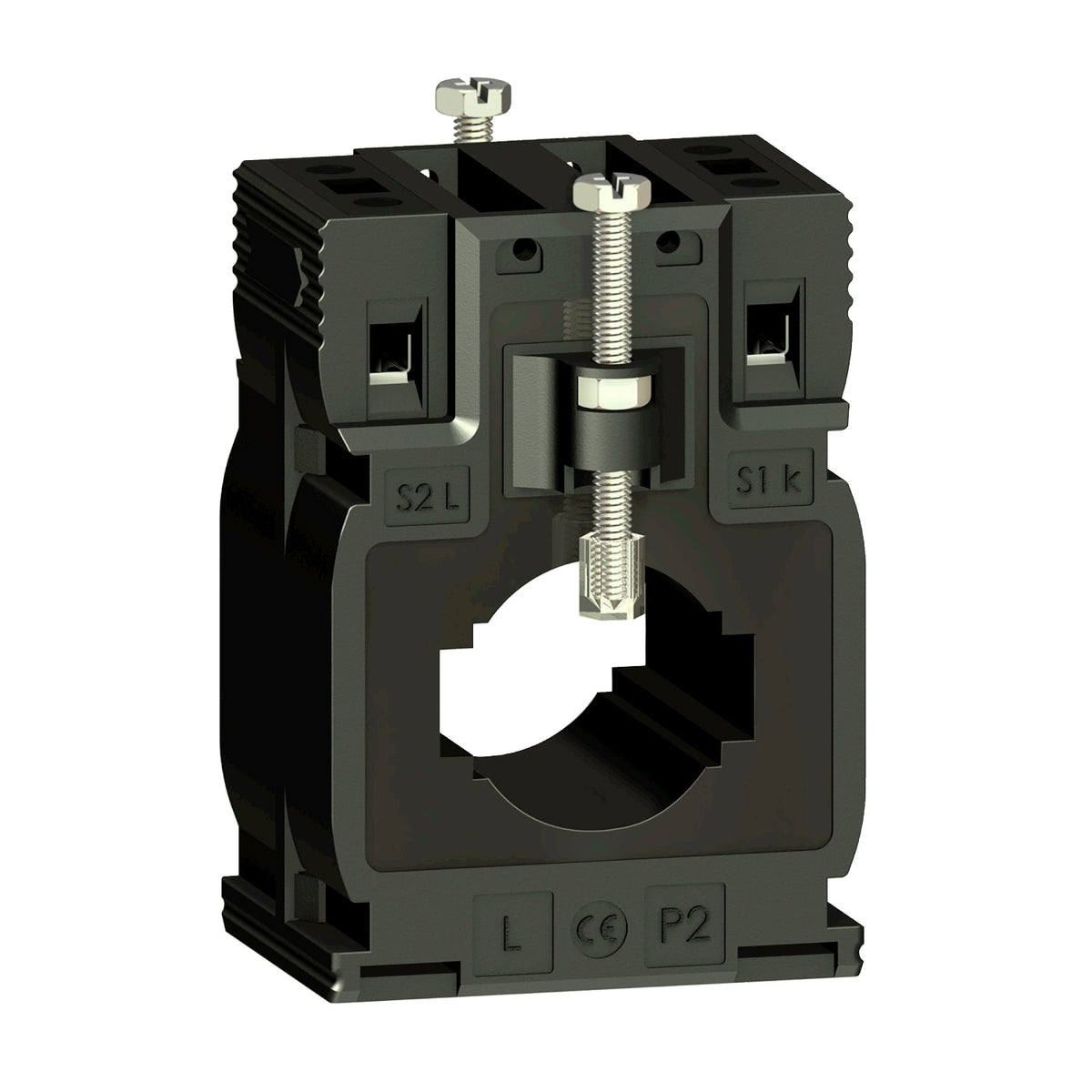

The Schneider Electric METSECT5MA020 is a PowerLogic Type MA tropicalised current transformer for DIN-rail, mounting-plate, or busbar installation, ratio 200/5 A, dual Class Class 0.5 at 4 VA | Class 1 at 7 VA accuracy. It accepts a cable up to 27 mm or a bar through its 32.5 x 10.5 mm or 25.5 x 15.5 mm (double output) opening, supplying a 5 A secondary for metering or protection on a 200 A circuit.
Certifications & Standards
- EAC
- CE
- IEC 61869-2
- VDE 0414
Selection Notes
The METSECT5MA020 covers a 200 A primary through either its 27 mm cable opening or its 32.5 x 10.5 mm or 25.5 x 15.5 mm (double output), so the same part serves both busbar and cable feeders in a panel — pick the next size up in the MA/MB family only if the actual conductor exceeds this rating. Class 0.5 accuracy makes it suitable for revenue-grade or sub-billing energy metering, not just coarse load indication. The insulated locking screw mount works on a DIN rail, a mounting plate, or directly on the busbar.
Applications
Because the METSECT5MA020 mounts on a DIN rail, a mounting plate, or the busbar itself, it fits panel builders retrofitting metering onto an existing 200 A circuit as readily as it does a new switchboard design, feeding the same 5 A secondary to a meter or relay either way.
Specification
Full specification
Main 6
| Range | PowerLogic |
|---|---|
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 4 VA, Class 1 at 7 VA |
| [In] rated current | 200 A |
Complementary 19
| Current transformer type | Tropicalised for busbar and cable, Solid core |
|---|---|
| Current transformer ratio | 200/5 |
| [Ith] conventional free air thermal current | 12 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV 50 Hz for 1 minute |
| Mounting mode | Clip-on, By screws, Insulated locking screw |
| Mounting support | DIN rail, Busbar, Mounting plate |
| Width | Outside: 56 mm |
| Height | Outside: 80 mm |
| Depth | Frame : 43 mm, Total : 63 mm |
| Diameter | 27 mm |
| Net weight | 0.318 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Cable outer diameter | 27 mm |
| Opening of bars | 32.5 x 10.5, 25.5 x 15.5 |
| Sealing | Without |
Environment 5
| Standards | IEC 61869-2, VDE 0414 |
|---|---|
| Product certifications | EAC, CE |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…60 °C |
Show all 53 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | METSECT5MA020 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 322.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 35 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 11.666 kg |
| Shipping weight | 0.318 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
