- Part number
- METSECT5HG060
Description
About the METSECT5HG060
About the METSECT5HG060

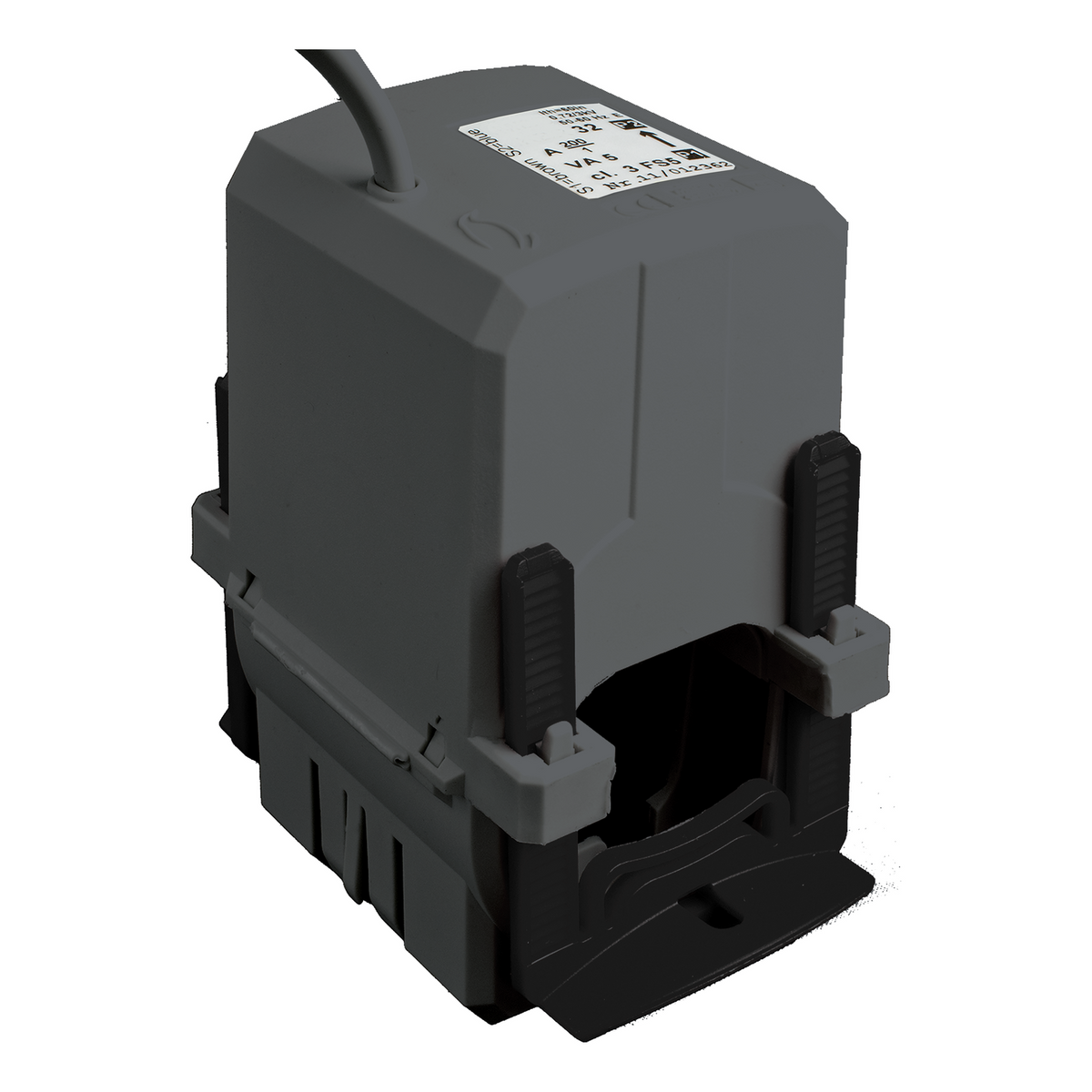

The Schneider Electric METSECT5HG060 is a PowerLogic Type HG split-core current transformer for cable mounting, ratio 600/5 A, Class 1 accuracy at 5 VA. It clips around a cable up to 32.5 mm diameter without opening the circuit, supplying a standard 5 A secondary to a power meter or protection relay on a 600 A feeder.
Certifications & Standards
- DIN EN 60044-1
- DIN EN 61869-1
- DIN EN 61869-2
- VDE 0414
Selection Notes
The METSECT5HG060 clamps onto a cable up to 32.5 mm diameter for a 600 A feeder without breaking the conductor, which is the main reason to pick a HG split-core type over a solid-core busbar transformer. Class 1 accuracy covers general-purpose metering and protection-relay current input, where billing-grade precision is not required. Choose the next current rating in the HG series if the measured feeder load exceeds 600 A, since the window size stays the same across the family.
Applications
The clip-on HG body lets a panel builder add the METSECT5HG060 to an existing 600 A cable run during a metering or protection upgrade, without disconnecting the conductor or shutting down the circuit to fit the transformer.
Specification
Full specification
Main 6
| Range | PowerLogic |
|---|---|
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 1 at 5 VA |
| [In] rated current | 600 A |
Complementary 15
| Current transformer type | Standard for cable, Split core |
|---|---|
| Current transformer ratio | 600/5 |
| [Ith] conventional free air thermal current | 720 A |
| Maximum safety factor | 5 |
| Permissible current | 36000 A during 1 s |
| [Ue] rated operational voltage | < 720 V 50 Hz |
| [Ui] rated insulation voltage | 3 kV 50 Hz for 1 minute |
| Mounting mode | Clip-on |
| Width | Outside: 59.2 mm |
| Height | Outside: 96.4 mm |
| Depth | 89.2 mm |
| Diameter | 32.5 mm inner: |
| Electrical insulation class | Class E |
| Cable outer diameter | 32.5 mm |
| Connections - terminals | Cable 2 cable(s) 0.5…1.5 mm² 0.5 m |
Environment 3
| Standards | DIN EN 60044-1, DIN EN 61869-1, DIN EN 61869-2, VDE 0414 |
|---|---|
| Ambient air temperature for operation | -5…50 °C |
| Ambient air temperature for storage | -25…70 °C |
Show all 47 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | METSECT5HG060 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.0 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Length | 13.0 cm |
| Package 1 Weight | 410.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 8.761 kg |
| Shipping weight | 0.41 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for METSECT5HG060
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- DIN EN 60044-1
- DIN EN 61869-1
- DIN EN 61869-2
- VDE 0414
Quick answers
Questions about the METSECT5HG060
What is the rated current of METSECT5HG060?
The rated current of METSECT5HG060 is 600 A.
What is the HS code of METSECT5HG060 for customs?
The tariff (HS) code on file for METSECT5HG060 is 850431.
Where does METSECT5HG060 ship from, and how fast?
METSECT5HG060 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
