Part number
METSECT5HA025
$100.57 On request Dispatch — · From TürkiyeGet a Quote

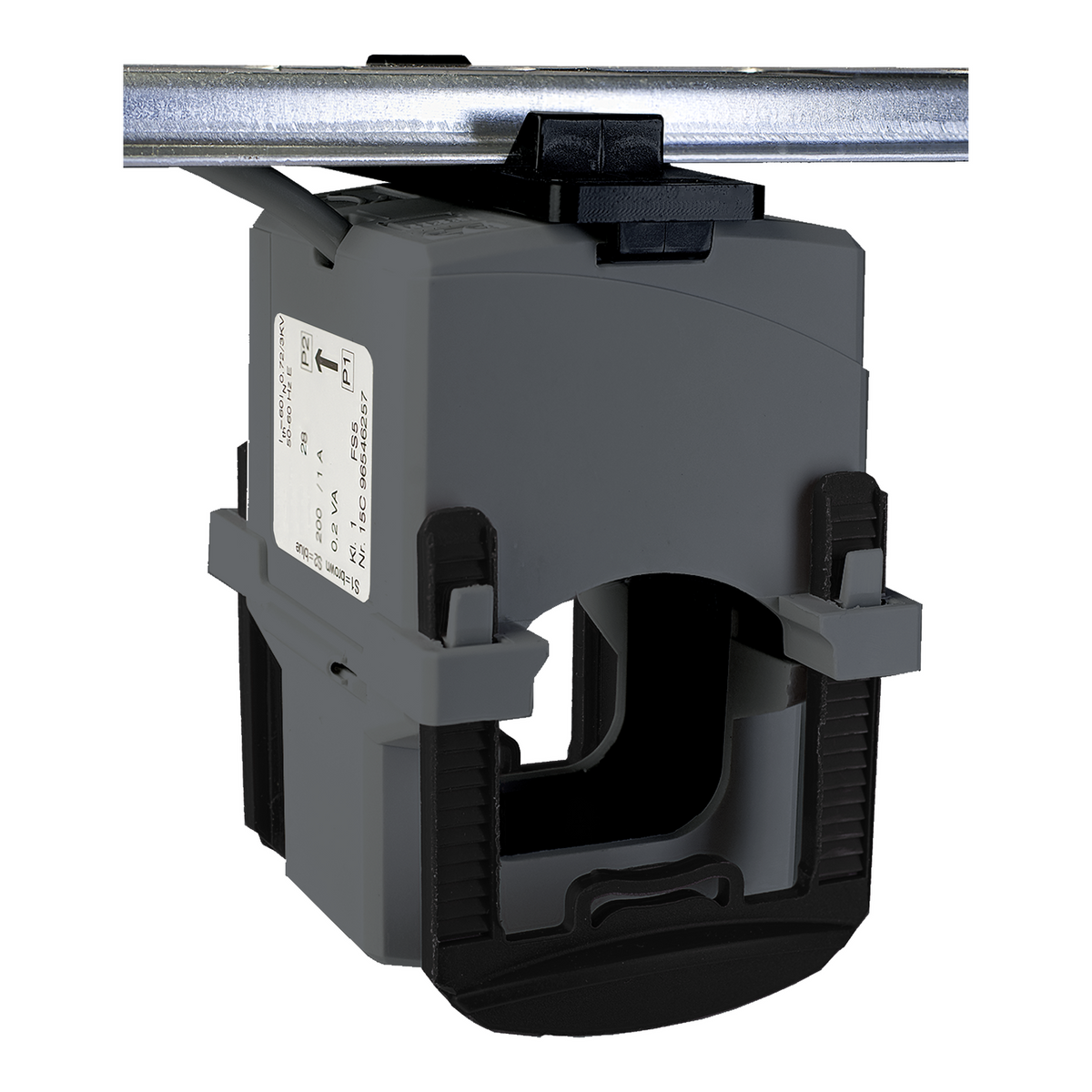

Schneider Electric METSECT5HA025 PowerLogic HA Type 250/5 A Class 0.5 18.4mm Current Transformer

Schneider Electric METSECT5HA025 PowerLogic HA current transformer, 250/5 A, Class 0.5.

Rated current
250 A
Description

About the METSECT5HA025

The Schneider Electric METSECT5HA025 is a PowerLogic Type HA split-core current transformer for cable mounting, ratio 250/5 A, Class 0.5 accuracy at 1 VA. It clips around a cable up to 18.4 mm diameter without opening the circuit, supplying a standard 5 A secondary to a power meter or protection relay on a 250 A feeder.

Certifications & Standards

  • DIN EN 60044-1
  • DIN EN 61869-1
  • DIN EN 61869-2
  • VDE 0414

Selection Notes

The METSECT5HA025 clamps onto a cable up to 18.4 mm diameter for a 250 A feeder without breaking the conductor, which is the main reason to pick a HA split-core type over a solid-core busbar transformer. Class 0.5 accuracy makes it suitable for revenue-grade or sub-billing energy metering, not just coarse load indication. Choose the next current rating in the HA series if the measured feeder load exceeds 250 A, since the window size stays the same across the family.

Applications

The clip-on HA body lets a panel builder add the METSECT5HA025 to an existing 250 A cable run during a metering or protection upgrade, without disconnecting the conductor or shutting down the circuit to fit the transformer.

Specification

Full specification

47 values · Last verified 30 Oct 2026

Main 6

Range PowerLogic
Product or component type Current transformer
Product name CT
Secondary current 5 A
Accuracy class Class 0.5 at 1 VA
[In] rated current 250 A

Complementary 15

Current transformer type Standard for cable, Split core
Current transformer ratio 250/5
[Ith] conventional free air thermal current 300 A
Maximum safety factor 5
Permissible current 15000 A during 1 s
[Ue] rated operational voltage < 720 V 50 Hz
[Ui] rated insulation voltage 3 kV 50 Hz for 1 minute
Mounting mode Clip-on
Width Outside: 49 mm
Height Outside: 80.1 mm
Depth 59 mm
Diameter 18.4 mm inner:
Electrical insulation class Class E
Cable outer diameter 18.4 mm
Connections - terminals Cable 2 cable(s) 0.5…1.5 mm² 0.5 m

Environment 3

Standards DIN EN 60044-1, DIN EN 61869-1, DIN EN 61869-2, VDE 0414
Ambient air temperature for operation -5…50 °C
Ambient air temperature for storage -25…70 °C
Show all 47 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number METSECT5HA025
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.5 cm
Package 1 Width 6.5 cm
Package 1 Length 7.0 cm
Package 1 Weight 332.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 16
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.53 kg
Shipping weight 0.332 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for METSECT5HA025

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • DIN EN 60044-1
  • DIN EN 61869-1
  • DIN EN 61869-2
  • VDE 0414
Quick answers

Questions about the METSECT5HA025

What is the rated current of METSECT5HA025?

The rated current of METSECT5HA025 is 250 A.

What is the HS code of METSECT5HA025 for customs?

The tariff (HS) code on file for METSECT5HA025 is 850431.

Where does METSECT5HA025 ship from, and how fast?

METSECT5HA025 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
