Part number
METSECT5GJ400
$271.34 On request Dispatch — · From TürkiyeGet a Quote

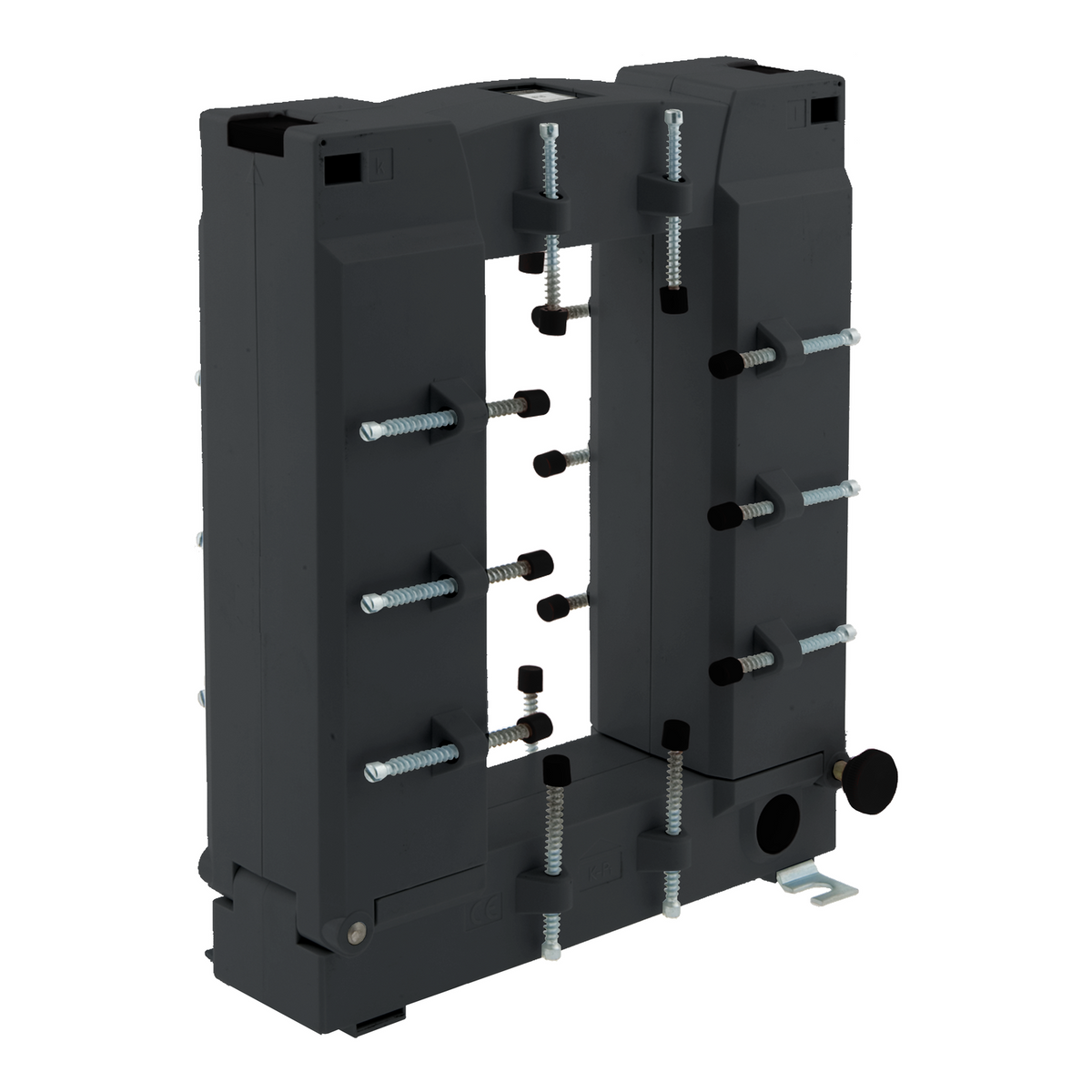

Schneider Electric METSECT5GJ400 PowerLogic GJ Type 4000/5 A Class 0.5 85x165mm Current Transformer

Schneider Electric METSECT5GJ400 PowerLogic GJ current transformer, 4000/5 A, Class 0.5.

Rated current
4000 A
Description

About the METSECT5GJ400

The Schneider Electric METSECT5GJ400 is a PowerLogic Type GJ split-core current transformer for busbar mounting, ratio 4000/5 A, Class 0.5 accuracy at 15 VA. Its 85 x 165 mm window clips around a single bar up to 80 x 160 mm (single output) without disconnecting the busbar, feeding a 5 A secondary to a power meter or protection relay on a 4000 A main or feeder circuit.

Certifications & Standards

  • VDE 0414
  • DIN 42600-2
  • DIN EN 61869-1
  • DIN EN 61869-2

Selection Notes

The METSECT5GJ400 covers a 4000 A busbar run through its 85 x 165 mm window; lower-current variants in the same GJ frame use the identical window for smaller bars, so the 4000 A rating is the deciding factor when selecting between them. Class 0.5 accuracy makes it suitable for revenue-grade or sub-billing energy metering, not just coarse load indication. Mounting by screws onto the busbar or a DIN rail suits a fixed panel installation rather than a retrofit clamp.

Applications

On a 4000 A busbar, the METSECT5GJ400 is typically paired with a panel meter or protection relay that reads its 5 A secondary, giving load, demand, or earth-fault current visibility on an incoming feeder or a main bus section without a dedicated switchgear-mounted sensor.

Specification

Full specification

46 values · Last verified 30 Oct 2026

Main 6

Range PowerLogic
Product or component type Current transformer
Product name CT
Secondary current 5 A
Accuracy class Class 0.5 at 15 VA
[In] rated current 4000 A

Complementary 14

Current transformer type Standard for busbar, Split core
Current transformer ratio 4000/5
[Ith] conventional free air thermal current 4000 A
Maximum safety factor 10
Permissible current 60000 A during 1 s
[Ue] rated operational voltage < 720 V 50 Hz
[Ui] rated insulation voltage 3 kV 50 Hz for 1 minute
Mounting mode By screws
Mounting support DIN rail, Fastened onto a surface with screws
Width Outside: 195 mm, Inner: 85 mm
Height Outside: 243 mm, Inner: 165 mm
Depth 79 mm
Electrical insulation class Class E
Opening of bars 85 x 165

Environment 3

Standards VDE 0414, DIN 42600-2, DIN EN 61869-1, DIN EN 61869-2
Ambient air temperature for operation -5…40 °C
Ambient air temperature for storage -25…70 °C
Show all 46 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number METSECT5GJ400
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 20.0 cm
Package 1 Length 25.0 cm
Package 1 Weight 4.25 kg
Unit Type of Package 2 S03
Number of Units in Package 2 3
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 13.27 kg
Shipping weight 4.25 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for METSECT5GJ400

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • VDE 0414
  • DIN 42600-2
  • DIN EN 61869-1
  • DIN EN 61869-2
Quick answers

Questions about the METSECT5GJ400

What is the rated current of METSECT5GJ400?

The rated current of METSECT5GJ400 is 4000 A.

What is the HS code of METSECT5GJ400 for customs?

The tariff (HS) code on file for METSECT5GJ400 is 850431.

Where does METSECT5GJ400 ship from, and how fast?

METSECT5GJ400 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
