- Part number
- METSECT5GJ300
Description
About the METSECT5GJ300
About the METSECT5GJ300

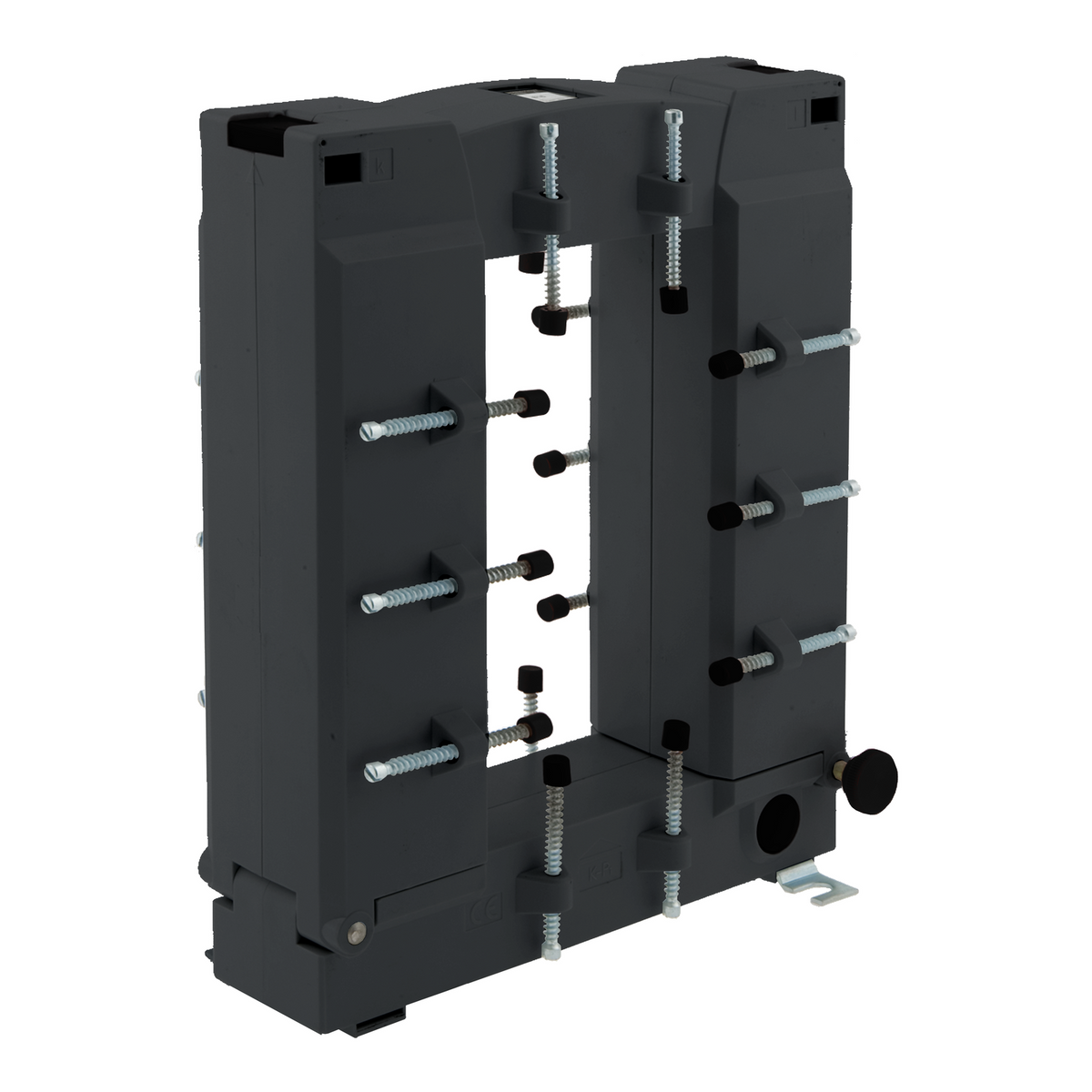

The Schneider Electric METSECT5GJ300 is a PowerLogic Type GJ split-core current transformer for busbar mounting, ratio 3000/5 A, Class 0.5 accuracy at 15 VA. Its 85 x 165 mm window clips around a single bar up to 80 x 160 mm (single output) without disconnecting the busbar, feeding a 5 A secondary to a power meter or protection relay on a 3000 A main or feeder circuit.
Certifications & Standards
- VDE 0414
- DIN 42600-2
- DIN EN 61869-1
- DIN EN 61869-2
Selection Notes
The METSECT5GJ300 covers a 3000 A busbar run through its 85 x 165 mm window; lower-current variants in the same GJ frame use the identical window for smaller bars, so the 3000 A rating is the deciding factor when selecting between them. Class 0.5 accuracy makes it suitable for revenue-grade or sub-billing energy metering, not just coarse load indication. Mounting by screws onto the busbar or a DIN rail suits a fixed panel installation rather than a retrofit clamp.
Applications
On a 3000 A busbar, the METSECT5GJ300 is typically paired with a panel meter or protection relay that reads its 5 A secondary, giving load, demand, or earth-fault current visibility on an incoming feeder or a main bus section without a dedicated switchgear-mounted sensor.
Specification
Full specification
Main 6
| Range | PowerLogic |
|---|---|
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 15 VA |
| [In] rated current | 3000 A |
Complementary 14
| Current transformer type | Standard for busbar, Split core |
|---|---|
| Current transformer ratio | 3000/5 |
| [Ith] conventional free air thermal current | 3000 A |
| Maximum safety factor | 10 |
| Permissible current | 60000 A during 1 s |
| [Ue] rated operational voltage | < 720 V 50 Hz |
| [Ui] rated insulation voltage | 3 kV 50 Hz for 1 minute |
| Mounting mode | By screws |
| Mounting support | DIN rail, Fastened onto a surface with screws |
| Width | Outside: 195 mm, Inner: 85 mm |
| Height | Outside: 243 mm, Inner: 165 mm |
| Depth | 79 mm |
| Electrical insulation class | Class E |
| Opening of bars | 85 x 165 |
Environment 3
| Standards | VDE 0414, DIN 42600-2, DIN EN 61869-1, DIN EN 61869-2 |
|---|---|
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -25…70 °C |
Show all 46 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | METSECT5GJ300 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 20.0 cm |
| Package 1 Length | 25.0 cm |
| Package 1 Weight | 3.85 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 12.0 kg |
| Shipping weight | 3.85 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for METSECT5GJ300
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- VDE 0414
- DIN 42600-2
- DIN EN 61869-1
- DIN EN 61869-2
Quick answers
Questions about the METSECT5GJ300
What is the rated current of METSECT5GJ300?
The rated current of METSECT5GJ300 is 3000 A.
What is the HS code of METSECT5GJ300 for customs?
The tariff (HS) code on file for METSECT5GJ300 is 850431.
Where does METSECT5GJ300 ship from, and how fast?
METSECT5GJ300 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
