- Part number
- METSECT5GJ150
Description
About the METSECT5GJ150
About the METSECT5GJ150

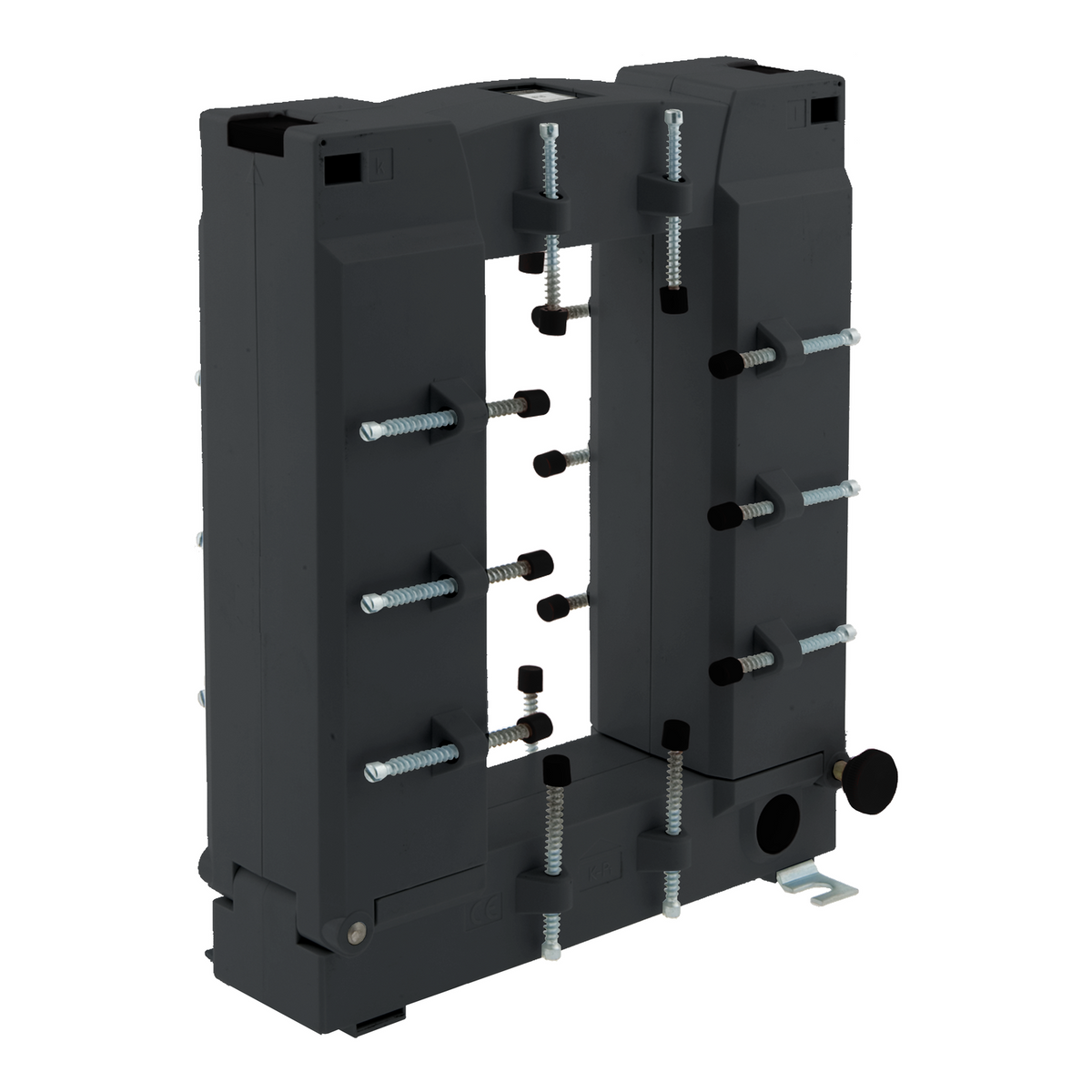

The Schneider Electric METSECT5GJ150 is a PowerLogic split-core current transformer for standard busbar, with a 1500/5 A ratio and a 85 x 165 mm opening. It scales the 1500 A primary current down to a 5 A secondary signal at Class 0.5 accuracy, and the split core opens to mount around an existing busbar without disconnecting the primary conductor.
Certifications & Standards
- VDE 0414
- DIN 42600-2
- DIN EN 61869-1
- DIN EN 61869-2
Selection Notes
The METSECT5GJ150 is sized for the 85 x 165 mm window used across the GJ type body; within that frame, choose the ratio that matches the installed primary current rather than the busbar size, since several ratios share the same window. Its split core lets it be fitted around a live busbar without breaking the circuit, and the 60000 A 1-second withstand rating with a 5x safety factor indicates how much fault current it tolerates before the secondary saturates.
Specification
Full specification
Main 6
| Range | PowerLogic |
|---|---|
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 10 VA |
| [In] rated current | 1500 A |
Complementary 14
| Current transformer type | Standard for busbar, Split core |
|---|---|
| Current transformer ratio | 1500/5 |
| [Ith] conventional free air thermal current | 1500 A |
| Maximum safety factor | 5 |
| Permissible current | 60000 A during 1 s |
| [Ue] rated operational voltage | < 720 V 50 Hz |
| [Ui] rated insulation voltage | 3 kV 50 Hz for 1 minute |
| Mounting mode | By screws |
| Mounting support | DIN rail, Fastened onto a surface with screws |
| Width | Outside: 195 mm, Inner: 85 mm |
| Height | Outside: 243 mm, Inner: 165 mm |
| Depth | 79 mm |
| Electrical insulation class | Class E |
| Opening of bars | 85 x 165 |
Environment 3
| Standards | VDE 0414, DIN 42600-2, DIN EN 61869-1, DIN EN 61869-2 |
|---|---|
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -25…70 °C |
Show all 46 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | METSECT5GJ150 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 19.5 cm |
| Package 1 Length | 25.0 cm |
| Package 1 Weight | 3.458 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 15.466 kg |
| Shipping weight | 3.458 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for METSECT5GJ150
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- VDE 0414
- DIN 42600-2
- DIN EN 61869-1
- DIN EN 61869-2
Quick answers
Questions about the METSECT5GJ150
What is the rated current of METSECT5GJ150?
The rated current of METSECT5GJ150 is 1500 A.
What is the HS code of METSECT5GJ150 for customs?
The tariff (HS) code on file for METSECT5GJ150 is 850431.
Where does METSECT5GJ150 ship from, and how fast?
METSECT5GJ150 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
