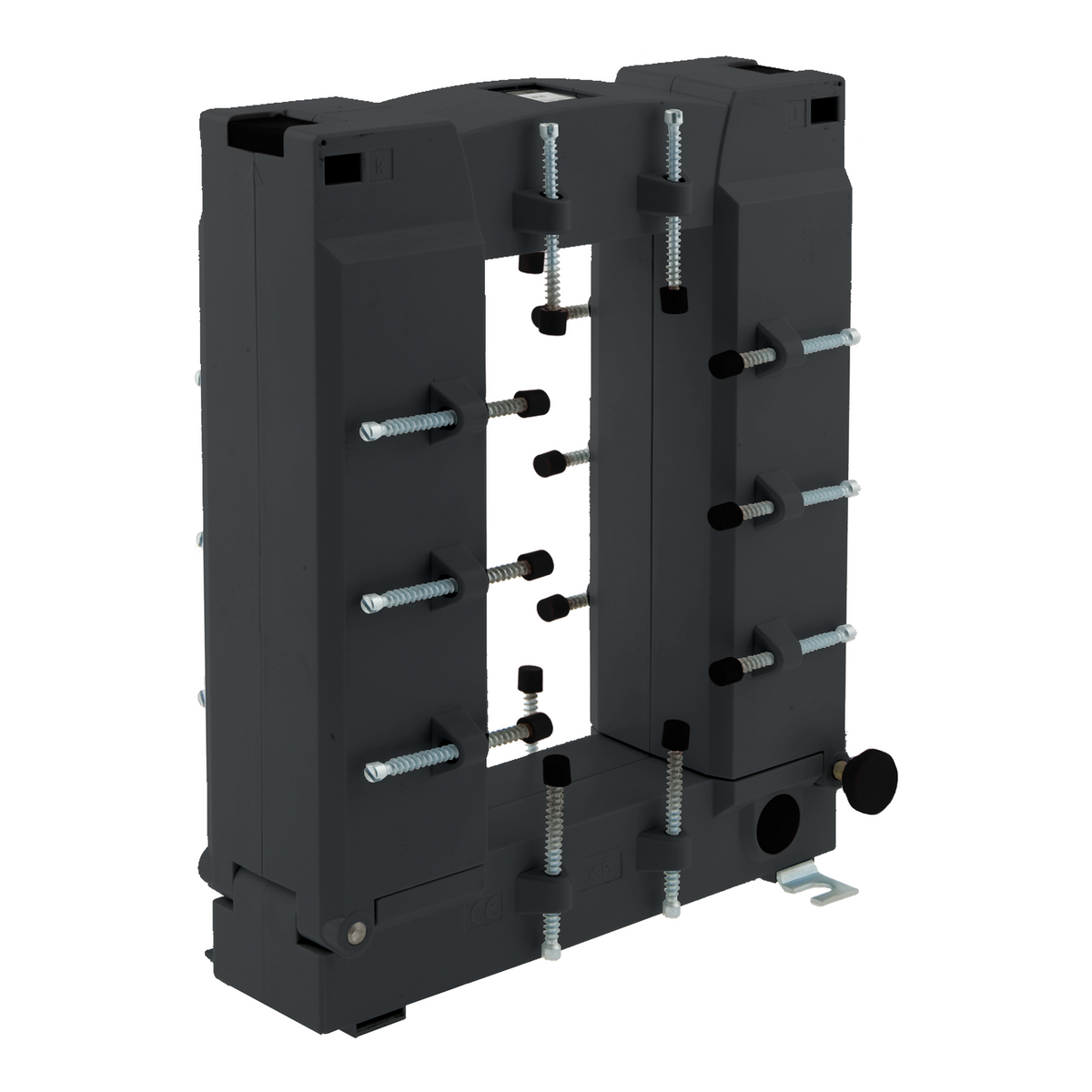

Schneider Electric METSECT5GJ100 PowerLogic GJ Type 1000/5 A Class 0.5 85 x 165 mm Current Transformer

Schneider Electric METSECT5GJ100 PowerLogic split-core current transformer, 1000/5 A ratio, Class 0.5, 85 x 165 mm opening.

Rated current
1000 A
Description

About the METSECT5GJ100

The Schneider Electric METSECT5GJ100 is a PowerLogic split-core current transformer for standard busbar, with a 1000/5 A ratio and a 85 x 165 mm opening. It scales the 1000 A primary current down to a 5 A secondary signal at Class 0.5 accuracy, and the split core opens to mount around an existing busbar without disconnecting the primary conductor.

Certifications & Standards

  • VDE 0414
  • DIN 42600-2
  • DIN EN 61869-1
  • DIN EN 61869-2

Selection Notes

The METSECT5GJ100 is sized for the 85 x 165 mm window used across the GJ type body; within that frame, choose the ratio that matches the installed primary current rather than the busbar size, since several ratios share the same window. Its split core lets it be fitted around a live busbar without breaking the circuit, and the 60000 A 1-second withstand rating with a 5x safety factor indicates how much fault current it tolerates before the secondary saturates.

Specification

Full specification

46 values · Last verified 30 Oct 2026

Main 6

Range PowerLogic
Product or component type Current transformer
Product name CT
Secondary current 5 A
Accuracy class Class 0.5 at 10 VA
[In] rated current 1000 A

Complementary 14

Current transformer type Standard for busbar, Split core
Current transformer ratio 1000/5
[Ith] conventional free air thermal current 1000 A
Maximum safety factor 5
Permissible current 60000 A during 1 s
[Ue] rated operational voltage < 720 V 50 Hz
[Ui] rated insulation voltage 3 kV 50 Hz for 1 minute
Mounting mode By screws
Mounting support DIN rail, Fastened onto a surface with screws
Width Outside: 195 mm, Inner: 85 mm
Height Outside: 243 mm, Inner: 165 mm
Depth 79 mm
Electrical insulation class Class E
Opening of bars 85 x 165

Environment 3

Standards VDE 0414, DIN 42600-2, DIN EN 61869-1, DIN EN 61869-2
Ambient air temperature for operation -5…40 °C
Ambient air temperature for storage -25…70 °C
Show all 46 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number METSECT5GJ100
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 19.5 cm
Package 1 Length 25.0 cm
Package 1 Weight 3.154 kg
Unit Type of Package 2 S03
Number of Units in Package 2 4
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 12.988 kg
Shipping weight 3.154 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for METSECT5GJ100

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • VDE 0414
  • DIN 42600-2
  • DIN EN 61869-1
  • DIN EN 61869-2
Quick answers

Questions about the METSECT5GJ100

What is the rated current of METSECT5GJ100?

The rated current of METSECT5GJ100 is 1000 A.

What is the HS code of METSECT5GJ100 for customs?

The tariff (HS) code on file for METSECT5GJ100 is 850431.

Where does METSECT5GJ100 ship from, and how fast?

METSECT5GJ100 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
