Part number
METSECT5GG150
$208.73 On request Dispatch — · From TürkiyeGet a Quote

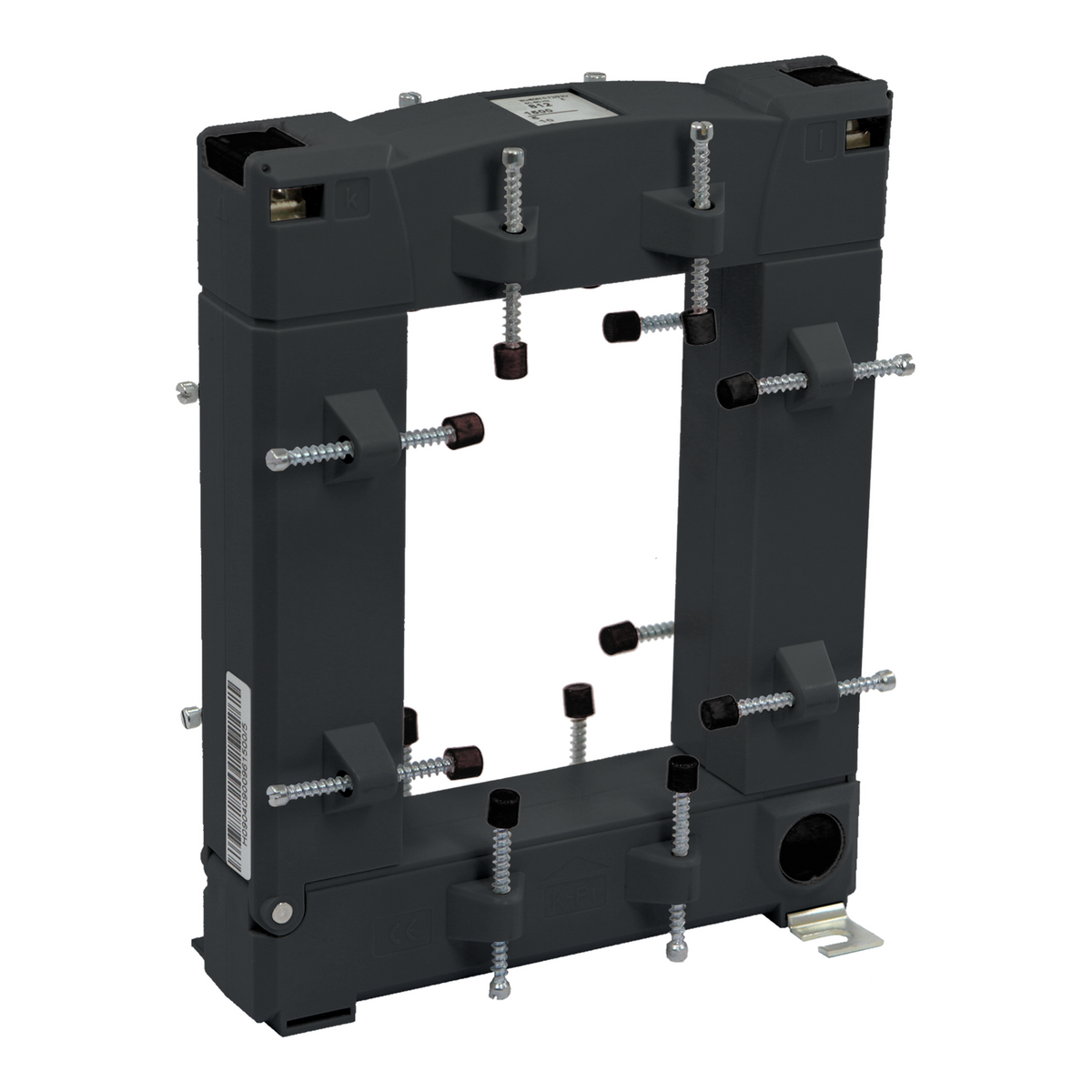

Schneider Electric METSECT5GG150 PowerLogic GG Type 1500/5 A Class 0.5 85 x 125 mm Current Transformer

Schneider Electric METSECT5GG150 PowerLogic split-core current transformer, 1500/5 A ratio, Class 0.5, 85 x 125 mm opening.

Rated current
1500 A
Description

About the METSECT5GG150

The Schneider Electric METSECT5GG150 is a PowerLogic split-core current transformer for standard busbar, with a 1500/5 A ratio and a 85 x 125 mm opening. It scales the 1500 A primary current down to a 5 A secondary signal at Class 0.5 accuracy, and the split core opens to mount around an existing busbar without disconnecting the primary conductor.

Certifications & Standards

  • VDE 0414
  • DIN 42600-2
  • DIN EN 61869-1
  • DIN EN 61869-2

Selection Notes

The METSECT5GG150 is sized for the 85 x 125 mm window used across the GG type body; within that frame, choose the ratio that matches the installed primary current rather than the busbar size, since several ratios share the same window. Its split core lets it be fitted around a live busbar without breaking the circuit, and the 60000 A 1-second withstand rating with a 5x safety factor indicates how much fault current it tolerates before the secondary saturates.

Specification

Full specification

46 values · Last verified 30 Oct 2026

Main 6

Range PowerLogic
Product or component type Current transformer
Product name CT
Secondary current 5 A
Accuracy class Class 0.5 at 7.5 VA
[In] rated current 1500 A

Complementary 14

Current transformer type Standard for busbar, Split core
Current transformer ratio 1500/5
[Ith] conventional free air thermal current 1500 A
Maximum safety factor 5
Permissible current 60000 A during 1 s
[Ue] rated operational voltage < 720 V 50 Hz
[Ui] rated insulation voltage 3 kV 50 Hz for 1 minute
Mounting mode By screws
Mounting support DIN rail, Fastened onto a surface with screws
Width Outside: 155 mm, Inner: 85 mm
Height Outside: 198.15 mm, Inner: 125 mm
Depth 58 mm
Electrical insulation class Class E
Opening of bars 85 x 125

Environment 3

Standards VDE 0414, DIN 42600-2, DIN EN 61869-1, DIN EN 61869-2
Ambient air temperature for operation -5…40 °C
Ambient air temperature for storage -25…70 °C
Show all 46 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number METSECT5GG150
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 16.0 cm
Package 1 Length 20.0 cm
Package 1 Weight 1.604 kg
Unit Type of Package 2 S03
Number of Units in Package 2 8
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 13.27 kg
Shipping weight 1.604 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for METSECT5GG150

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • VDE 0414
  • DIN 42600-2
  • DIN EN 61869-1
  • DIN EN 61869-2
Quick answers

Questions about the METSECT5GG150

What is the rated current of METSECT5GG150?

The rated current of METSECT5GG150 is 1500 A.

What is the HS code of METSECT5GG150 for customs?

The tariff (HS) code on file for METSECT5GG150 is 850431.

Where does METSECT5GG150 ship from, and how fast?

METSECT5GG150 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
