Schneider Electric METSECT5GA010 PowerLogic GA Type 100/5 A Class 3 23 x 33 mm Current Transformer

% $-116.77
Schneider Electric METSECT5GA010 PowerLogic Current Transformer 100/5 A Class 3
Schneider Electric METSECT5GA010 PowerLogic Current Transformer 100/5 A Class 3

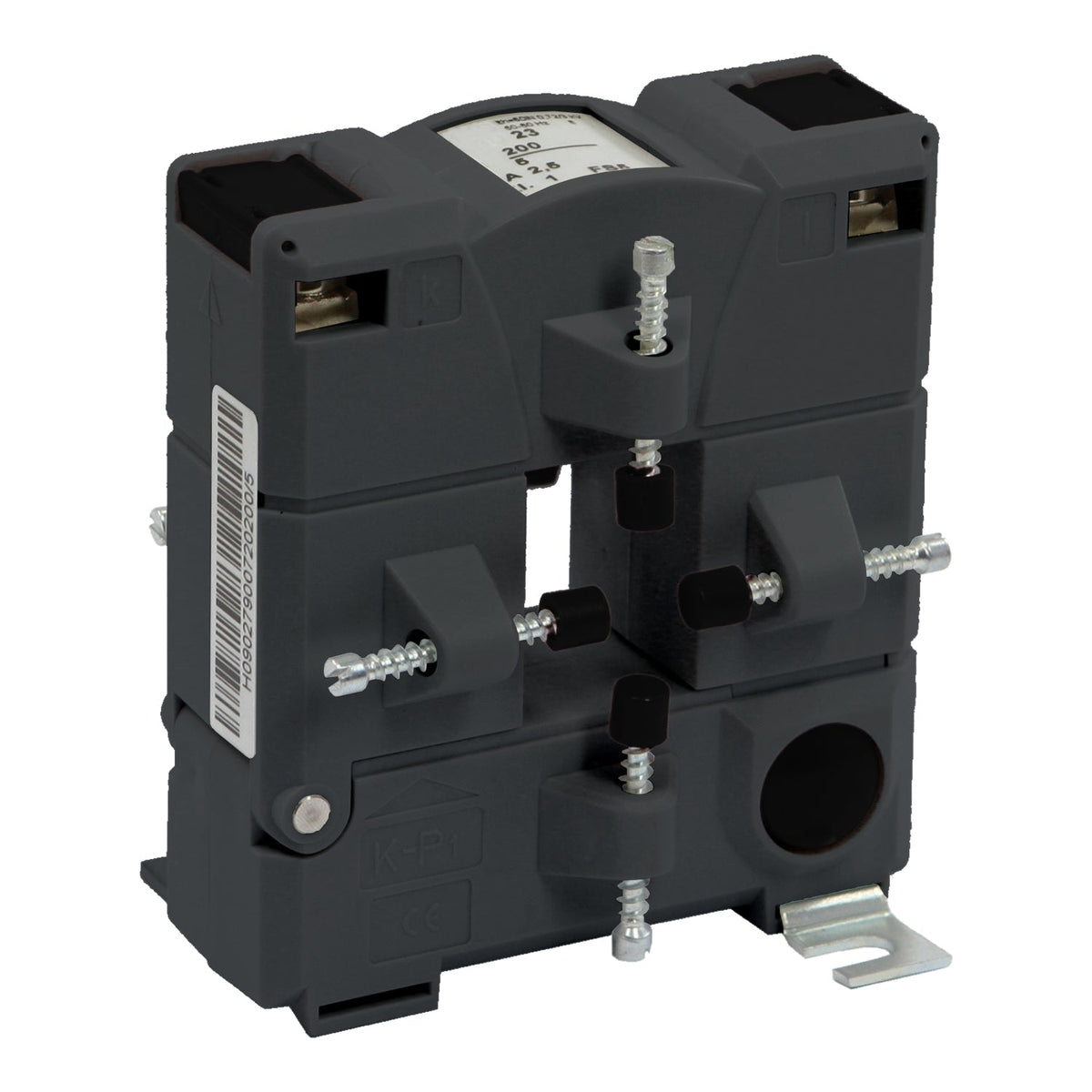

Schneider Electric METSECT5GA010 PowerLogic GA Type 100/5 A Class 3 23 x 33 mm Current Transformer

Brand: Schneider Electric
Reference No: METSECT5GA010
Catalog No: METSECT5GA010
Tariff Code (HS): 850431
Rated Current: 100 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$116.77

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECT5GA010 is a PowerLogic split-core current transformer for standard busbar, with a 100/5 A ratio and a 23 x 33 mm opening. It scales the 100 A primary current down to a 5 A secondary signal at Class 3 accuracy, and the split core opens to mount around an existing busbar without disconnecting the primary conductor.

Technical Specifications

Reference METSECT5GA010
Brand Schneider Electric
Range PowerLogic
Product or component type Current transformer
Current transformer type Standard for busbar, split core
Current transformer ratio 100/5
Rated primary current (In) 100 A
Secondary current 5 A
Accuracy class Class 3 at 1.25 VA
Conventional free air thermal current (Ith) 100 A
Maximum safety factor (FS) 5
Permissible current (1 s) 6000 A during 1 s
Rated operational voltage (Ue) < 720 V 50 Hz
Rated insulation voltage (Ui) 3 kV 50 Hz for 1 minute
Electrical insulation class Class E
Mounting mode By screws
Mounting support DIN rail or surface-mounted with screws
Opening of bars 23 x 33 mm
Outside dimensions (W x H x D) 93 x 106.15 x 58 mm
Operating temperature -5…40 °C
Storage temperature -25…70 °C

Certifications & Standards

  • VDE 0414
  • DIN 42600-2
  • DIN EN 61869-1
  • DIN EN 61869-2

Selection Notes

The METSECT5GA010 is sized for the 23 x 33 mm window used across the GA type body; within that frame, choose the ratio that matches the installed primary current rather than the busbar size, since several ratios share the same window. Its split core lets it be fitted around a live busbar without breaking the circuit, and the 6000 A 1-second withstand rating with a 5x safety factor indicates how much fault current it tolerates before the secondary saturates.

Technical Details

Short Description
Schneider Electric METSECT5GA010 PowerLogic split-core current transformer, 100/5 A ratio, Class 3, 23 x 33 mm opening.
Rated Current (Ampere)
100 A
Mounting Type
DIN rail or surface-mounted with screws
Catalog No
METSECT5GA010
Delivery Date (Days)
30 days
Model Number
PowerLogic GA Type
Tariff Code
850431
