Part number
METSECT5DE200
$80.71 On request Dispatch — · From TürkiyeGet a Quote

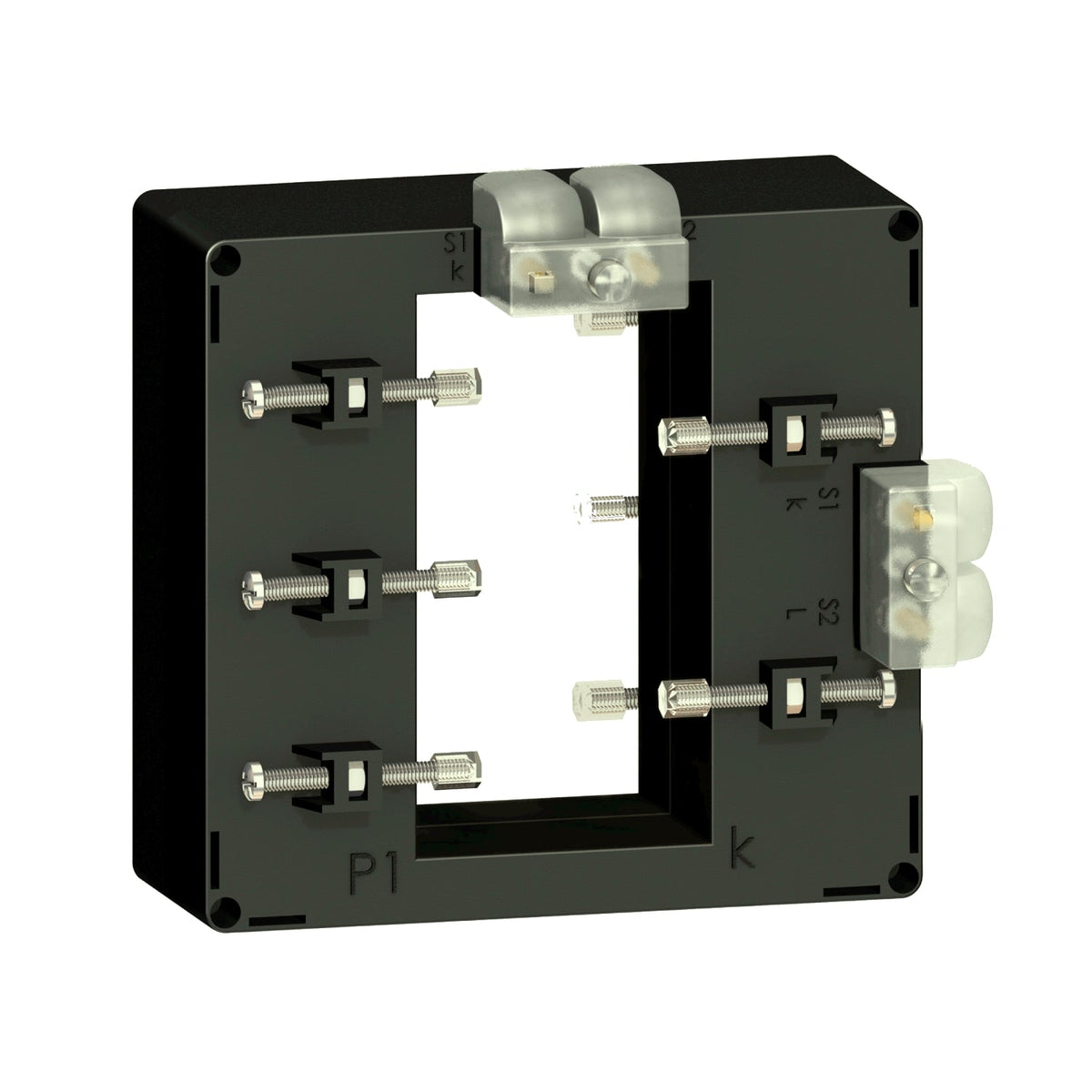

Schneider Electric METSECT5DE200 PowerLogic E2 Type 2000/5 A Class 0.5/1 102 x 54 mm Current Transformer

Schneider Electric METSECT5DE200 PowerLogic current transformer, 2000/5 A ratio, Class 0.5/1, 102 x 54 mm opening.

Rated current
2000 A
Description

About the METSECT5DE200

The Schneider Electric METSECT5DE200 is a PowerLogic current transformer, tropicalised for busbar mounting, with a 2000/5 A ratio and a 102 x 54 mm opening. It scales the 2000 A primary current down to a 5 A secondary signal at Class 0.5/1 accuracy for metering or protection relays, and its 0…95% humidity rating suits it to panels in hot, humid environments.

Certifications & Standards

  • CE
  • VDE 0414
  • IEC 61869-2

Selection Notes

The METSECT5DE200 carries the 2000/5 A ratio for the 102 x 54 mm busbar window; pick a lower or higher ratio from the same frame size only if the primary current changes, since the window opening stays fixed within this body size. At Class 0.5 accuracy it is suited to revenue metering and protection, while the solid-core, tropicalised construction and 0…95% humidity rating make it a fit for outdoor or coastal switchgear where a standard split-core unit would not be rated.

Specification

Full specification

51 values · Last verified 30 Oct 2026

Main 6

Range PowerLogic
Product or component type Current transformer
Product name CT
Secondary current 5 A
Accuracy class Class 0.5 at 20 VA, Class 1 at 25 VA
[In] rated current 2000 A

Complementary 17

Current transformer type Tropicalised for busbar, Solid core
Current transformer ratio 2000/5
[Ith] conventional free air thermal current 60 kA
Dynamic withstand current 2.5 Ith
Maximum safety factor 5
[Ue] rated operational voltage < 720 V AC 50/60 Hz
[Ui] rated insulation voltage 3 kV
Mounting mode Insulated locking screw
Mounting support Busbar
Width Inner: 55 mm, Outside: 135 mm
Height Outside: 129 mm, Inner: 103 mm
Depth Frame : 50 mm, Total : 85 mm
Net weight 0.792 kg
[Uimp] rated impulse withstand voltage 3 kV
Electrical insulation class Class B
Opening of bars 102 x 54
Sealing With

Environment 5

Standards VDE 0414, IEC 61869-2
Product certifications CE
IP degree of protection IP20
Relative humidity 0…95 %
Ambient air temperature for operation -25…50 °C
Show all 51 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number METSECT5DE200
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.8 cm
Package 1 Width 13.6 cm
Package 1 Length 17.0 cm
Package 1 Weight 832.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 10
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.807 kg
Shipping weight 0.792 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for METSECT5DE200

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • VDE 0414
  • IEC 61869-2
Quick answers

Questions about the METSECT5DE200

What is the rated current of METSECT5DE200?

The rated current of METSECT5DE200 is 2000 A.

What is the HS code of METSECT5DE200 for customs?

The tariff (HS) code on file for METSECT5DE200 is 850431.

Where does METSECT5DE200 ship from, and how fast?

METSECT5DE200 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
