- Part number
- METSECT5DE125
Description
About the METSECT5DE125
About the METSECT5DE125

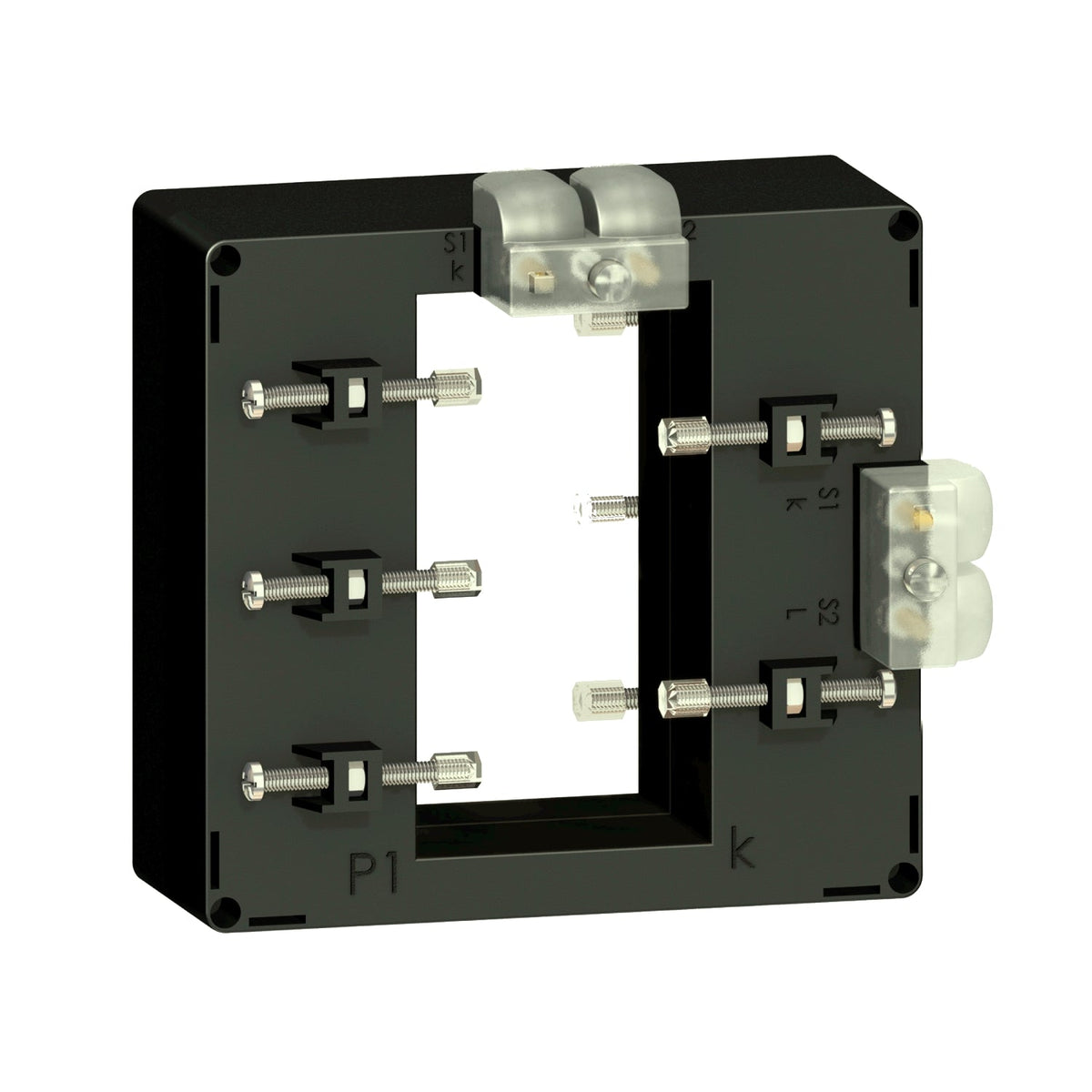

The Schneider Electric METSECT5DE125 is a PowerLogic current transformer, tropicalised for busbar mounting, with a 1250/5 A ratio and a 102 x 54 mm opening. It scales the 1250 A primary current down to a 5 A secondary signal at Class 0.5/1 accuracy for metering or protection relays, and its 0…95% humidity rating suits it to panels in hot, humid environments.
Certifications & Standards
- CE
- IEC 61869-2
- VDE 0414
Selection Notes
The METSECT5DE125 carries the 1250/5 A ratio for the 102 x 54 mm busbar window; pick a lower or higher ratio from the same frame size only if the primary current changes, since the window opening stays fixed within this body size. At Class 0.5 accuracy it is suited to revenue metering and protection, while the solid-core, tropicalised construction and 0…95% humidity rating make it a fit for outdoor or coastal switchgear where a standard split-core unit would not be rated.
Specification
Full specification
Main 6
| Range | PowerLogic |
|---|---|
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 15 VA, Class 1 at 20 VA |
| [In] rated current | 1250 A |
Complementary 16
| Current transformer type | Tropicalised for busbar, Solid core |
|---|---|
| Current transformer ratio | 1250/5 |
| [Ith] conventional free air thermal current | 60 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| Mounting mode | Insulated locking screw |
| Mounting support | Busbar |
| Width | Inner: 55 mm, Outside: 135 mm |
| Height | Outside: 129 mm, Inner: 103 mm |
| Depth | Frame : 50 mm, Total : 85 mm |
| Net weight | 0.662 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Opening of bars | 102 x 54 |
| Sealing | With |
Environment 5
| Standards | IEC 61869-2, VDE 0414 |
|---|---|
| Product certifications | CE |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…50 °C |
Show all 50 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | METSECT5DE125 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.8 cm |
| Package 1 Width | 13.6 cm |
| Package 1 Length | 17.0 cm |
| Package 1 Weight | 728.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.767 kg |
| Shipping weight | 0.662 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for METSECT5DE125
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- IEC 61869-2
- VDE 0414
Quick answers
Questions about the METSECT5DE125
What is the rated current of METSECT5DE125?
The rated current of METSECT5DE125 is 1250 A.
What is the HS code of METSECT5DE125 for customs?
The tariff (HS) code on file for METSECT5DE125 is 850431.
Where does METSECT5DE125 ship from, and how fast?
METSECT5DE125 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
