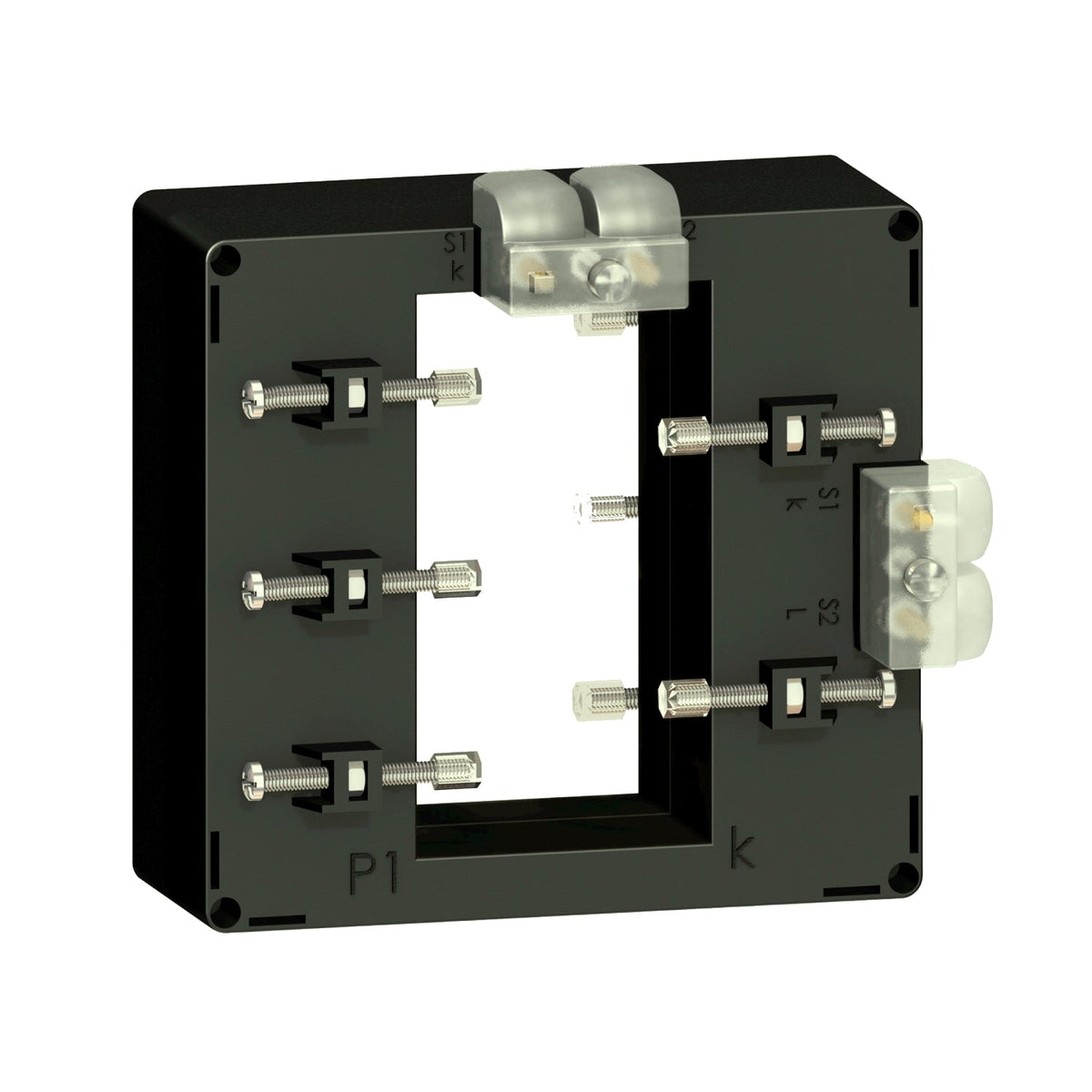

Schneider Electric METSECT5DE100 PowerLogic E1 Type 1000/5 A Class 0.5/1 102 x 54 mm Current Transformer

The Schneider Electric METSECT5DE100 is a PowerLogic current transformer, tropicalised for busbar mounting, with a 1000/5 A ratio and a 102 x 54 mm opening. It scales the 1000 A primary current down to a 5 A secondary signal at Class 0.5/1 accuracy for metering or protection relays, and its 0…95% humidity rating suits it to panels in hot, humid environments.

Technical Specifications

Certifications & Standards

• CE
• VDE 0414
• IEC 61869-2

Selection Notes

The METSECT5DE100 carries the 1000/5 A ratio for the 102 x 54 mm busbar window; pick a lower or higher ratio from the same frame size only if the primary current changes, since the window opening stays fixed within this body size. At Class 0.5 accuracy it is suited to revenue metering and protection, while the solid-core, tropicalised construction and 0…95% humidity rating make it a fit for outdoor or coastal switchgear where a standard split-core unit would not be rated.
