- Part number
- METSECT5DD100
Description
About the METSECT5DD100
About the METSECT5DD100

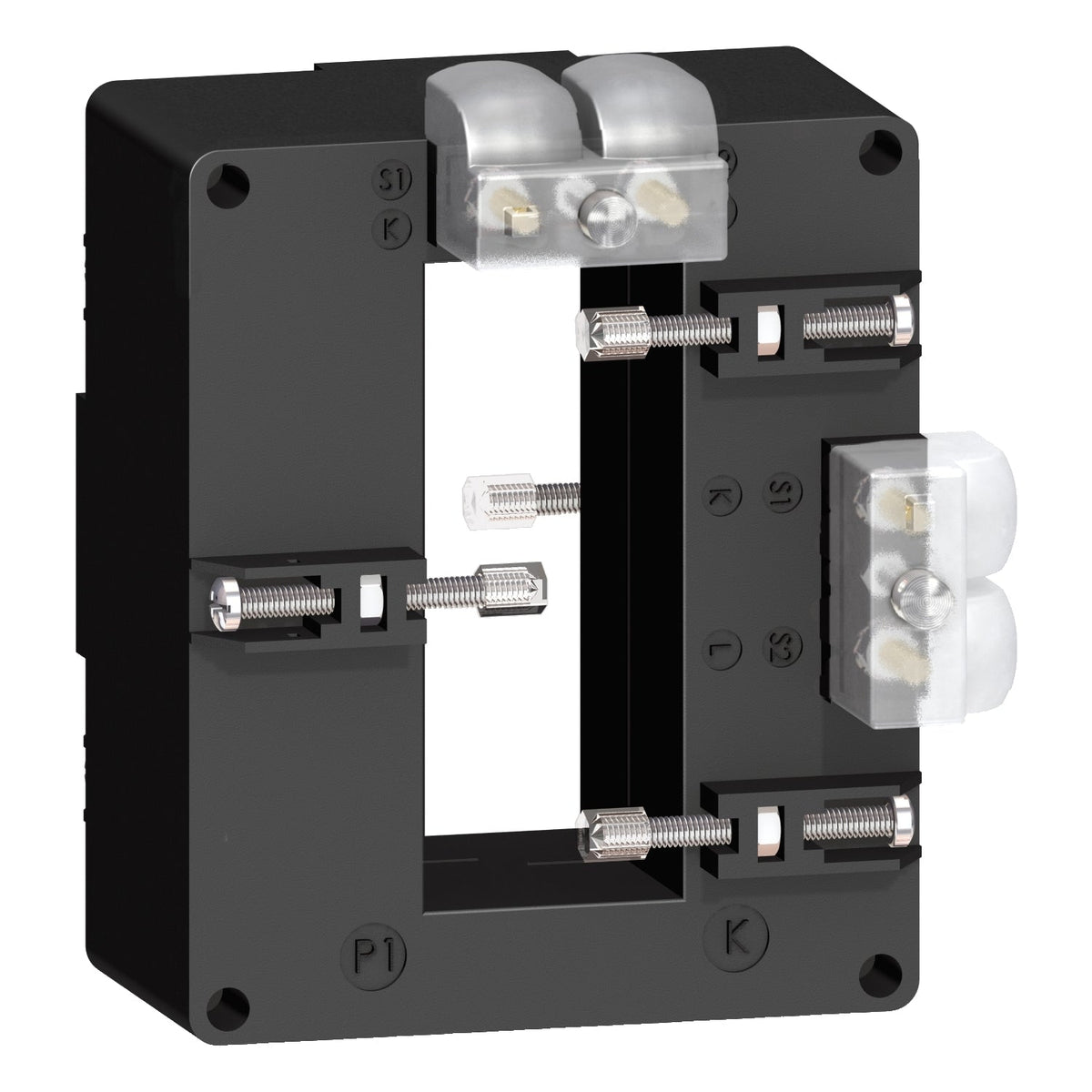

The Schneider Electric METSECT5DD100 is a PowerLogic current transformer, tropicalised for busbar mounting, with a 1000/5 A ratio and a 84 x 34 mm opening. It scales the 1000 A primary current down to a 5 A secondary signal at Class 0.5/1 accuracy for metering or protection relays, and its 0…95% humidity rating suits it to panels in hot, humid environments.
Certifications & Standards
- CE
- IEC 61869-2
- VDE 0414
Selection Notes
The METSECT5DD100 carries the 1000/5 A ratio for the 84 x 34 mm busbar window; pick a lower or higher ratio from the same frame size only if the primary current changes, since the window opening stays fixed within this body size. At Class 0.5 accuracy it is suited to revenue metering and protection, while the solid-core, tropicalised construction and 0…95% humidity rating make it a fit for outdoor or coastal switchgear where a standard split-core unit would not be rated.
Specification
Full specification
Main 6
| Range | PowerLogic |
|---|---|
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 10 VA, Class 1 at 15 VA |
| [In] rated current | 1000 A |
Complementary 17
| Current transformer type | Tropicalised for busbar, Solid core |
|---|---|
| Current transformer ratio | 1000/5 |
| [Ith] conventional free air thermal current | 60 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| Mounting mode | Insulated locking screw |
| Mounting support | Busbar |
| Width | Outside: 96 mm, Inner: 34 mm |
| Height | Outside: 116 mm, Inner: 84 mm |
| Depth | Frame : 40 mm, Total : 78.4 mm |
| Net weight | 0.611 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Opening of bars | 84 x 34 |
| Sealing | With |
Environment 5
| Standards | IEC 61869-2, VDE 0414 |
|---|---|
| Product certifications | CE |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…60 °C |
Show all 51 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | METSECT5DD100 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.700 cm |
| Package 1 Width | 10.400 cm |
| Package 1 Length | 13.700 cm |
| Package 1 Weight | 592.600 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.511 kg |
| Shipping weight | 0.611 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
