- Part number
- METSECT5DC400
Description
About the METSECT5DC400
About the METSECT5DC400

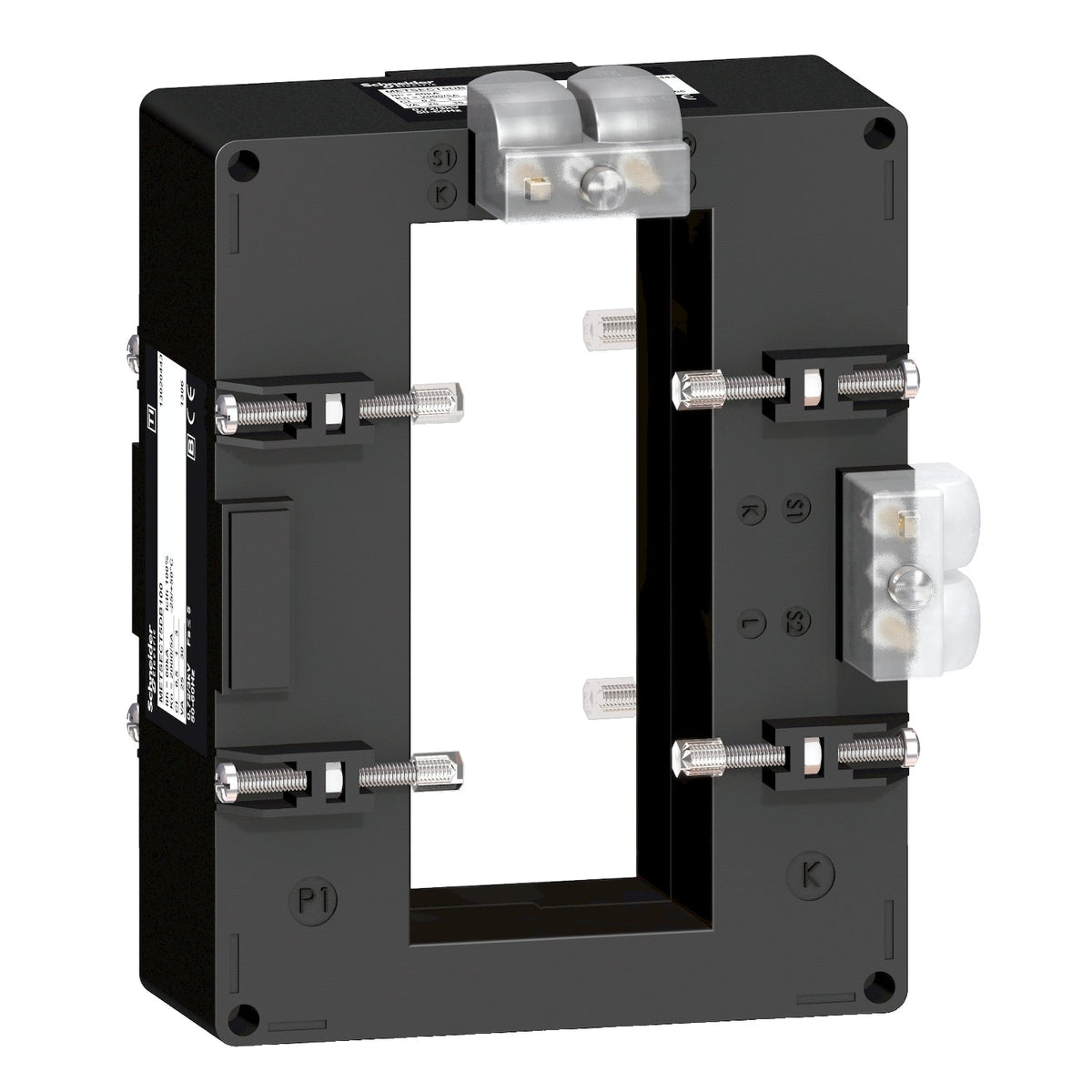

The Schneider Electric METSECT5DC400 is a PowerLogic current transformer, tropicalised for busbar mounting, with a 4000/5 A ratio and a 54 x 127 mm opening. It scales the 4000 A primary current down to a 5 A secondary signal at Class 0.5/1 accuracy for metering or protection relays, and its 0…95% humidity rating suits it to panels in hot, humid environments.
Certifications & Standards
- CE
- EAC
- VDE 0414
- IEC 61869-2
Selection Notes
The METSECT5DC400 carries the 4000/5 A ratio for the 54 x 127 mm busbar window; pick a lower or higher ratio from the same frame size only if the primary current changes, since the window opening stays fixed within this body size. At Class 0.5 accuracy it is suited to revenue metering and protection, while the solid-core, tropicalised construction and 0…95% humidity rating make it a fit for outdoor or coastal switchgear where a standard split-core unit would not be rated.
Specification
Full specification
Main 6
| Range | PowerLogic |
|---|---|
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 30 VA, Class 1 at 50 VA |
| [In] rated current | 4000 A |
Complementary 17
| Current transformer type | Tropicalised for busbar, Solid core |
|---|---|
| Current transformer ratio | 4000/5 |
| [Ith] conventional free air thermal current | 60 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| Mounting mode | Insulated locking screw |
| Mounting support | Busbar |
| Width | Outside: 125 mm, Inner: 54 mm |
| Height | Outside: 160 mm, Inner: 127 mm |
| Depth | Frame : 40 mm, Total : 87 mm |
| Net weight | 1.282 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Opening of bars | 54 x 127 |
| Sealing | With |
Environment 5
| Standards | VDE 0414, IEC 61869-2 |
|---|---|
| Product certifications | CE, EAC |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…50 °C |
Show all 51 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | METSECT5DC400 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.300 cm |
| Package 1 Width | 13.600 cm |
| Package 1 Length | 17.200 cm |
| Package 1 Weight | 1.348 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 13.880 kg |
| Shipping weight | 1.282 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for METSECT5DC400
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- EAC
- VDE 0414
- IEC 61869-2
Quick answers
Questions about the METSECT5DC400
What is the rated current of METSECT5DC400?
The rated current of METSECT5DC400 is 4000 A.
What is the HS code of METSECT5DC400 for customs?
The tariff (HS) code on file for METSECT5DC400 is 850431.
Where does METSECT5DC400 ship from, and how fast?
METSECT5DC400 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
