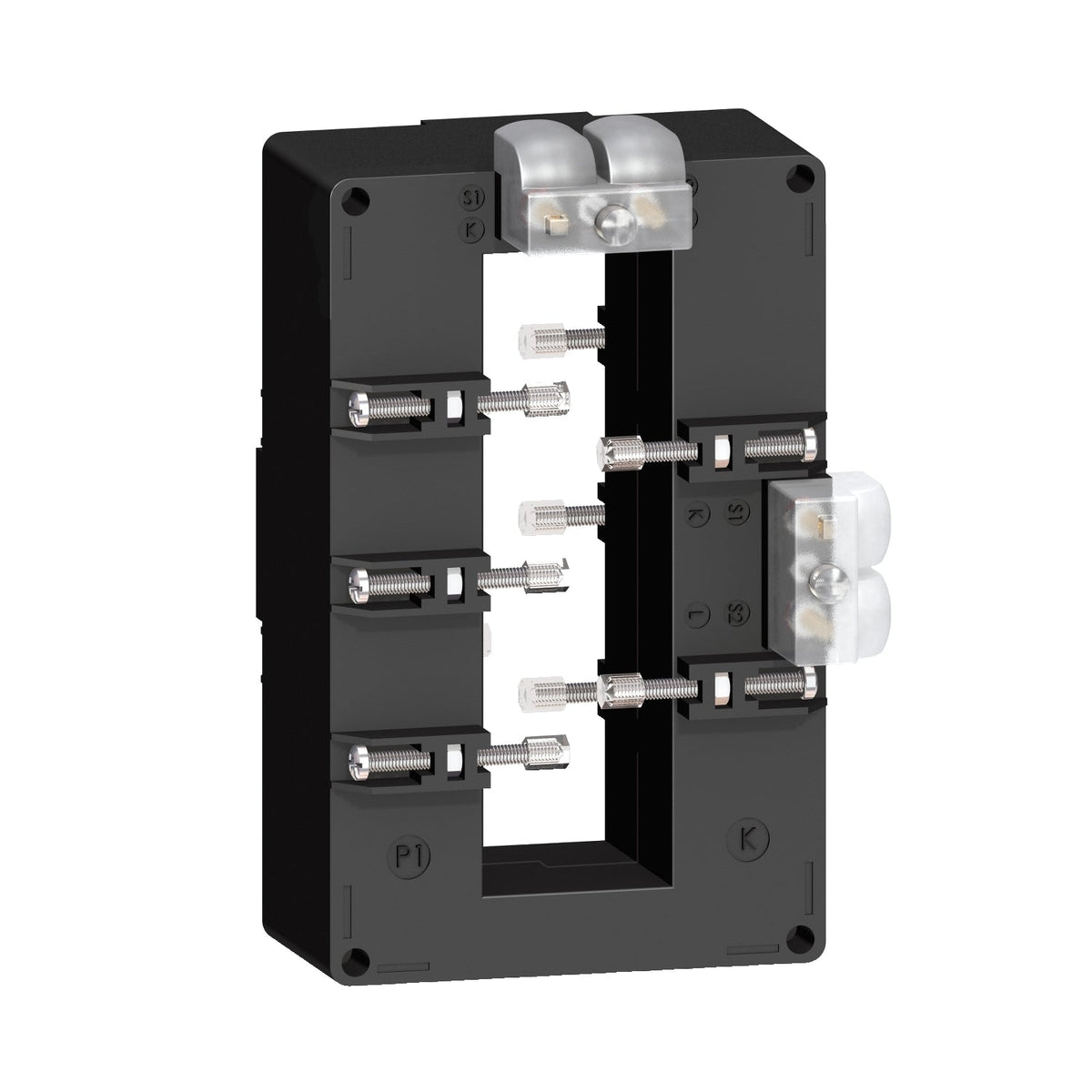

Schneider Electric METSECT5DB150 PowerLogic CT 1500/5 A Class 0.5 127 x 38 mm Busbar Current Transformer

PowerLogic 1500/5 A current transformer, Class 0.5, 127 x 38 mm busbar window, IEC 61869-2.

Rated current
1500 A
Description

About the METSECT5DB150

The Schneider Electric METSECT5DB150 is a PowerLogic solid-core current transformer tropicalised for busbar mounting, with a 1500/5 A current ratio and a 127 x 38 mm busbar opening. It is rated Class 0.5 accuracy (Class 0.5 at 10 VA, Class 1 at 15 VA) with a 60 kA thermal withstand current, built for insulated locking-screw installation directly on the busbar.

Certifications & Standards

  • EAC
  • CE
  • IEC 61869-2
  • VDE 0414

Selection Notes

This busbar-mount CT is matched to a 127 x 38 mm bar window, so the opening size — not just the current ratio — determines whether it fits the switchboard's existing busbar cross-section; a higher-current sibling in the same window size shares the identical mounting footprint, which simplifies retrofits. Its 60 kA thermal withstand current tracks the 1500 A rating, giving the short-circuit margin needed when the CT sits directly on a high-fault-level busbar rather than a cable. Use the Class 0.5 tap for sub-billing or revenue metering and the Class 1 tap for standard panel indication on the same core.

Specification

Full specification

51 values · Last verified 30 Oct 2026

Main 6

Range PowerLogic
Product or component type Current transformer
Product name CT
Secondary current 5 A
Accuracy class Class 0.5 at 10 VA, Class 1 at 15 VA
[In] rated current 1500 A

Complementary 17

Current transformer type Tropicalised for busbar, Solid core
Current transformer ratio 1500/5
[Ith] conventional free air thermal current 60 kA
Dynamic withstand current 2.5 Ith
Maximum safety factor 5
[Ue] rated operational voltage < 720 V AC 50/60 Hz
[Ui] rated insulation voltage 3 kV
Mounting mode Insulated locking screw
Mounting support Busbar
Width Inner: 38 mm, Outside: 99 mm
Height Inner: 127 mm, Outside: 160 mm
Depth Frame : 40 mm, Total : 78.4 mm
Net weight 0.805 kg
[Uimp] rated impulse withstand voltage 3 kV
Electrical insulation class Class B
Opening of bars 127 x 38
Sealing With

Environment 5

Standards IEC 61869-2, VDE 0414
Product certifications EAC, CE
IP degree of protection IP20
Relative humidity 0…95 %
Ambient air temperature for operation -25…50 °C
Show all 51 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number METSECT5DB150
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.600 cm
Package 1 Width 10.400 cm
Package 1 Length 17.200 cm
Package 1 Weight 758.800 g
Unit Type of Package 2 S03
Number of Units in Package 2 10
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.988 kg
Shipping weight 0.805 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for METSECT5DB150

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • EAC
  • IEC 61869-2
  • VDE 0414
Quick answers

Questions about the METSECT5DB150

What is the rated current of METSECT5DB150?

The rated current of METSECT5DB150 is 1500 A.

What is the HS code of METSECT5DB150 for customs?

The tariff (HS) code on file for METSECT5DB150 is 850431.

Where does METSECT5DB150 ship from, and how fast?

METSECT5DB150 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
