- Part number
- METSECT5DA150
Description
About the METSECT5DA150
About the METSECT5DA150

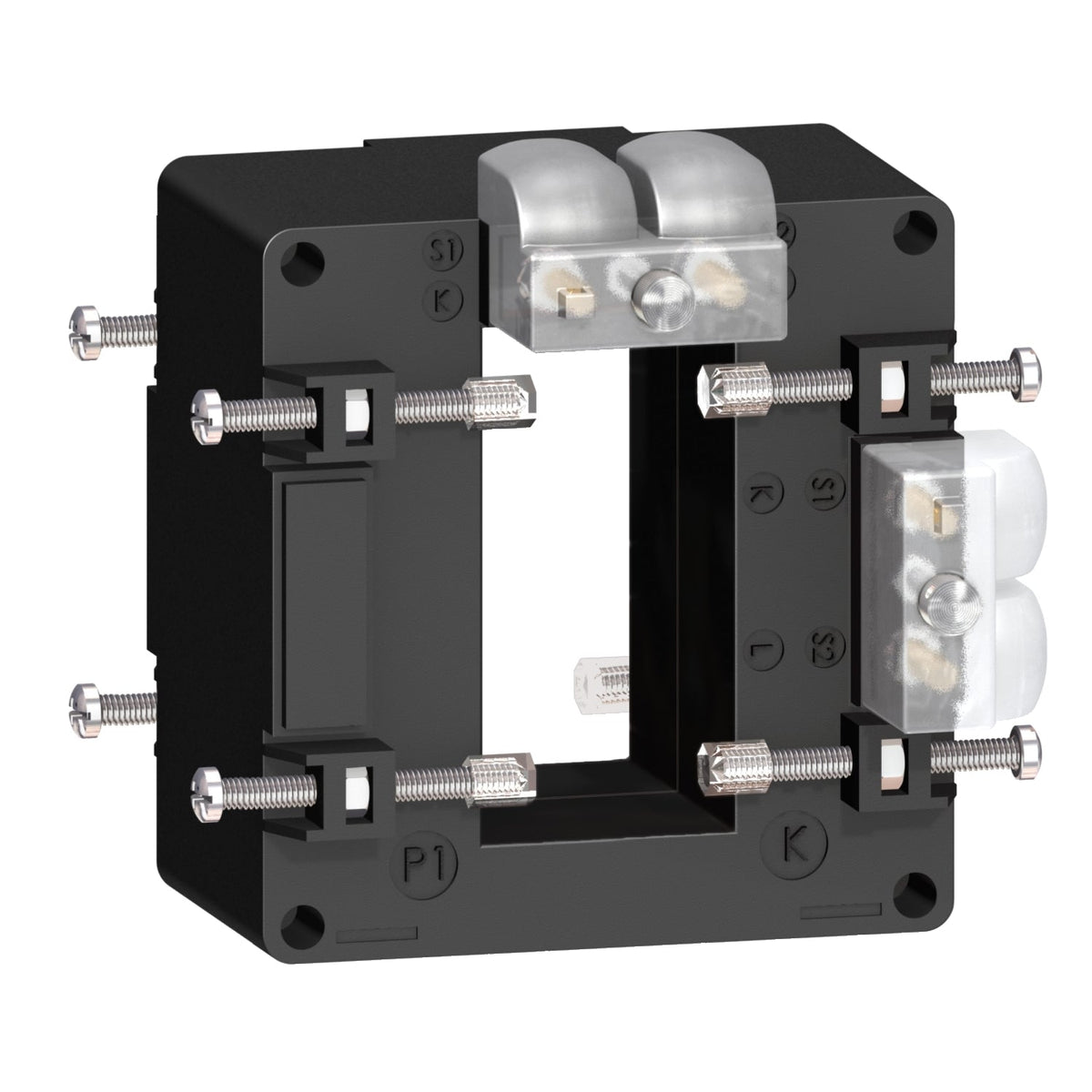

The Schneider Electric METSECT5DA150 is a PowerLogic solid-core current transformer tropicalised for busbar mounting, with a 1500/5 A current ratio and a 65 x 32 mm busbar opening. It is rated Class 0.5 accuracy (Class 0.5 at 20 VA, Class 1 at 25 VA) with a 60 kA thermal withstand current, built for insulated locking-screw installation directly on the busbar.
Certifications & Standards
- EAC
- CE
- VDE 0414
- IEC 61869-2
Selection Notes
This busbar-mount CT is matched to a 65 x 32 mm bar window, so the opening size — not just the current ratio — determines whether it fits the switchboard's existing busbar cross-section; a higher-current sibling in the same window size shares the identical mounting footprint, which simplifies retrofits. Its 60 kA thermal withstand current tracks the 1500 A rating, giving the short-circuit margin needed when the CT sits directly on a high-fault-level busbar rather than a cable. Use the Class 0.5 tap for sub-billing or revenue metering and the Class 1 tap for standard panel indication on the same core.
Specification
Full specification
Main 6
| Range | PowerLogic |
|---|---|
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 20 VA, Class 1 at 25 VA |
| [In] rated current | 1500 A |
Complementary 17
| Current transformer type | Tropicalised for busbar, Solid core |
|---|---|
| Current transformer ratio | 1500/5 |
| [Ith] conventional free air thermal current | 60 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| Mounting mode | Insulated locking screw |
| Mounting support | Busbar |
| Width | Outside: 90 mm, Inner: 32 mm |
| Height | Outside: 94 mm, Inner: 65 mm |
| Depth | Frame : 40 mm, Total : 90 mm |
| Net weight | 0.666 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Opening of bars | 65 x 32 |
| Sealing | With |
Environment 5
| Standards | VDE 0414, IEC 61869-2 |
|---|---|
| Product certifications | EAC, CE |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…50 °C |
Show all 51 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | METSECT5DA150 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.500 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 10.000 cm |
| Package 1 Weight | 654.200 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.867 kg |
| Shipping weight | 0.666 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for METSECT5DA150
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- EAC
- VDE 0414
- IEC 61869-2
Quick answers
Questions about the METSECT5DA150
What is the rated current of METSECT5DA150?
The rated current of METSECT5DA150 is 1500 A.
What is the HS code of METSECT5DA150 for customs?
The tariff (HS) code on file for METSECT5DA150 is 850431.
Where does METSECT5DA150 ship from, and how fast?
METSECT5DA150 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
