- Part number
- METSECT5CC008
Description
About the METSECT5CC008
About the METSECT5CC008

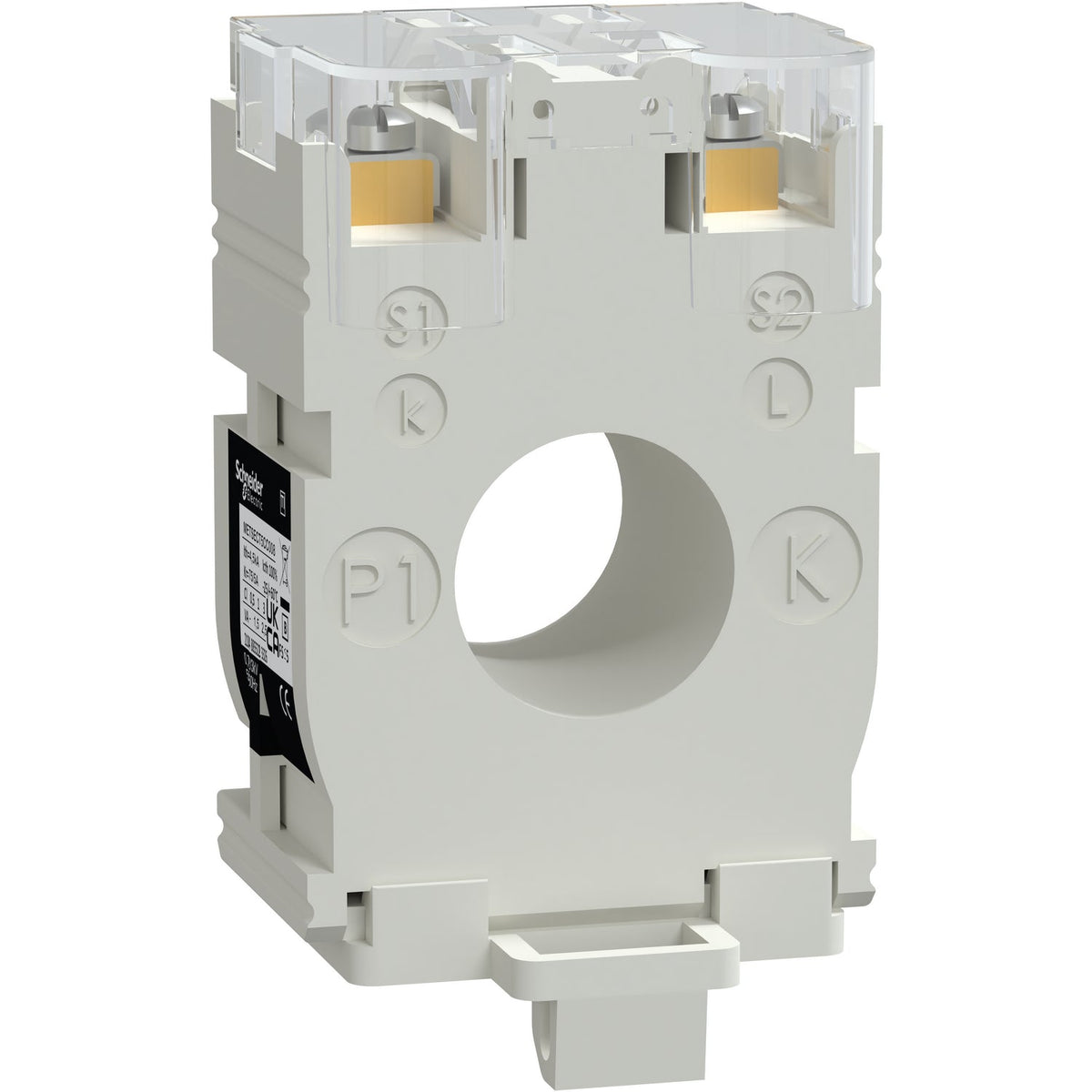

The Schneider Electric METSECT5CC008 is a PowerLogic solid-core current transformer tropicalised for cable mounting, with a 75/5 A current ratio and a 21 mm cable window. It is rated Class 1 accuracy (Class 1 at 1.5 VA, Class 3 at 2.5 VA) with a 4.5 kA thermal withstand current, suitable for metering and protection-relay current inputs on DIN rail or mounting-plate panels.
Certifications & Standards
- CE
- EAC
- IEC 61869-2
- VDE 0414
Selection Notes
Accuracy class sets the use case: this unit is supplied without a Class 0.5 tap, so it is suited to panel indication (Class 1) and protection-relay feeds (Class 3) rather than billing-grade metering. The 4.5 kA thermal withstand current scales with the 75 A rating, so moving to a higher-current sibling in the CC series also raises the short-circuit withstand available at the metering point — pick the ratio that matches the actual line current rather than the breaker frame size, since oversizing a CT ratio reduces measurement resolution at normal load.
Specification
Full specification
Main 6
| Range | PowerLogic |
|---|---|
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 1 at 1.5 VA, Class 3 at 2.5 VA |
| [In] rated current | 75 A |
Complementary 18
| Current transformer type | Tropicalised for cable, Solid core |
|---|---|
| Current transformer ratio | 75/5 |
| [Ith] conventional free air thermal current | 4.5 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV 50 Hz for 1 minute |
| Mounting mode | Clip-on, By screws |
| Mounting support | DIN rail, Mounting plate |
| Width | Outside: 44 mm |
| Height | Outside: 65 mm |
| Depth | Frame : 30 mm, Total : 37 mm |
| Diameter | 21 mm |
| Net weight | 0.19 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Cable outer diameter | 21 mm |
| Sealing | With |
Environment 5
| Standards | IEC 61869-2, VDE 0414 |
|---|---|
| Product certifications | CE, EAC |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…60 °C |
Show all 52 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | METSECT5CC008 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 5.500 cm |
| Package 1 Length | 8.200 cm |
| Package 1 Weight | 187.400 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.670 kg |
| Shipping weight | 0.19 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for METSECT5CC008
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- EAC
- IEC 61869-2
- VDE 0414
Quick answers
Questions about the METSECT5CC008
What is the rated current of METSECT5CC008?
The rated current of METSECT5CC008 is 75 A.
What is the HS code of METSECT5CC008 for customs?
The tariff (HS) code on file for METSECT5CC008 is 850431.
Where does METSECT5CC008 ship from, and how fast?
METSECT5CC008 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
