Schneider Electric LZ8H6X5BD TeSys Hybrid Reversing Ultra-Compact Starter 3P 1.5-9 A 3 kW 24 V Motor Starter

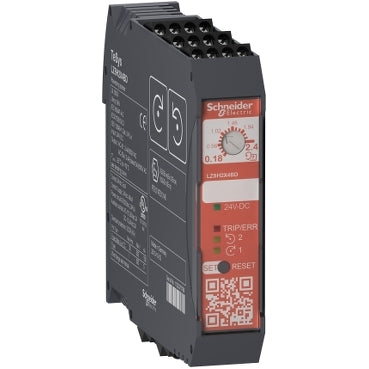

The Schneider Electric LZ8H6X5BD is a TeSys Hybrid ultra-compact reversing starter with an integrated Safe Torque Off function, sized for 3-phase motors up to 3 kW at 400 V. It combines forward/reverse hybrid power contacts, class 10A thermal overload protection and SIL3/PLe safety in a 22.5 mm wide housing, with a dial-adjustable thermal range of 1.5-9 A on a 24 V DC control circuit.

Technical Specifications

Certifications & Standards

• IEC 60947-4-2
• UL 60947-4-1

Selection Notes

The LZ8H6X5BD is the highest-power reversing starter in the TeSys Hybrid safety lineup, four times the motor rating of the 2X4 safety variants in the same 22.5 mm width. Above 30 degC ambient the unit must be derated, so verify enclosure ventilation before specifying it in a dense cabinet. Where the application does not need reversing, the LZ7H2X4BD and its 0.75 kW rating is not a substitute — there is no single-direction STO variant at the 3 kW power level in this family grouping, so confirm direction requirements before ordering.
