Part number
LZ7H2X4BD
Model no
LZ7H
$267.64 On request Dispatch — · From TürkiyeGet a Quote

Schneider Electric LZ7H2X4BD TeSys Hybrid Ultra-Compact Starter 3P 0.18-2.4 A 0.75 kW 24 V DC Motor Starter

TeSys Hybrid ultra-compact starter with Safe Torque Off, 0.18-2.4 A, 0.75 kW at 400 V, 24 V DC coil.

Rated current
2.4 A
Rated operational voltage
24 V DC
Motor power
0.75 kW
Poles
3P
Display
LED status (tripping, running)
EAN
3606485421018
Description

About the LZ7H

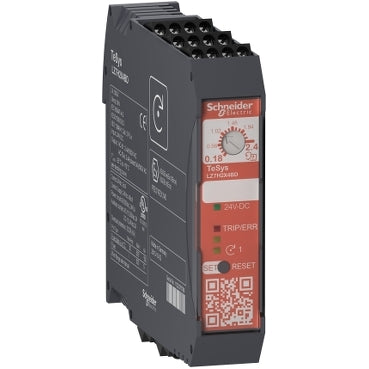

The Schneider Electric LZ7H2X4BD is a TeSys Hybrid ultra-compact direct-on-line starter with an integrated Safe Torque Off function, combining hybrid power contacts, class 10A thermal overload protection and SIL3/PLe safety in a 22.5 mm wide housing, for 3-phase motors up to 0.75 kW at 400 V. The thermal range is adjustable 0.18-2.4 A on a 24 V DC control circuit.

Certifications & Standards

  • IEC 60947-4-2
  • UL 60947-4-1

Selection Notes

The built-in STO function lets the LZ7H2X4BD be wired directly into a safety chain without an external safety relay or contactor, at SIL3 per IEC 61508-1 and PLe per ISO 13849-1 — pick it over the non-safety LZ1H2X4BD whenever the application needs a certified safe-stop function. Because the safety function removes automatic reset, only manual or electrical reset is available after a thermal trip, unlike the non-safety variants. Choose the LZ8H2X4BD instead if the motor also needs forward/reverse control.

Specification

Full specification

52 values · Last verified 30 Oct 2026

Main 15

Range TeSys
Product name TeSys Hybrid
Device short name LZ7H
Product or Component Type Ultra-compact starter
Motor starter type Direct on line
Poles description 3P
[Ue] rated operational voltage 500 V AC
[Ie] rated operational current 2.4 A 500 V AC-51, 2.4 A 500 V AC-53A, 2.4 A 500 V AC-51 mounting side by side, 2.4 A 500 V AC-53A mounting side by side
Thermal protection adjustment range 0.18…2.4 A
Motor power kW 0.37 kW 220 V AC 0.65, 0.37 kW 230 V AC 0.65, 0.75 kW 380 V AC 0.65, 0.75 kW 400 V AC 0.65, 0.75 kW 415 V AC 0.65, 0.75 kW 440 V AC 0.65, 1.1 kW 500 V AC 0.65
Maximum Horse Power Rating 0.5 hp 200 V AC, 0.5 hp 230 V AC, 1 hp 460 V AC
[Uc] control circuit voltage 24 V DC
Safety level SIL 3 IEC 61508-1 stop function, PL = e ISO 13849-1 stop function, SIL 2 IEC 61508-1 motor protection
Safety reliability data MTTFd = 517 years stop function, SFF = 99 % stop function, SFF = 99 % motor protection, MTTFd = 447 years motor protection, PFHd = 2.40E-9 1/h stop function
Thermal overload class Class 10A IEC 60947-4-2

Complementary 19

Auxiliary contact composition 1 C/O fault signalling
Control circuit voltage limits 19.2...30 V DC
Current consumption <= 40 mA 24 V DC
Reset Manual, Electrical reset
Electrical durability 30 Mcycles
Maximum operating rate 120 cyc/mn AC-51 50 %, 6 cyc/mn AC-53A 50 %
Mounting Mode By clips
Mounting Support DIN rail
Connections - terminals screw clamp terminals 1 0.0003…0.004 in² (0.2…2.5 mm²) rigid, screw clamp terminals 1 0.0004…0.004 in² (0.25…2.5 mm²) flexible - with cable end, screw clamp terminals 1 0.0003…0.004 in² (0.2…2.5 mm²) flexible - without cable end
Tightening torque 4.4…5.3 lbf.in (0.5…0.6 N.m) flat Ø 2.5 mm screwdriver 0.1 in (3 mm)
Certifications CE, CULus, ATEX as associated device for motor protection in zones 1 and 21
Standards IEC 60947-4-2, UL 60947-4-1
[Ui] rated insulation voltage 500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 6 kV
Pollution degree 2
Width 0.9 in (22.5 mm)
Height 3.9 in (99 mm)
Depth 4.5 in (114.5 mm)
Net Weight 7.5 oz (212 g)

Environment 4

IP degree of protection IP20
Protective treatment TC
Ambient air temperature for operation -13…158 °F (-25…70 °C) without derating
Ambient Air Temperature for Storage -40…176 °F (-40…80 °C)
Show all 52 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LZ7H2X4BD
Type designation LZ7H
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606485421018

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin DE
Shipping weight 0.212 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
