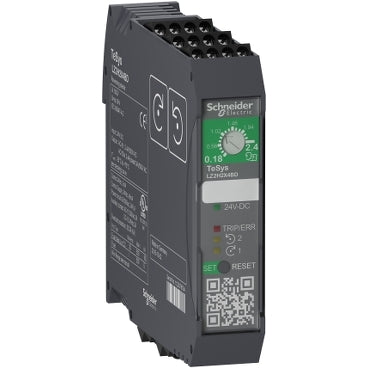

Schneider Electric LZ2H6X5BD TeSys Hybrid Reversing Ultra-Compact Starter 3P 1.5-9 A 3 kW 24 V Motor Starter

TeSys Hybrid ultra-compact reversing starter, 1.5-9 A, 3 kW at 400 V, 24 V DC coil.

Rated current
6.5 A
Rated operational voltage
24 V DC
Motor power
3 kW
Poles
3P
Display
LED status (tripping, running)
EAN
3606485421216
Description

About the LZ2H

The Schneider Electric LZ2H6X5BD is a TeSys Hybrid ultra-compact reversing starter sized for 3-phase motors up to 3 kW at 400 V, combining forward/reverse hybrid power contacts with class 10A thermal overload protection in a 22.5 mm wide housing. The dial-adjustable thermal range runs 1.5-9 A, with a rated AC-53A current of 6.5 A, on a 24 V DC control circuit.

Certifications & Standards

  • IEC 60947-4-2
  • UL 60947-4-1

Selection Notes

The LZ2H6X5BD extends the LZ2H reversing starter range to 3 kW motors, four times the power of the 2X4 variants, while keeping the same 22.5 mm footprint and 24 V DC control input. Above 30 degC ambient the unit must be derated, unlike the 2X4 variants which run unrated to 70 degC — account for this when the panel has limited ventilation. For a Safe Torque Off version at the same power, use the LZ8H6X5BD.

Specification

Full specification

50 values · Last verified 30 Oct 2026

Main 13

Range TeSys
Product name TeSys Hybrid
Device short name LZ2H
Product or Component Type Reversing ultra-compact starter
Motor starter type Direct on line
Poles description 3P
[Ue] rated operational voltage 500 V AC
[Ie] rated operational current 6.5 A 500 V AC-53A, 9 A 500 V AC-51, 5 A 500 V AC-53A mounting side by side, 7 A 500 V AC-51 mounting side by side
Thermal protection adjustment range 1.5…9 A
Motor power kW 1.5 kW 220 V AC 0.65, 1.5 kW 230 V AC 0.65, 2.2 kW 380 V AC 0.65, 3 kW 400 V AC 0.65, 3 kW 415 V AC 0.65, 3 kW 440 V AC 0.65, 3 kW 500 V AC 0.65
Maximum Horse Power Rating 1 hp 200 V AC, 1.5 hp 230 V AC, 3 hp 460 V AC
[Uc] control circuit voltage 24 V DC
Thermal overload class Class 10A IEC 60947-4-2

Complementary 19

Auxiliary contact composition 1 C/O fault signalling
Control circuit voltage limits 19.2...30 V DC
Current consumption <= 40 mA 24 V DC
Reset Manual, Automatic reset, Electrical reset
Electrical durability 30 Mcycles
Maximum operating rate 120 cyc/mn AC-51 50 %, 6 cyc/mn AC-53A 50 %
Mounting Mode By clips
Mounting Support DIN rail
Connections - terminals screw clamp terminals 1 0.0003…0.004 in² (0.2…2.5 mm²) rigid, screw clamp terminals 1 0.0004…0.004 in² (0.25…2.5 mm²) flexible - with cable end, screw clamp terminals 1 0.0003…0.004 in² (0.2…2.5 mm²) flexible - without cable end
Tightening torque 4.4…5.3 lbf.in (0.5…0.6 N.m) flat Ø 2.5 mm screwdriver 0.1 in (3 mm)
Certifications CULus, CE
Standards IEC 60947-4-2, UL 60947-4-1
[Ui] rated insulation voltage 500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 6 kV
Pollution degree 2
Width 0.9 in (22.5 mm)
Height 3.9 in (99 mm)
Depth 4.5 in (114.5 mm)
Net Weight 7.5 oz (212 g)

Environment 4

IP degree of protection IP20
Protective treatment TC
Ambient air temperature for operation -13…86 °F (-25…30 °C) without derating, 86…158 °F (30…70 °C) with derating
Ambient Air Temperature for Storage -40…176 °F (-40…80 °C)
Show all 50 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LZ2H6X5BD
Type designation LZ2H
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606485421216

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin DE
Shipping weight 0.212 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
