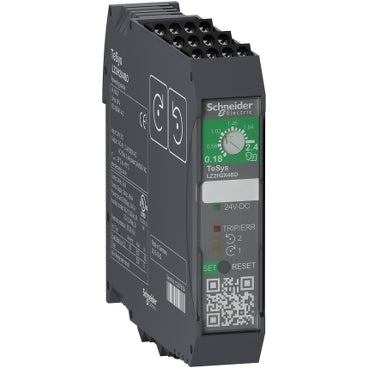

The Schneider Electric LZ2H2X4FU is a TeSys Hybrid ultra-compact reversing starter that combines forward/reverse hybrid power contacts with class 10A thermal overload protection in a 22.5 mm wide housing, for 3-phase motors up to 0.75 kW at 400 V. The dial-adjustable thermal range runs 0.18-2.4 A, and the control circuit accepts 110-230 V AC.
Pick the LZ2H2X4FU over the BD variant when the control rail is 110-230 V AC rather than 24 V DC — common on retrofits of older relay logic panels. Because the device dissipates heat differently on AC control power, its full-ambient operating range is narrower above 65 degC than the 24 V DC variant; check the derating table before mounting it in a hot enclosure. It otherwise shares the same current, power and thermal-class rating as the LZ2H2X4BD.
| Range | TeSys |
|---|---|
| Product name | TeSys Hybrid |
| Device short name | LZ2H |
| Product or Component Type | Reversing ultra-compact starter |
| Motor starter type | Direct on line |
| Poles description | 3P |
| [Ue] rated operational voltage | 500 V AC |
| [Ie] rated operational current | 2.4 A 500 V AC-51, 2.4 A 500 V AC-53A, 2.4 A 500 V AC-51 mounting side by side, 2.4 A 500 V AC-53A mounting side by side |
| Thermal protection adjustment range | 0.18…2.4 A |
| Motor power kW | 0.37 kW 220 V AC 0.65, 0.37 kW 230 V AC 0.65, 0.75 kW 380 V AC 0.65, 0.75 kW 400 V AC 0.65, 0.75 kW 415 V AC 0.65, 0.75 kW 440 V AC 0.65, 1.1 kW 500 V AC 0.65 |
| Maximum Horse Power Rating | 0.5 hp 200 V AC, 0.5 hp 230 V AC, 1 hp 460 V AC |
| [Uc] control circuit voltage | 110...230 V AC 50/60 Hz |
| Thermal overload class | Class 10A IEC 60947-4-2 |
| Auxiliary contact composition | 1 C/O fault signalling |
|---|---|
| Control circuit voltage limits | 85...253 V AC |
| Current consumption | <= 4 mA 110...230 V AC |
| Reset | Manual, Automatic reset, Electrical reset |
| Electrical durability | 30 Mcycles |
| Maximum operating rate | 120 cyc/mn AC-51 50 %, 6 cyc/mn AC-53A 50 % |
| Mounting Mode | By clips |
| Mounting Support | DIN rail |
| Connections - terminals | screw clamp terminals 1 0.0003…0.004 in² (0.2…2.5 mm²) rigid, screw clamp terminals 1 0.0004…0.004 in² (0.25…2.5 mm²) flexible - with cable end, screw clamp terminals 1 0.0003…0.004 in² (0.2…2.5 mm²) flexible - without cable end |
| Tightening torque | 4.4…5.3 lbf.in (0.5…0.6 N.m) flat Ø 2.5 mm screwdriver 0.1 in (3 mm) |
| Certifications | CULus, CE |
| Standards | IEC 60947-4-2, UL 60947-4-1 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Pollution degree | 2 |
| Width | 0.9 in (22.5 mm) |
| Height | 3.9 in (99 mm) |
| Depth | 4.5 in (114.5 mm) |
| Net Weight | 7.5 oz (212 g) |
| IP degree of protection | IP20 |
|---|---|
| Protective treatment | TC |
| Ambient air temperature for operation | -13…149 °F (-25…65 °C) without derating, 149…158 °F (65…70 °C) with derating |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Part number | LZ2H2X4FU |
|---|---|
| Type designation | LZ2H |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606485421070 |
| Warranty (in months) | 18 |
|---|
| Country of origin | DE |
|---|---|
| Shipping weight | 0.212 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LZ2H is 2.4 A.
The rated operational voltage of LZ2H is 110–230 V AC.
The rated motor power of LZ2H is 0.75 kW.
The tariff (HS) code on file for LZ2H is 85365080.
The EAN (GTIN) of LZ2H is 3606485421070.
LZ2H ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
